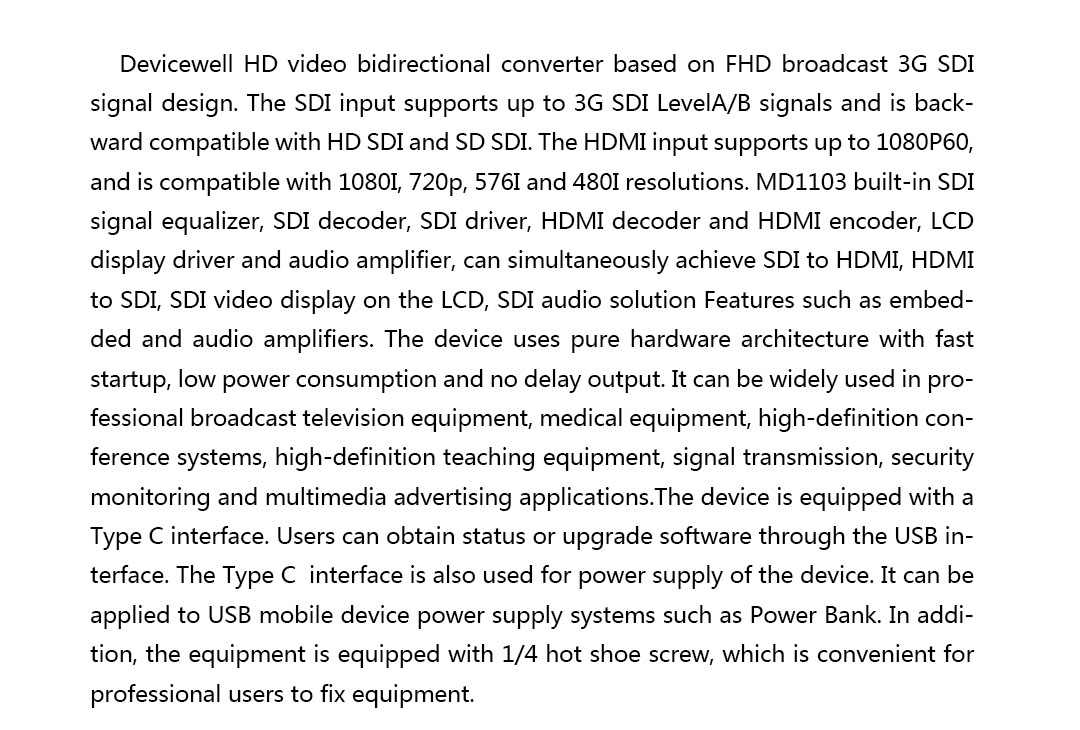

Devicewell HD video bidirectional converter based on FHD broadcast 3G SDI signal design. The SDI input supports up to 3G SDI LevelA/B signals and is backward compatible with HD SDI and SD SDI. The HDMI input supports up to 1080P60, and is compatible with 1080I, 720p, 576I and 480I resolutions. MD1103 built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, LCD display driver and audio amplifier, can simultaneously achieve SDI to HDMI, HDMI to SDI, SDI video display on the LCD, SDI audio solution Features such as embedded and audio amplifiers. The device uses pure hardware architecture with fast startup, low power consumption and no delay output. It can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.The device is equipped with a Type C interface. Users can obtain status or upgrade software through the USB interface. The Type C  interface is also used for power supply of the device. It can be applied to USB mobile device power supply systems such as Power Bank. In addition, the equipment is equipped with 1/4 hot shoe screw, which is convenient for professional users to fix equipment.

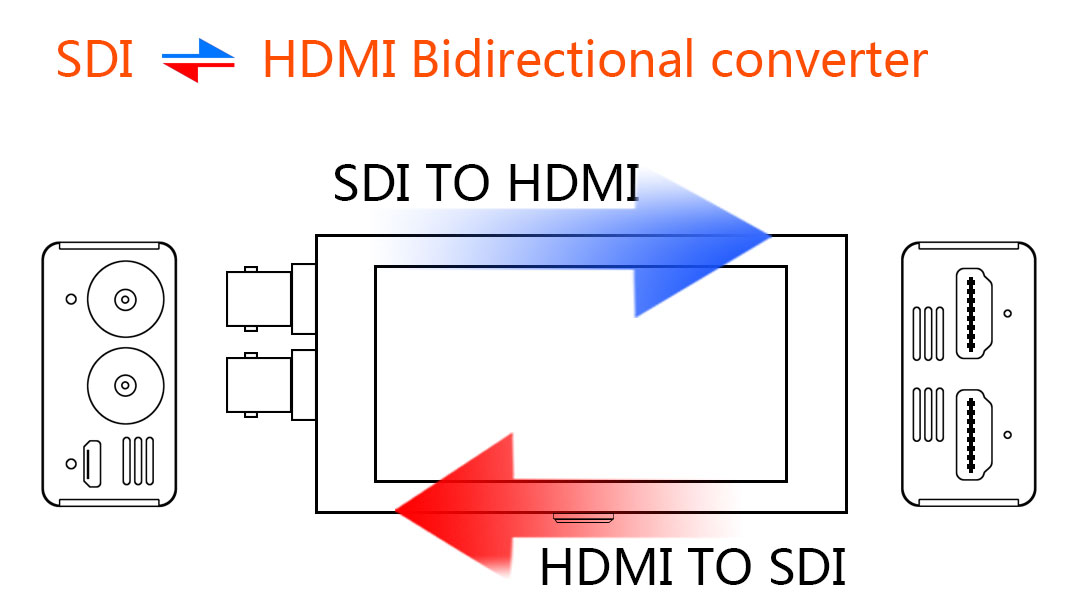

SDI-HDMI Bidirectional converter

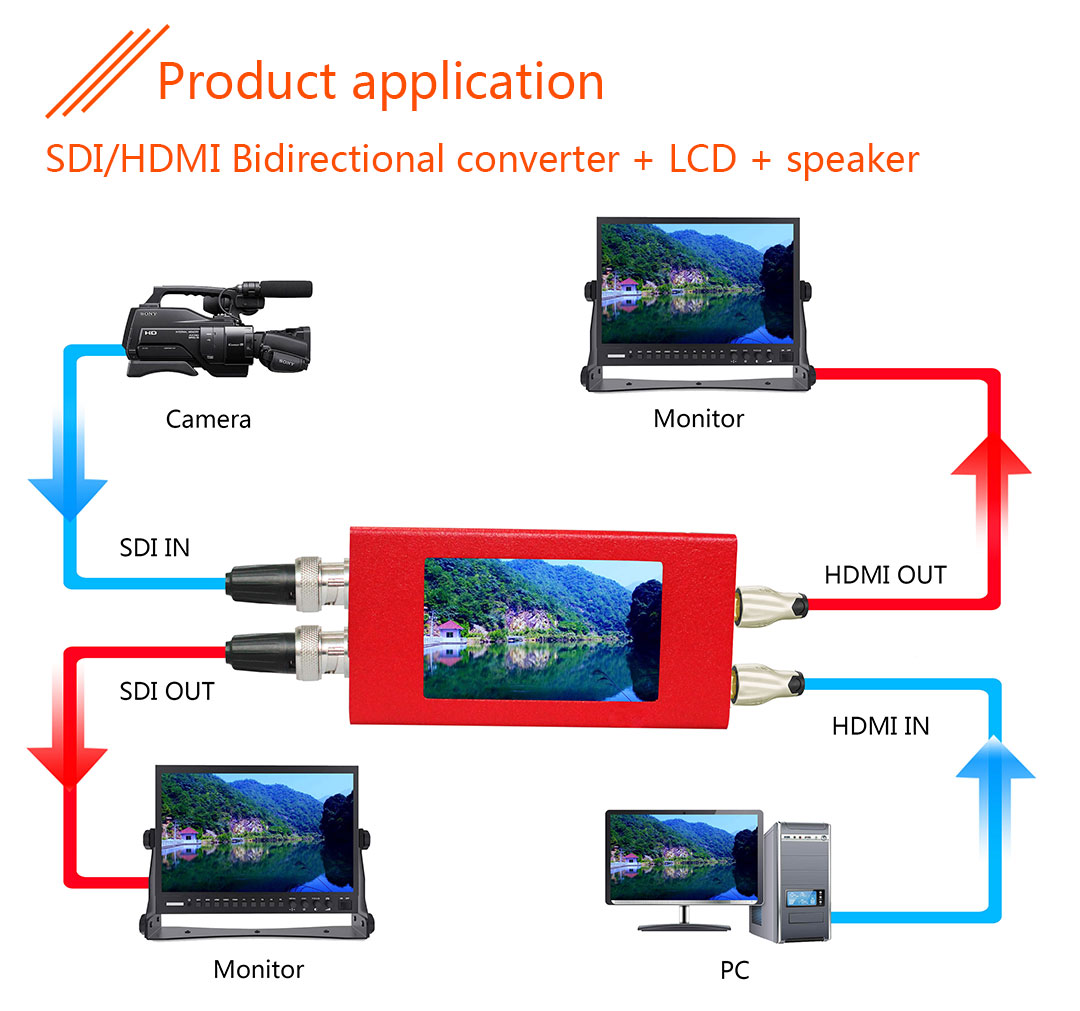

Product application

SDI/HDMI Bidirectional converter + LCD + speaker

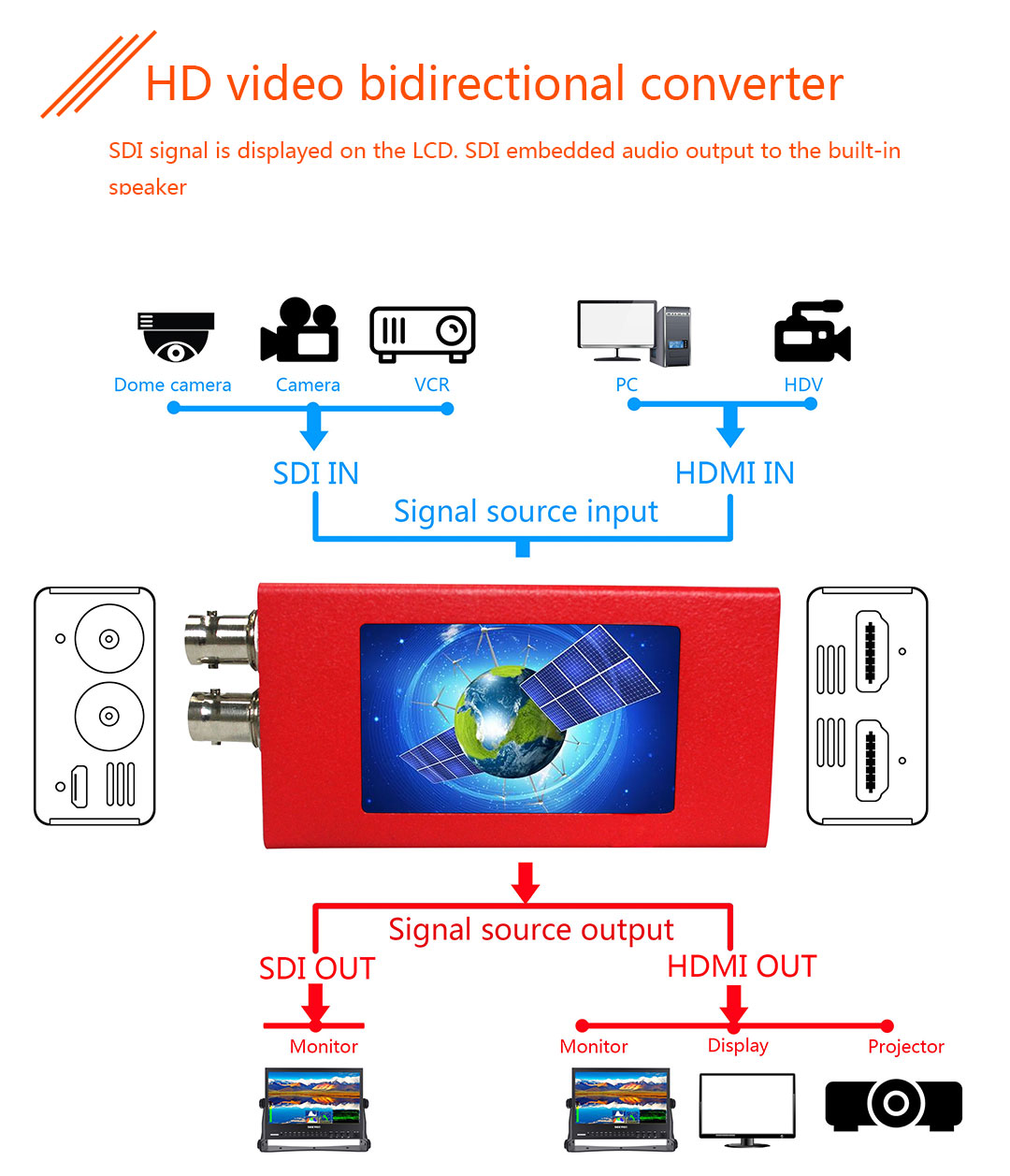

HD video bidirectional converter

SDI signal is displayed on the LCD. SDI embedded audio output to the built-in speaker

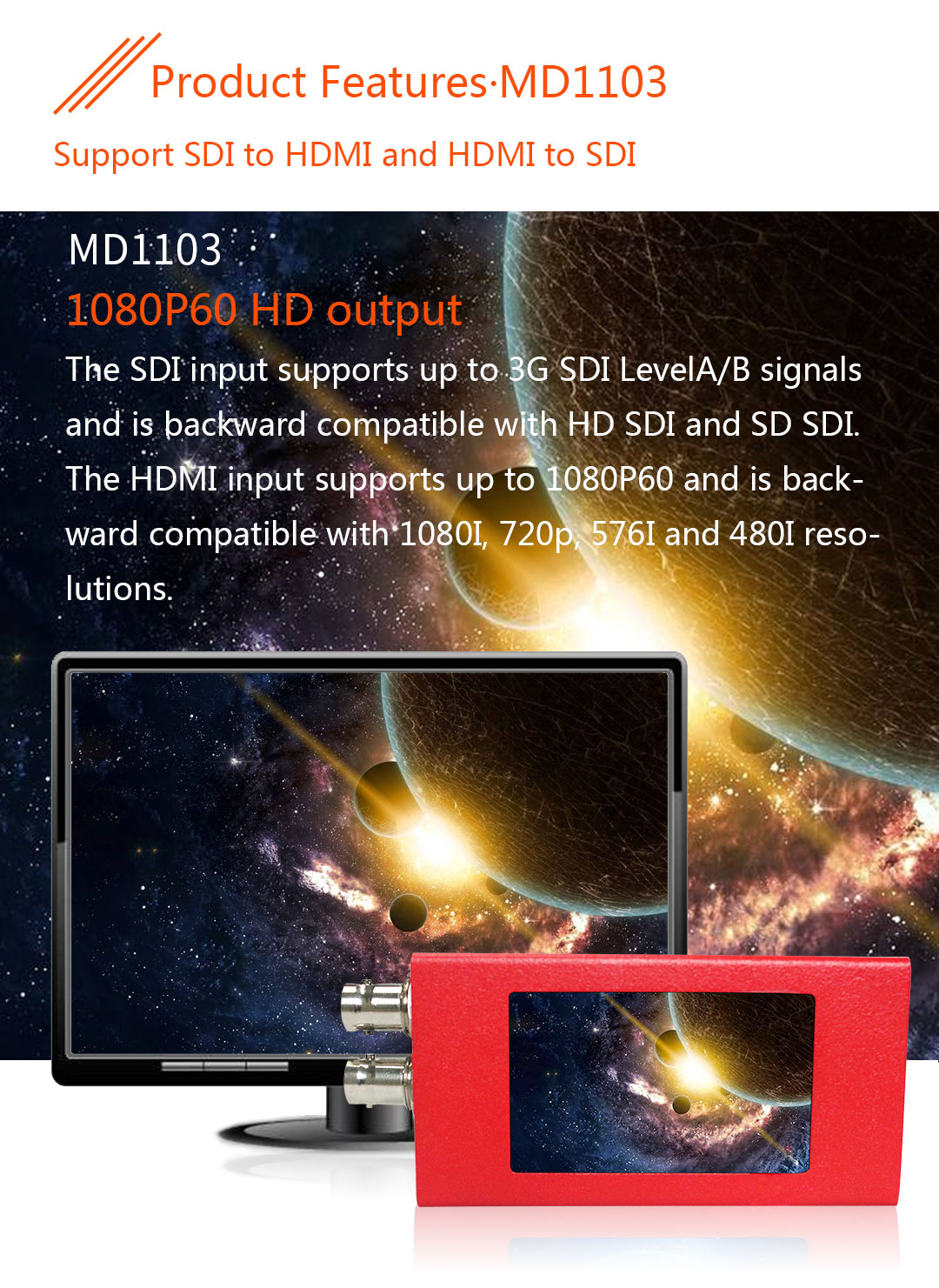

Product Features MD1103

Support SDI to HDMI and HDMI to SDI

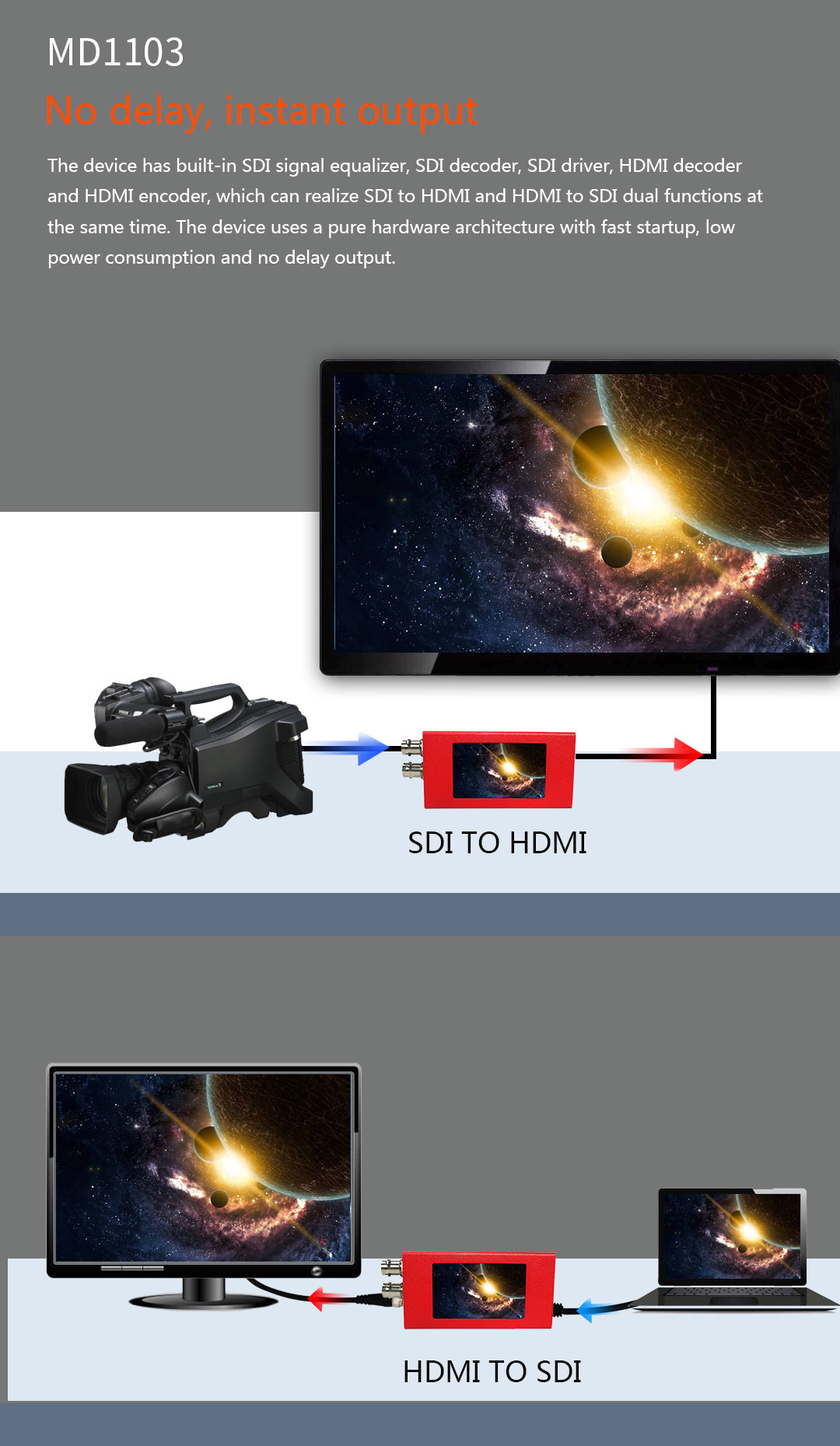

MD1103 No delay, instant output

The device has built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, which can realize SDI to HDMI and HDMI to SDI dual functions at the same time. The device uses a pure hardware architecture with fast startup, low power consumption and no delay output.

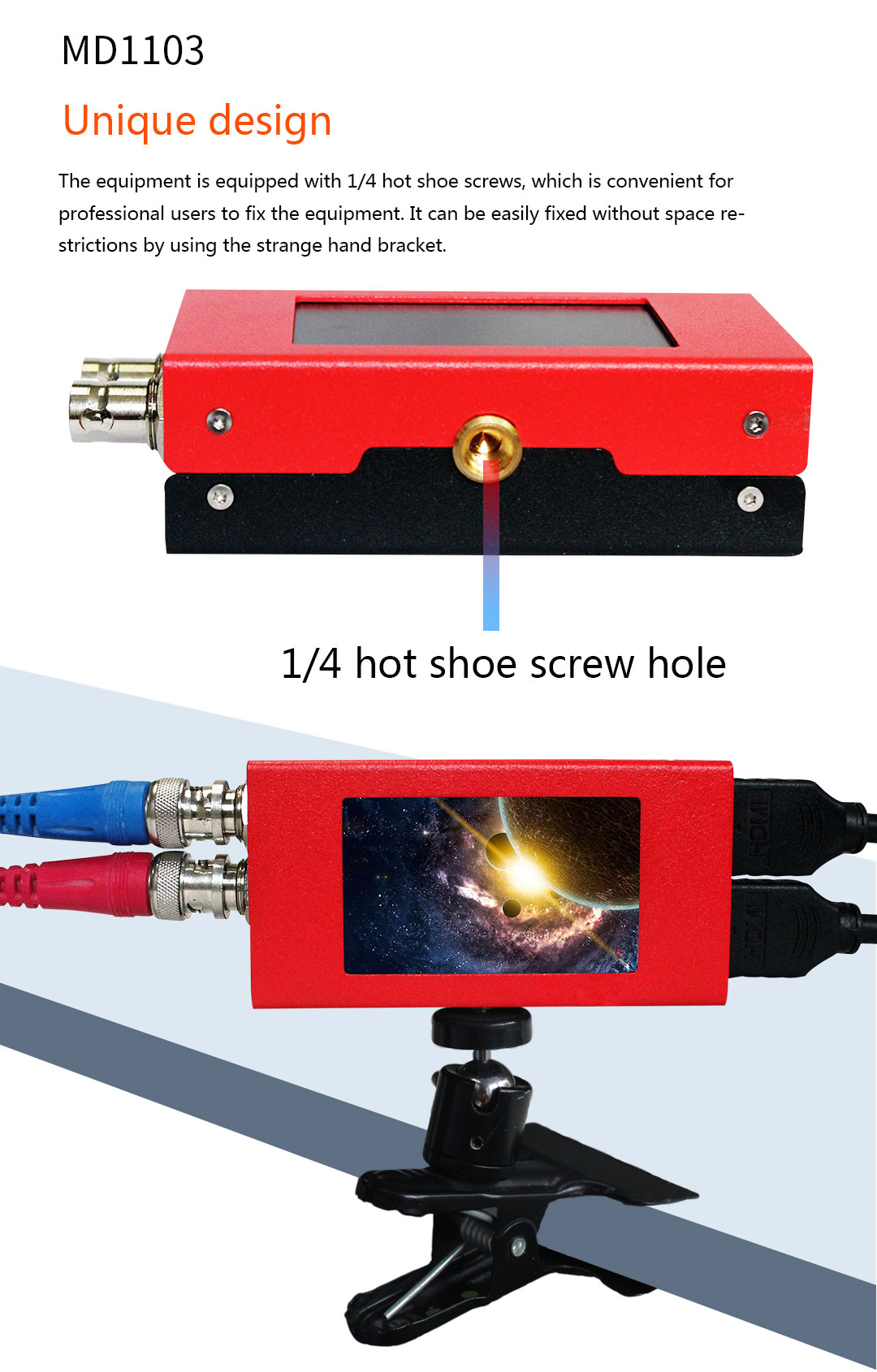

MD1103 Unique design

The equipment is equipped with 1/4 hot shoe screws, which is convenient for professional users to fix the equipment. It can be easily fixed without space restrictions by using the strange hand bracket.

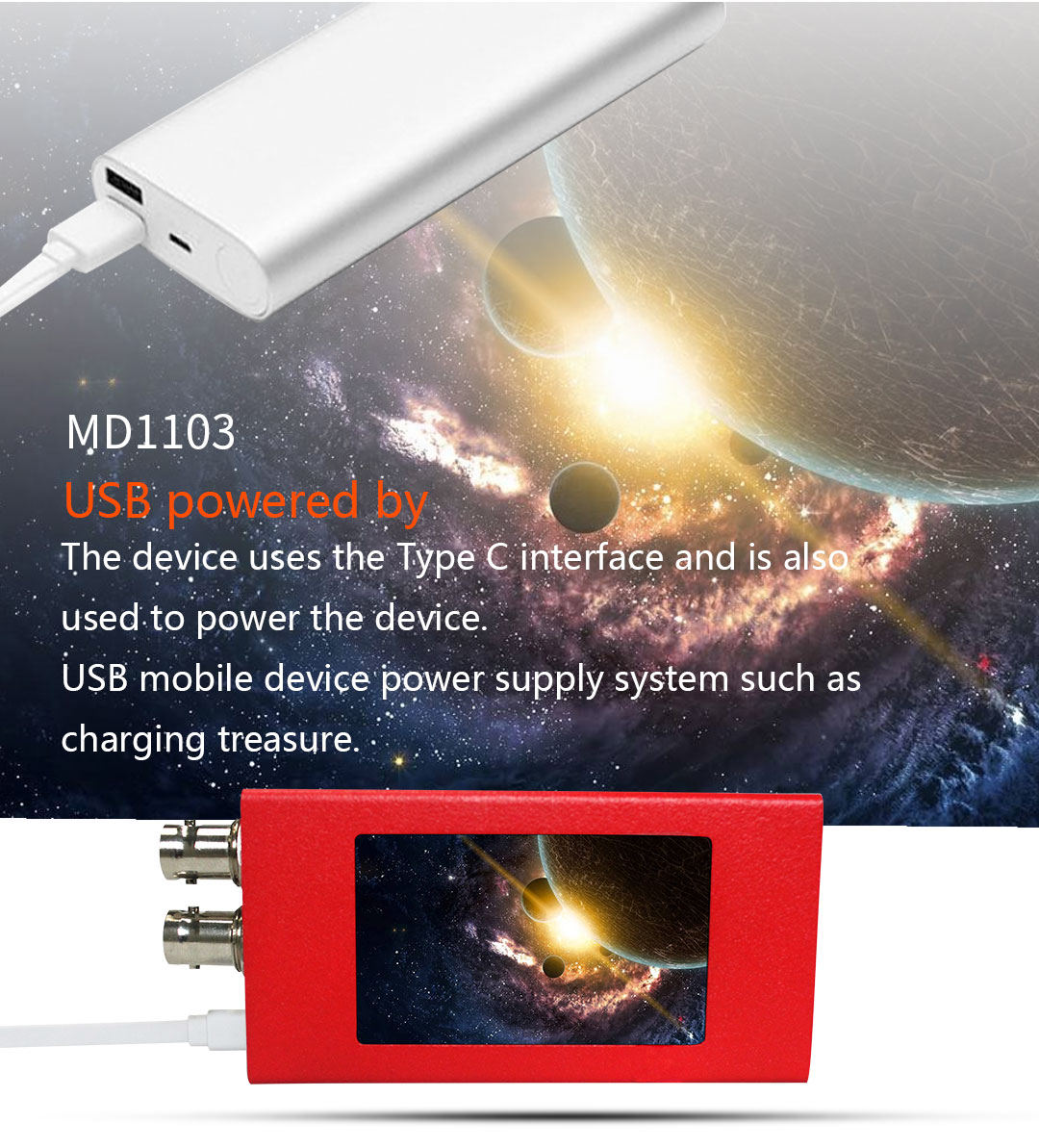

MD1103 USB powered by

The device uses the Type C interface and is also used to power the device. USB mobile device power supply system such as charging treasure.

MD1103 Application

Can be widely used in professional broadcast television equipment, medical equipment, HD conference systems, High-definition teaching equipment, signal switching, security monitoring and multimedia advertising application.

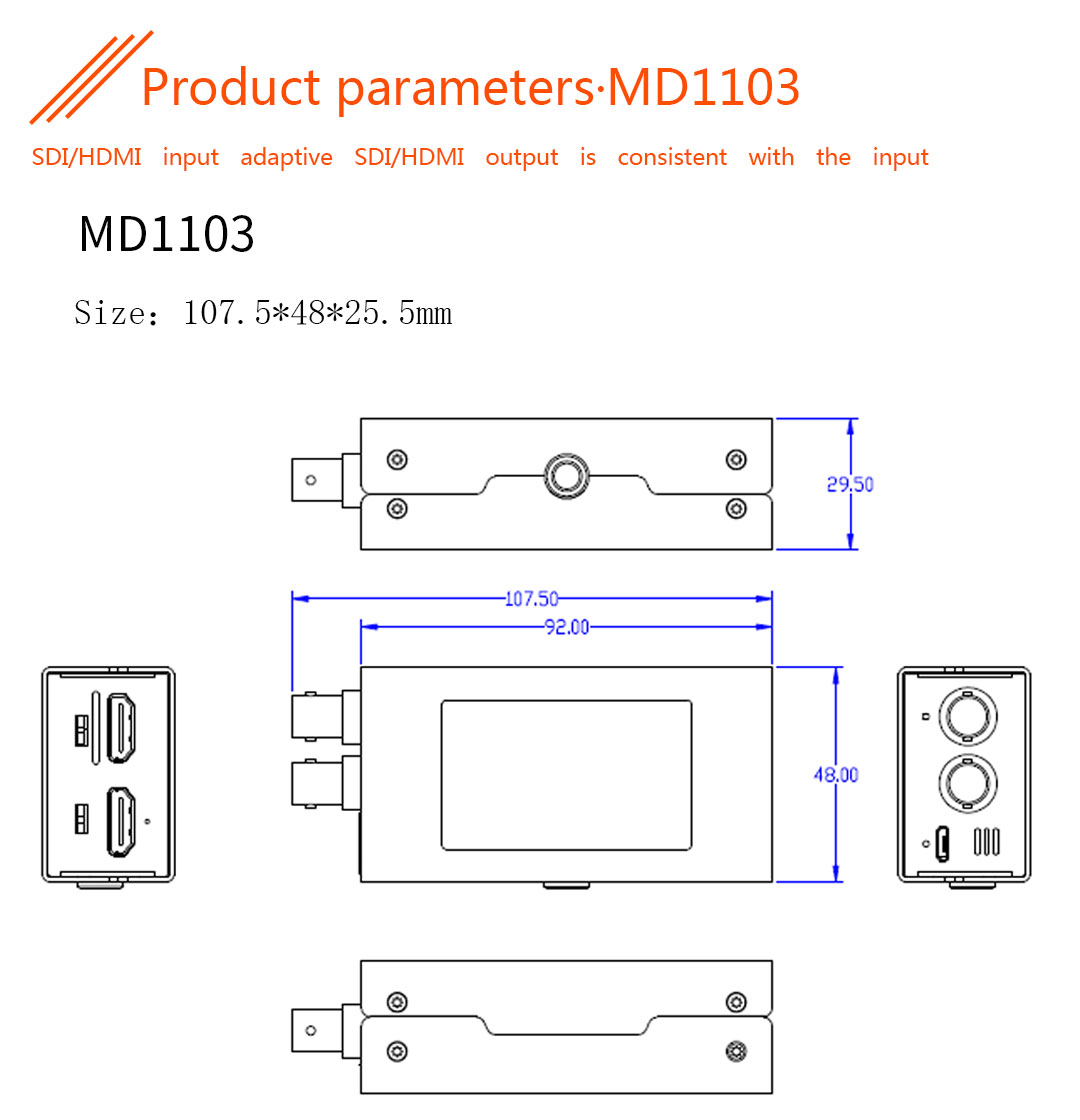

Product parameters·MD1103

SDI/HDMI input adaptive SDI/HDMI output is consistent with the input

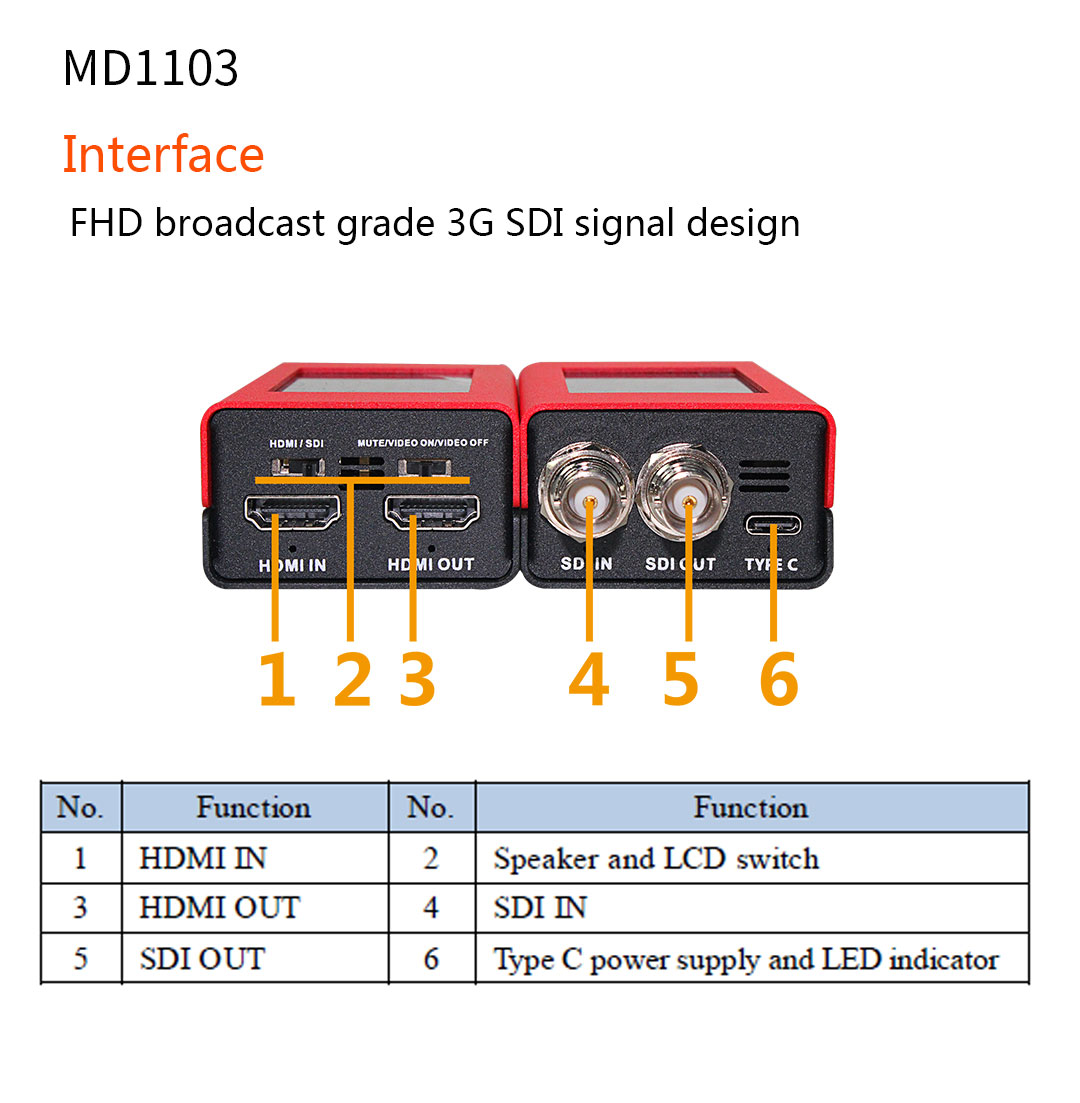

MD1103 Interface

FHD broadcast grade 3G SDI signal design

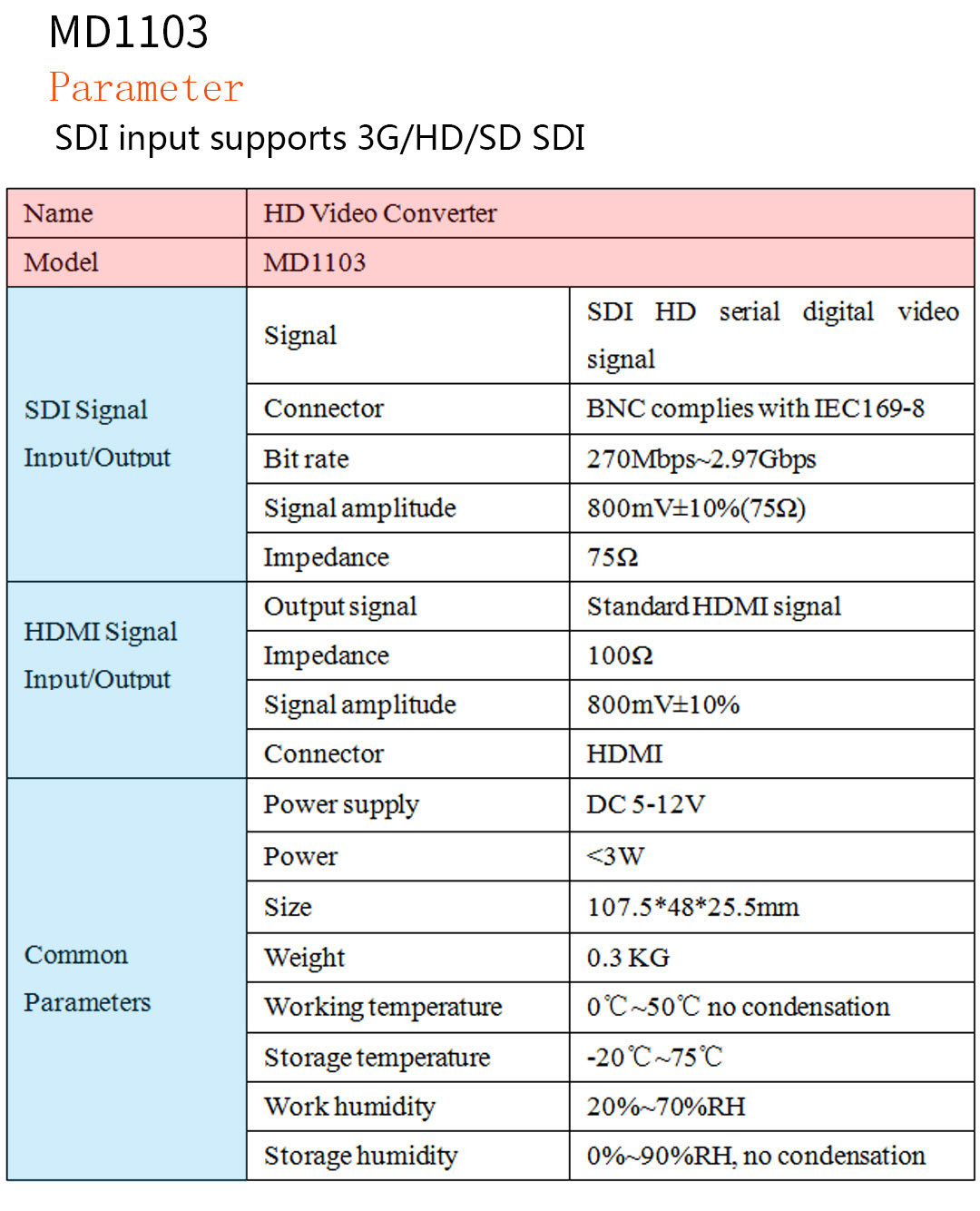

MD1103 Parameter

SDI input supports 3G/HD/SD SDI





Downloading the instructions of the  MD1103 SDI/HDMI BIDI Converter of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	MD1103 Specification download	1.0	Sep.12, 2024
2	MD1103 Photos download	1.0	Sep. 12, 2024
3	Others
