 DeviceWell 4K-level signal converter PD2021 is a 4K-level signal conversion device designed based on broadcast-level single-link 12G HDMI signals. The device input supports a single link 12G HDMI signal, a converter that converts HDMI to 2 SDI signals, the highest resolution supports 3840X2160P60, and is backward compatible; DC12V DC power supply is provided.

Functional Diagram

Product Features

◆ Support 1 HDMI to 2 SDI output

◆ Input and output resolution auto adaptive, direct output, up to 12G/4K60;

◆ DC12V power supply system

Interface Description



1.SDI OUT        2.SDI OUT      3.USB interface        4.Dial code           5.12V power supply        6.HDMI IN



SDI to HDMI Function Description

PD2021 supports HDMI to 2-channel SDI straight-through output; HDMI input supports 12G/6G/3G/HD signal; input resolution auto adaptive

 The HDMI input signals are supported as follows:
12G
6G
3G
HD

Product Parameters

Name

12G HDMI Converter

Model

PD2021

HDMI Signal Input

Input signal

HDMI video signal

Connector

HDMI

Signal amplitude

800mV±10%(100Ω)

Impedance

100Ω

SDI Signal Output

Output signal

1.5G/3G/6G/12G signal

Rate

270Mbps~12Gbps

Signal amplitude

800mV±10%

Connector

BNC comply IEC169-8 standard

Impedance

75Ω

Signal output

Output signal

1.5G/3G/6G/12G signal

Rate

270Mbps~12Gbps

Signal amplitude

800mV±10%

Connector

BNC comply IEC169-8 standard

Impedance

75Ω

Common Parameters

Power

DC 5V

Size

92*48*25.5mm

Control panel

No

Working temperature

0℃~50℃ no condensation

Storage temperature

-20℃~75℃

Work humidity

20%~70%RH

Storage humidity

0%~90%RH, no condensation

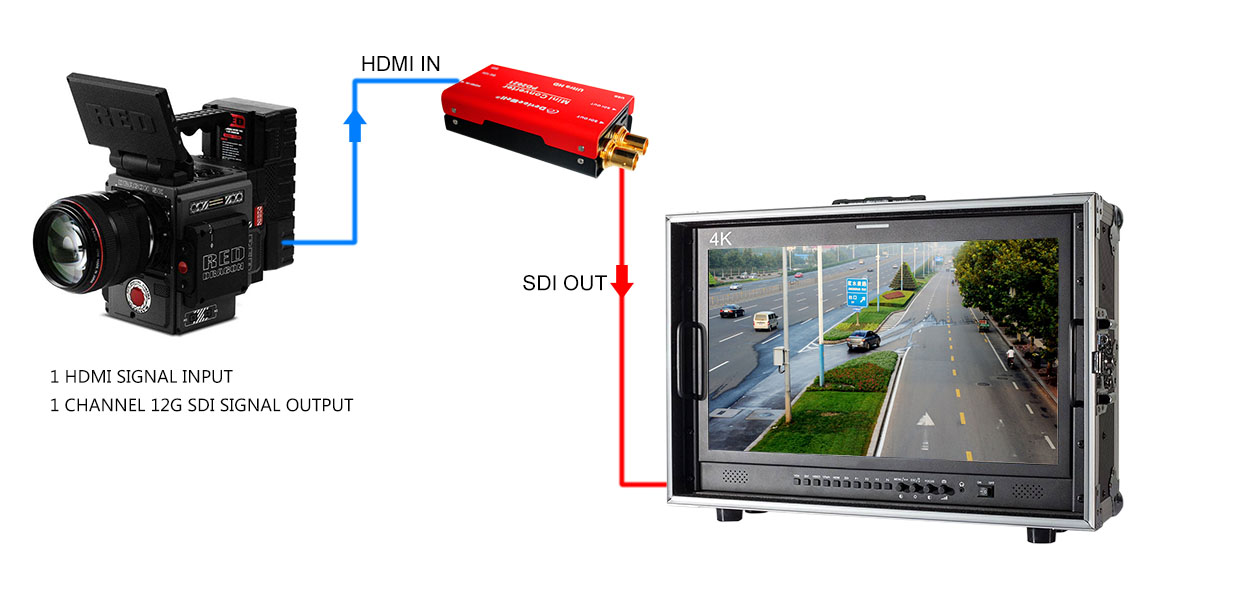

Application diagram

PD2021 manual download
