The DeviceWell 4K signal converter, which is the conversion equipment based on

design of 4K signal of broadcast single-link 12G SDI signal. The device input supports

up to single-link 12G SDI signals, and is compatible with single-link 6G SDI signals

and single-link signals below 3G. The device has built-in SDI signal equalization, serial

clock recovery/line driver, and supports 12G SDI down conversion to 3G SDI signal

output. At the same time, the device has built-in HDMI encoder, which supports 4K

signal down conversion to full HD HDMI signal output. The device's SDI input signal

frequency is automatically adapted and no additional settings are required. It can be

applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, and is

especially suitable for down conversion applications of broadcast super high definition

digital signals.

MD2092

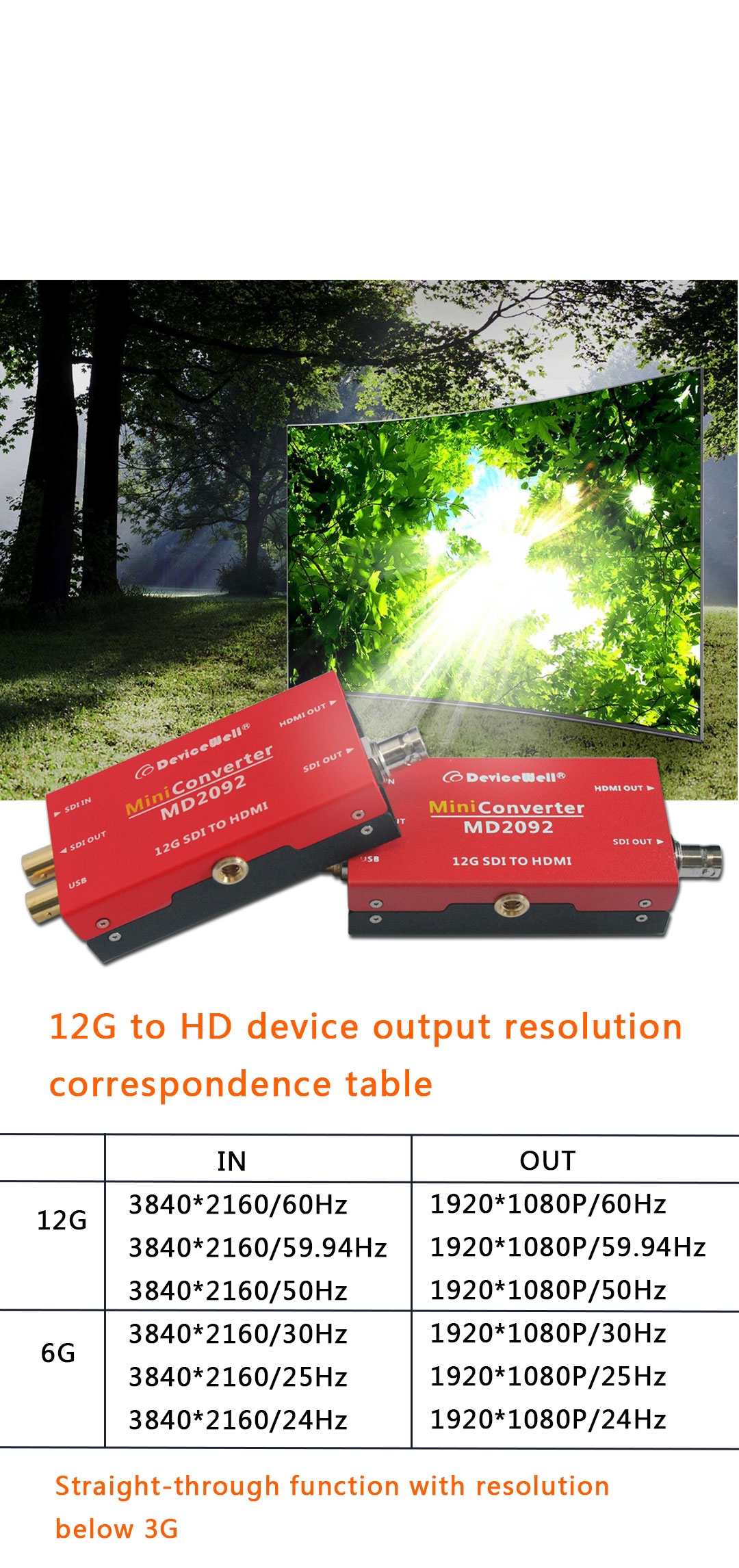

Make the control pixel picture more delicate

the conversion equipment based on design of 4K signal of broadcast single-link 12G SDI

signal.The highest resolution supports 3840*2160/60Hz The picture is more delicate and

the texture is stronger

MD2092

USB power supply design stable and not black

screen

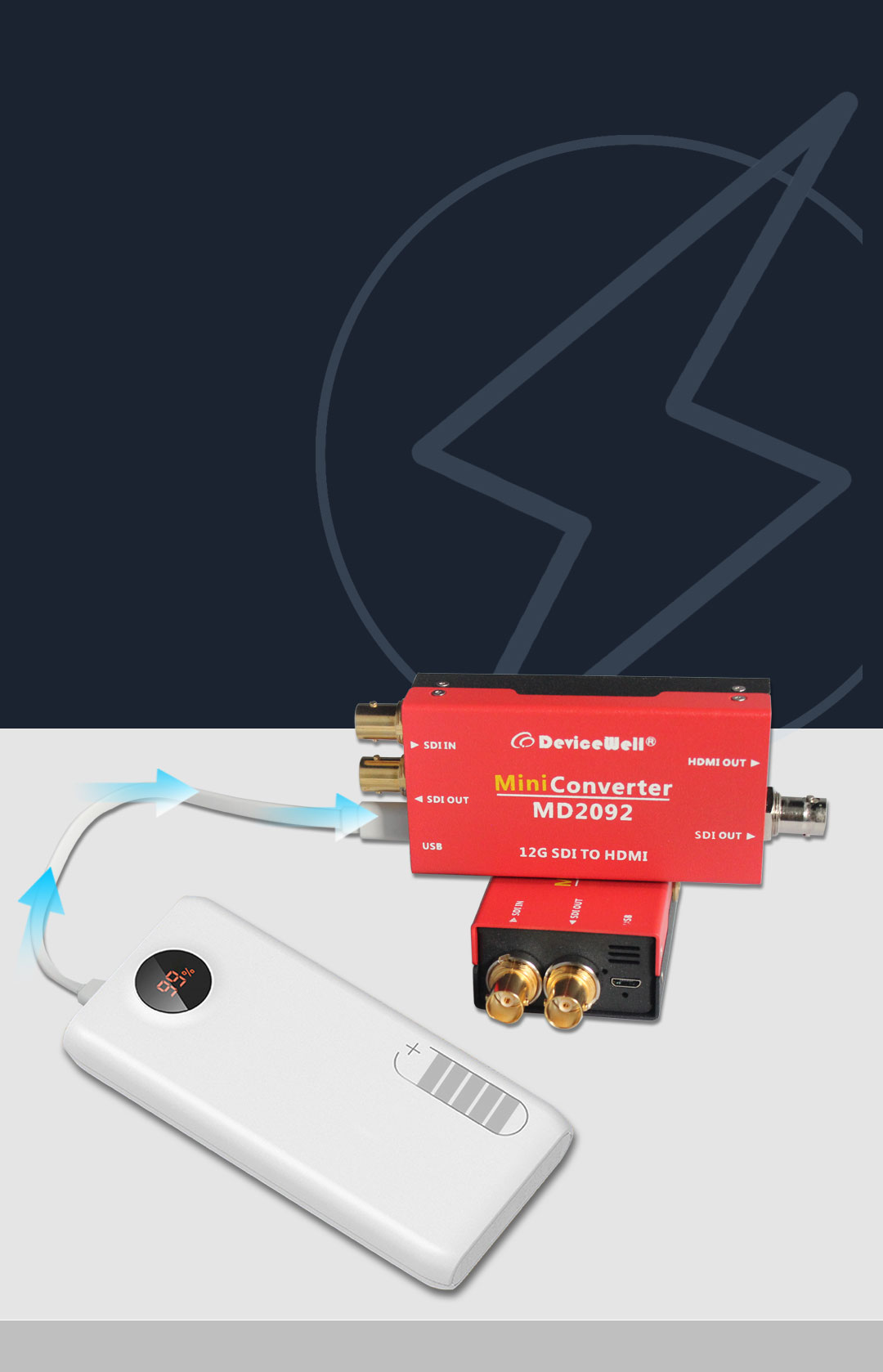

The device is powered by MicroUSB, which can be applied to the USB device power

supply system and supports mobile power supply such as charging treasure.

MD2092

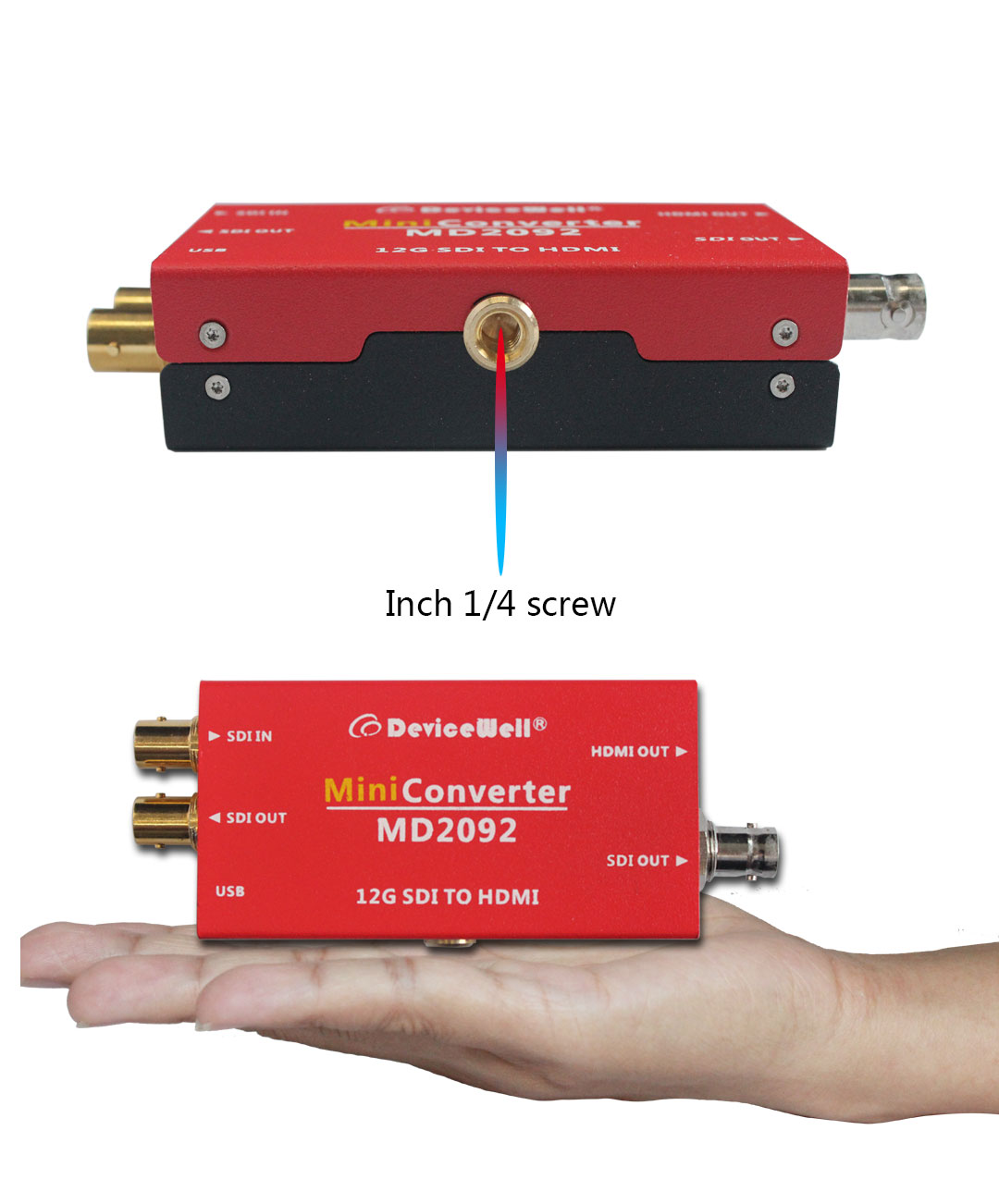

Unique design, built anywhere

MD2092

Application diversification

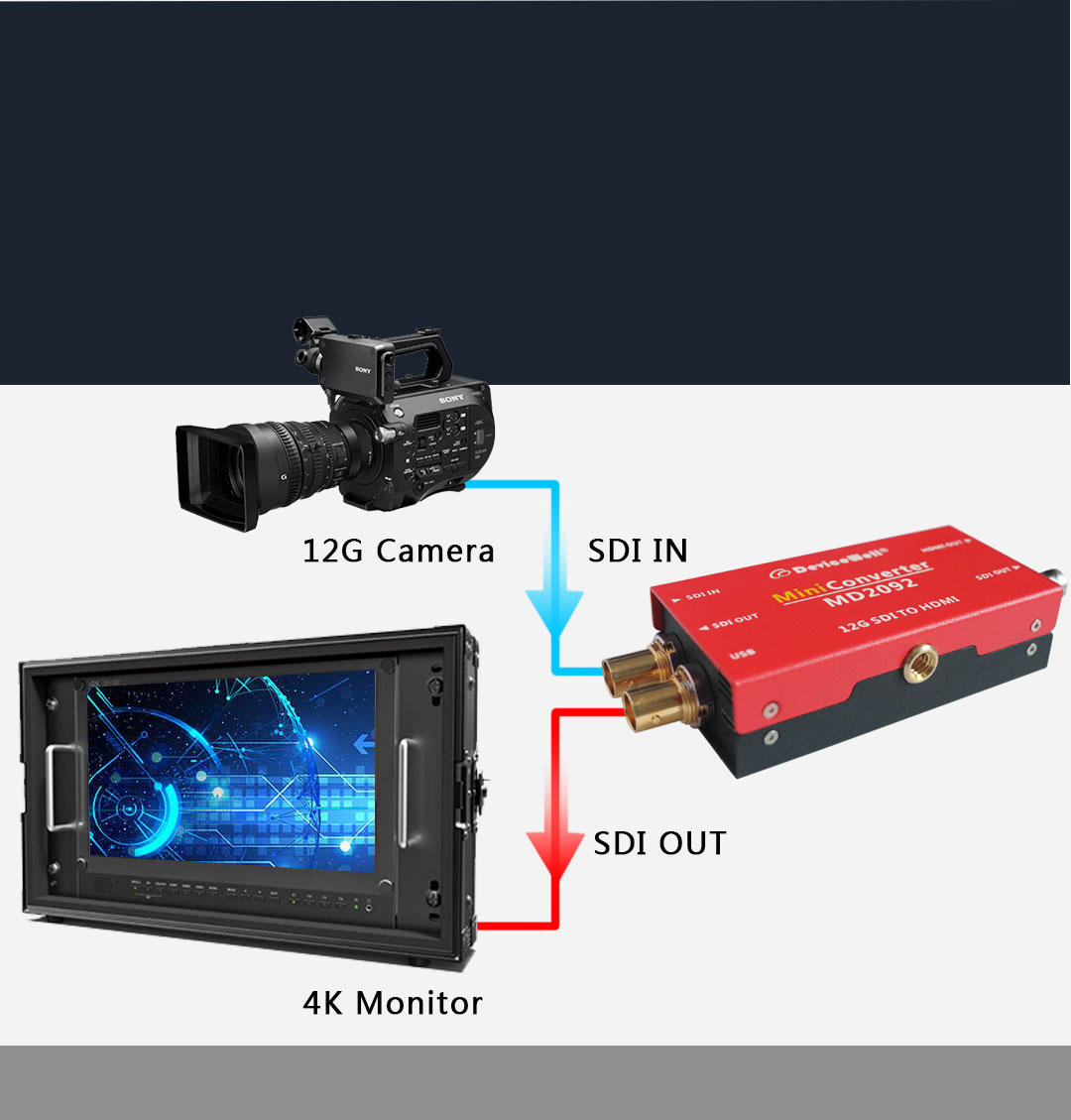

Application 1：1Channel 12G SDI Signal Input

                       1Channel 12G SDI Signal Output

MD2092

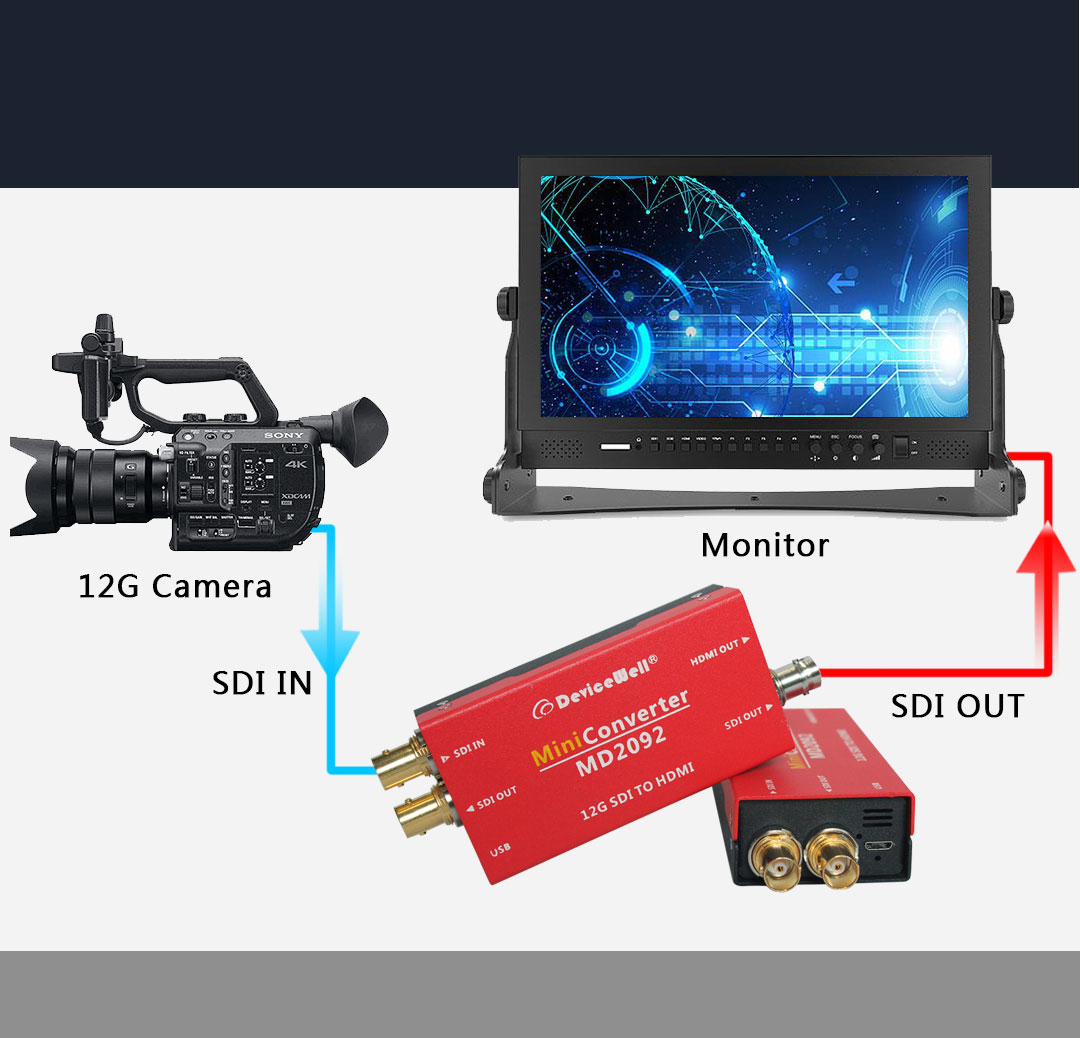

Application 2：1Channel 12G SDI Signal Input

                       1Channel 3G SDI Signal Output

MD2092

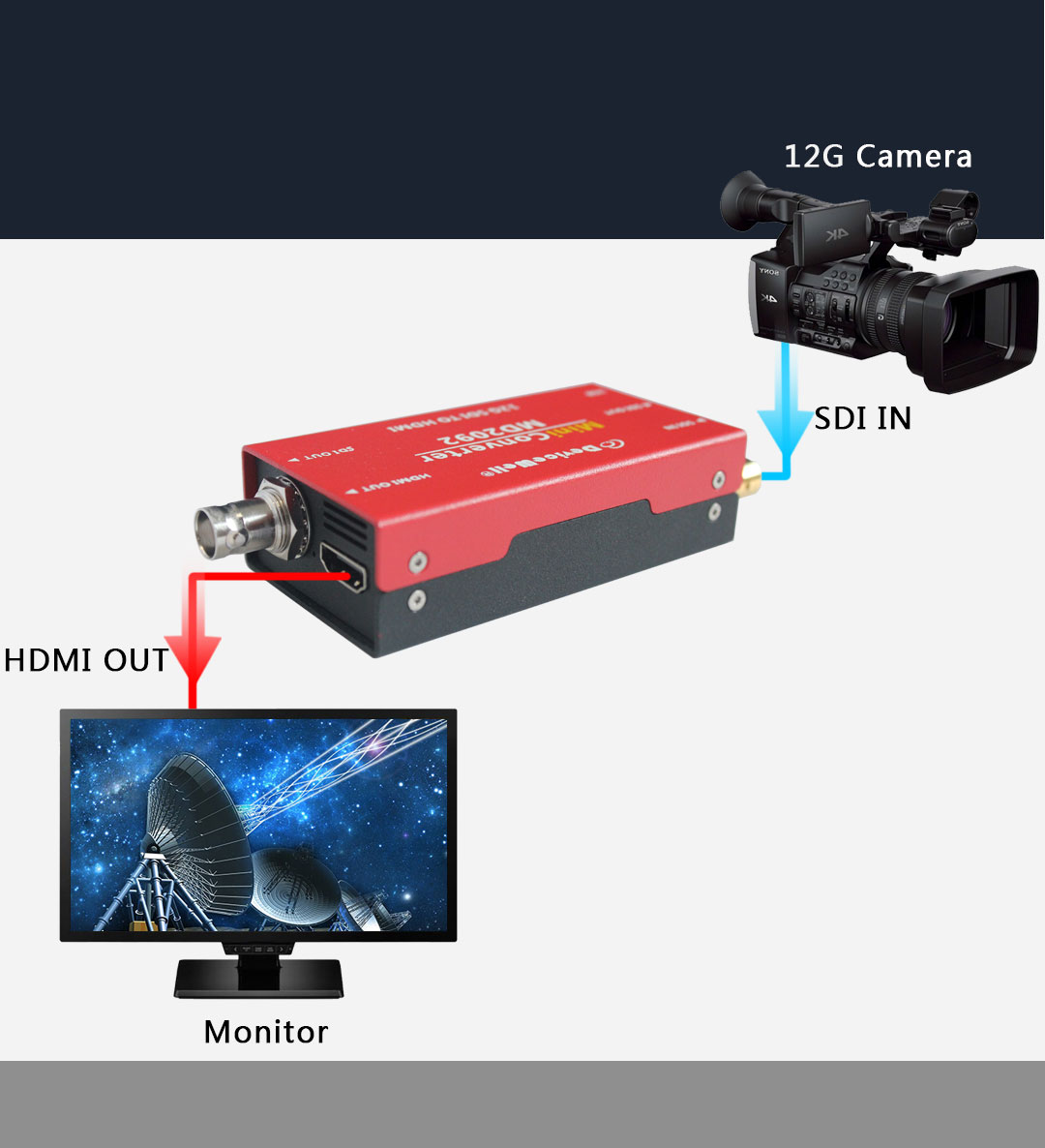

Application 3: 1Channel 12G SDI Signal Input

                      1Channel FHD HDMI Signal Output

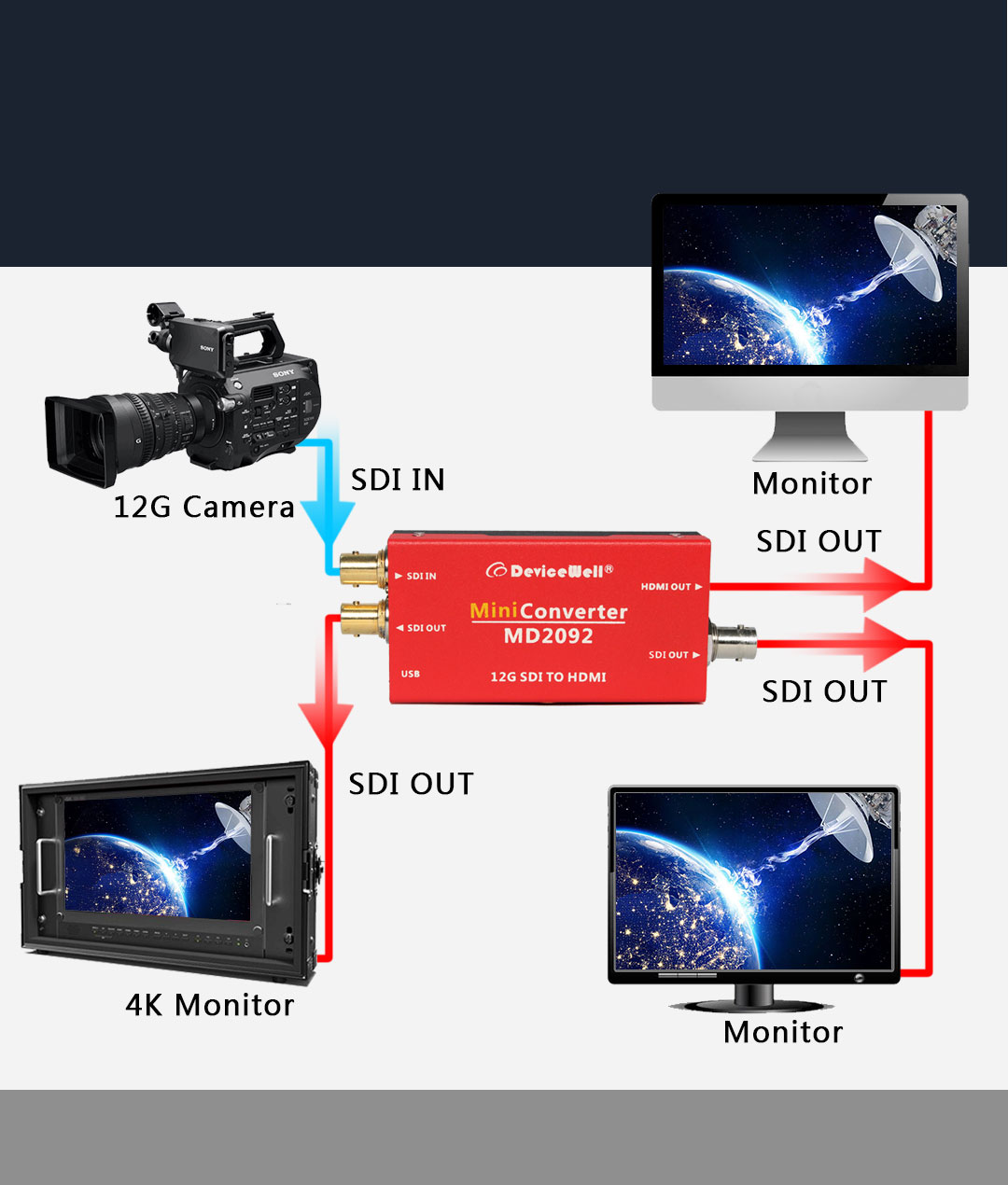

Application 4：Input：1Channel 12G SDI Signal Input

                       Output：1Channel 12G SDI OUT

                                    1Channel 3G SDI OUT

                                    1Channel FHD HDMI OUT

MD2092

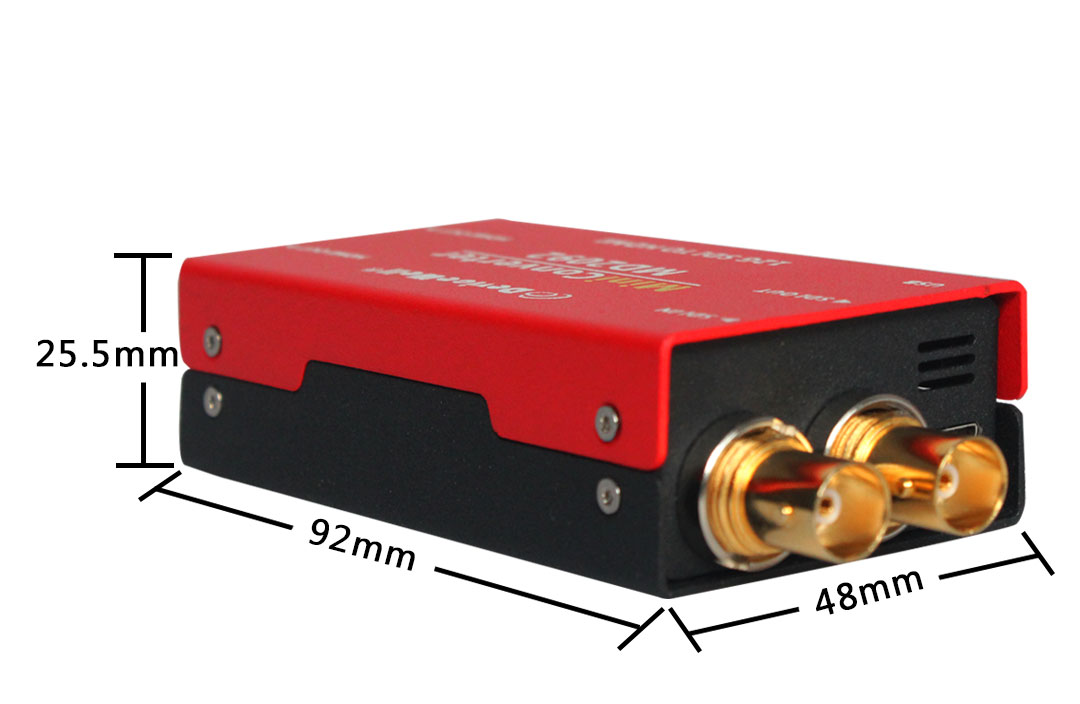

Size：92*48*25.5mm

MD2092

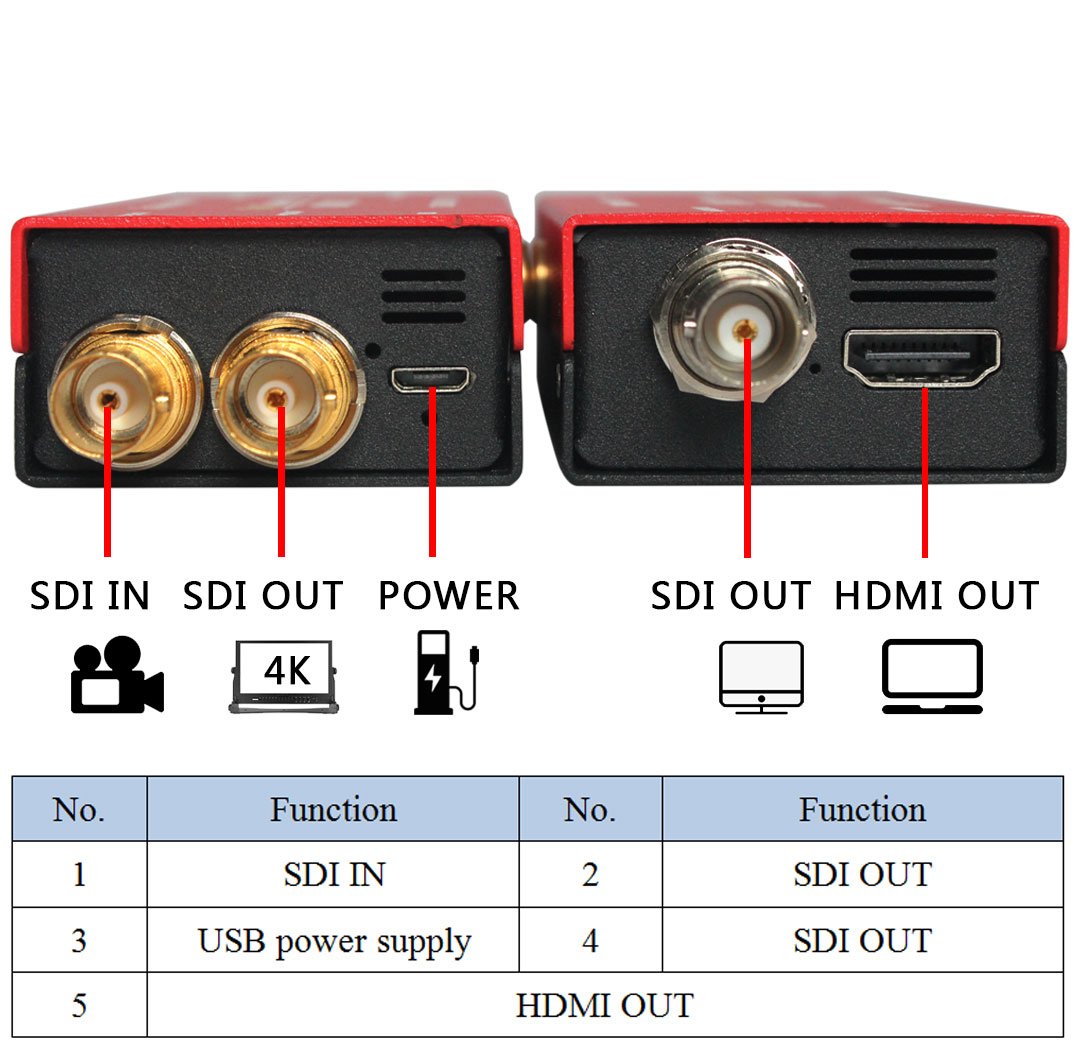

Interface introduction

MD2092

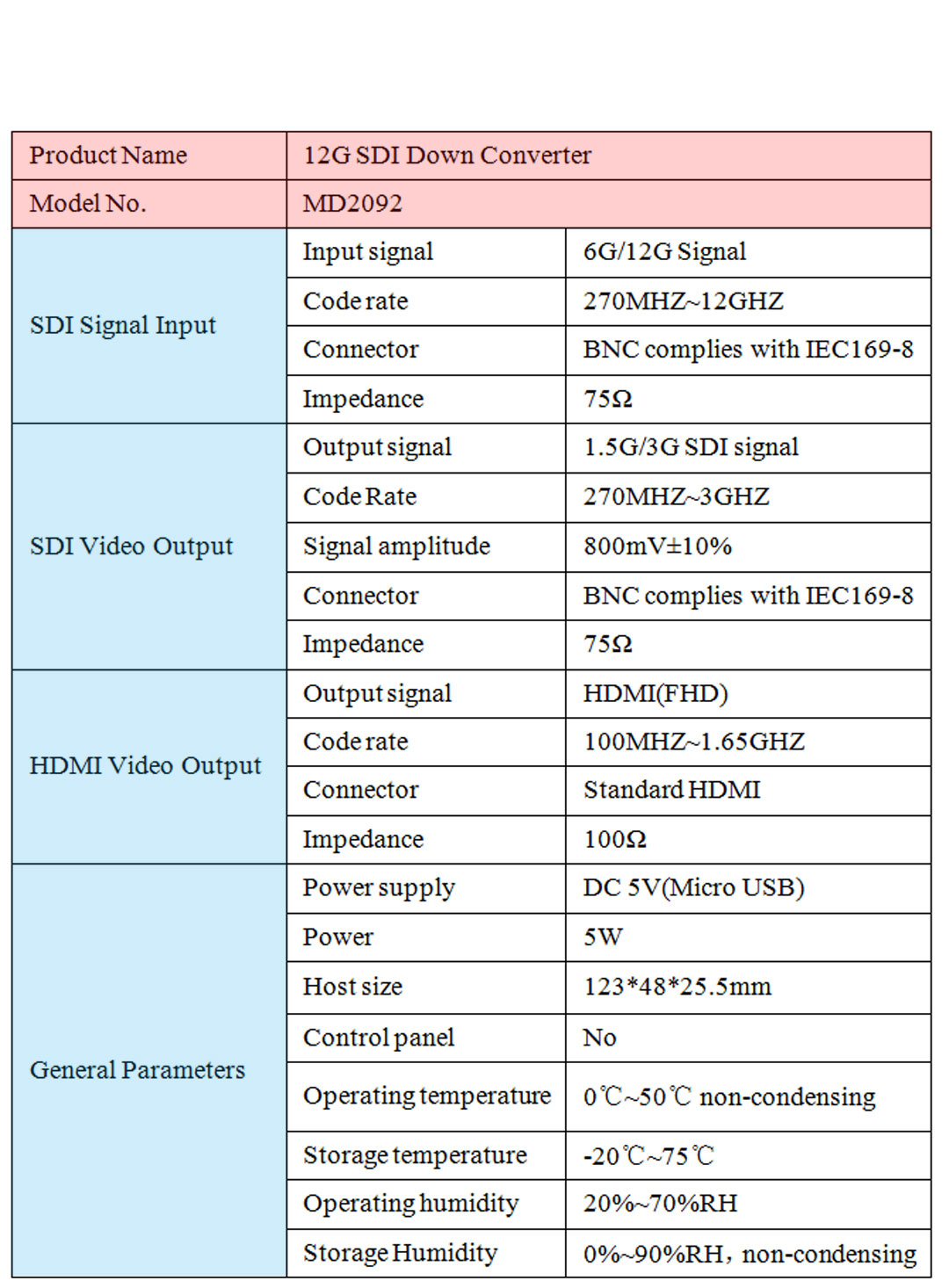

Parameter introduction
