SDI/HDMI BIDI Converter

Devicewell HD video bidirectional converter based on FHD broadcast 3G SDI signal design. The SDI input supports up to 3G SDI LevelA/B signals and is backward compatible with HD SDI and SD SDI. The HDMI input supports up to 1080P60, and is compatible with 1080I, 720, 576I and 480I resolutions. MD1003 built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, can achieve SDI to HDMI and HDMI to SDI dual functions. The device uses pure hardware architecture with fast startup, low power consumption and no delay output. It can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.

1080P60 HD output  Converter

The SDI input supports up to 3G SDI LevelA/B signals and is backward compatible with HD SDI and SD SDI. The HDMI input supports up to 1080P60, and is compatible with 1080I,  720, 576I and 480I resolutions.

No Delay Output SDI/HDMI BIDI Converter

MD1003 built-in SDI signal equalizer, SDI decoder, SDI driver, HDMI decoder and HDMI encoder, can achieve SDI to HDMI and HDMI to SDI dual functions. The device uses pure hardware architecture with fast startup, low power consumption and no delay output.

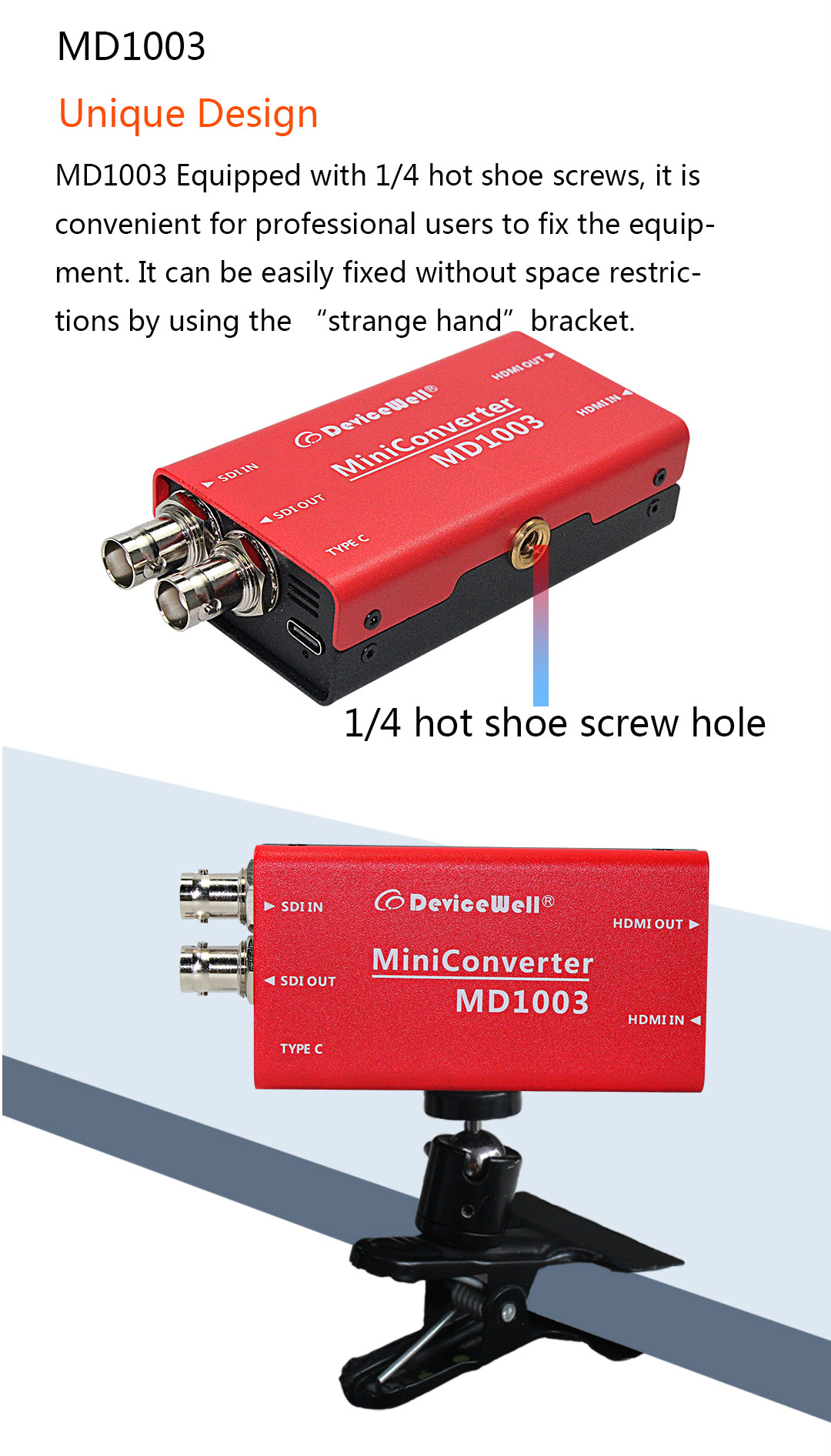

1/4 hot shoe screw hole SDI/HDMI BIDI Converter

Unique Design，MD1003 Equipped with 1/4 hot shoe screws, it is convenient for professional users to fix the equipment. It can be easily fixed without space restrictions by using the “strange hand”bracket.

Type C Powered SDI/HDMI BIDI Converter

The Type C interface is also used for power supply of the device. It can be applied to USB mobile device power supply systems such as power bank.

Wide applications SDI/HDMI BIDI Converter

MD1003 can be widely used in professional broadcast television equipment, medical equipment, high-definition conference systems, high-definition teaching equipment, signal transmission, security monitoring and multimedia advertising applications.

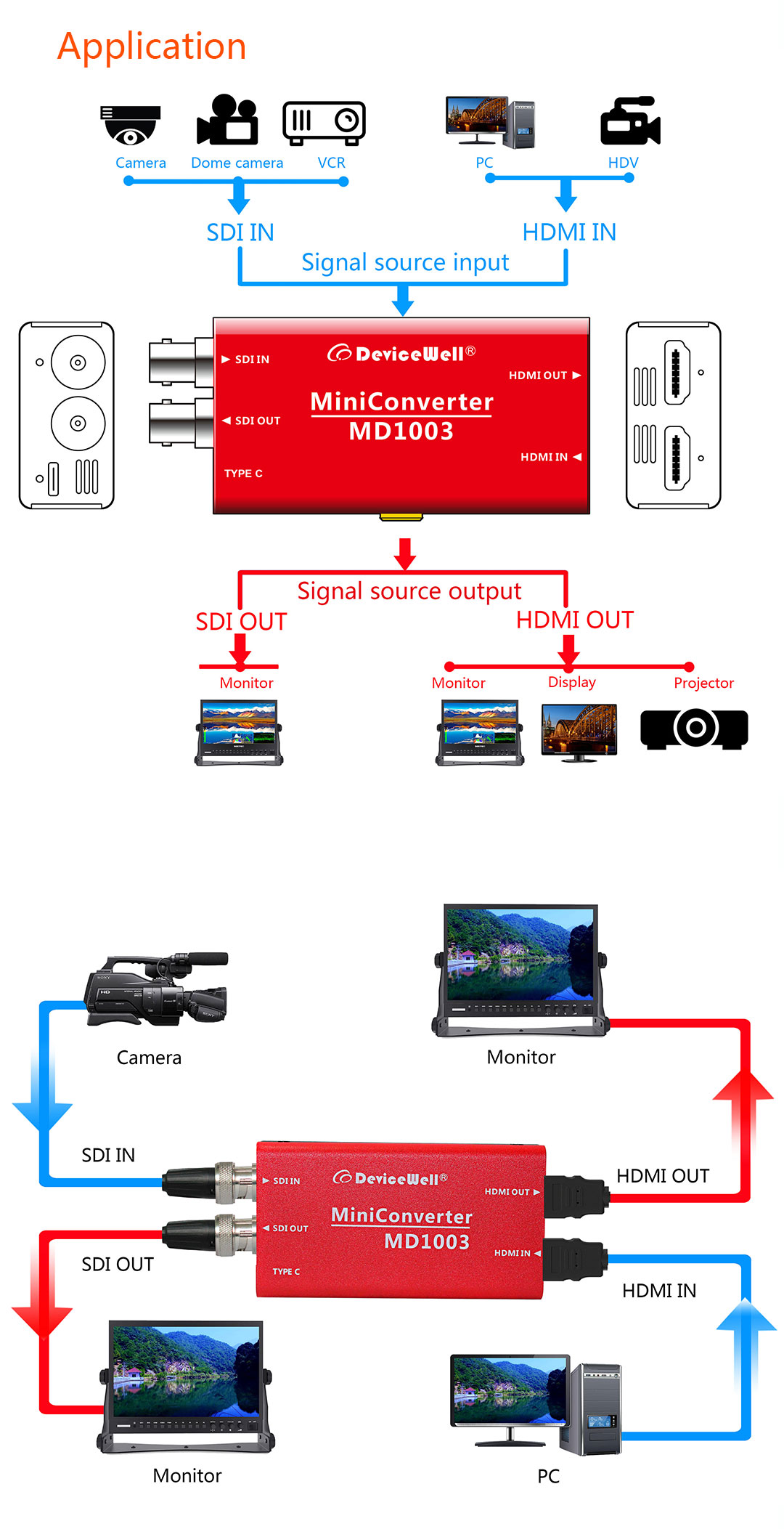

SDI/HDMI BIDI Converter Application

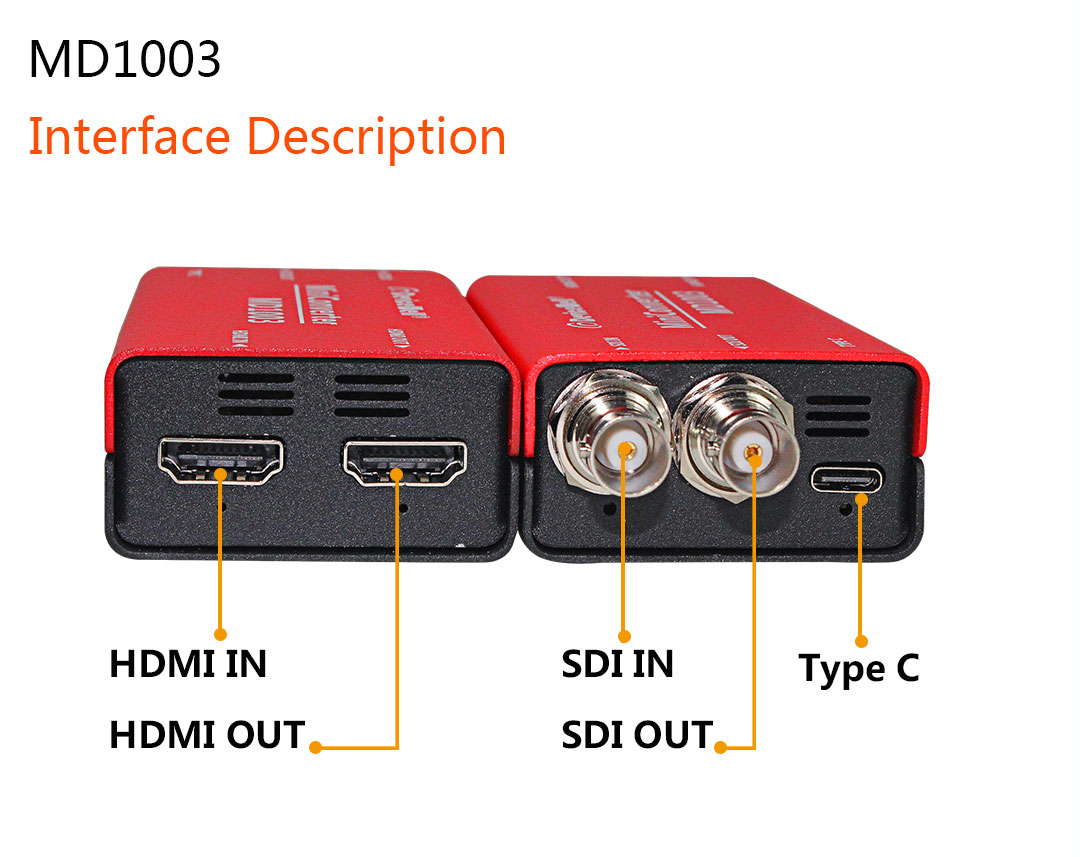

Interface Description SDI/HDMI BIDI Converter

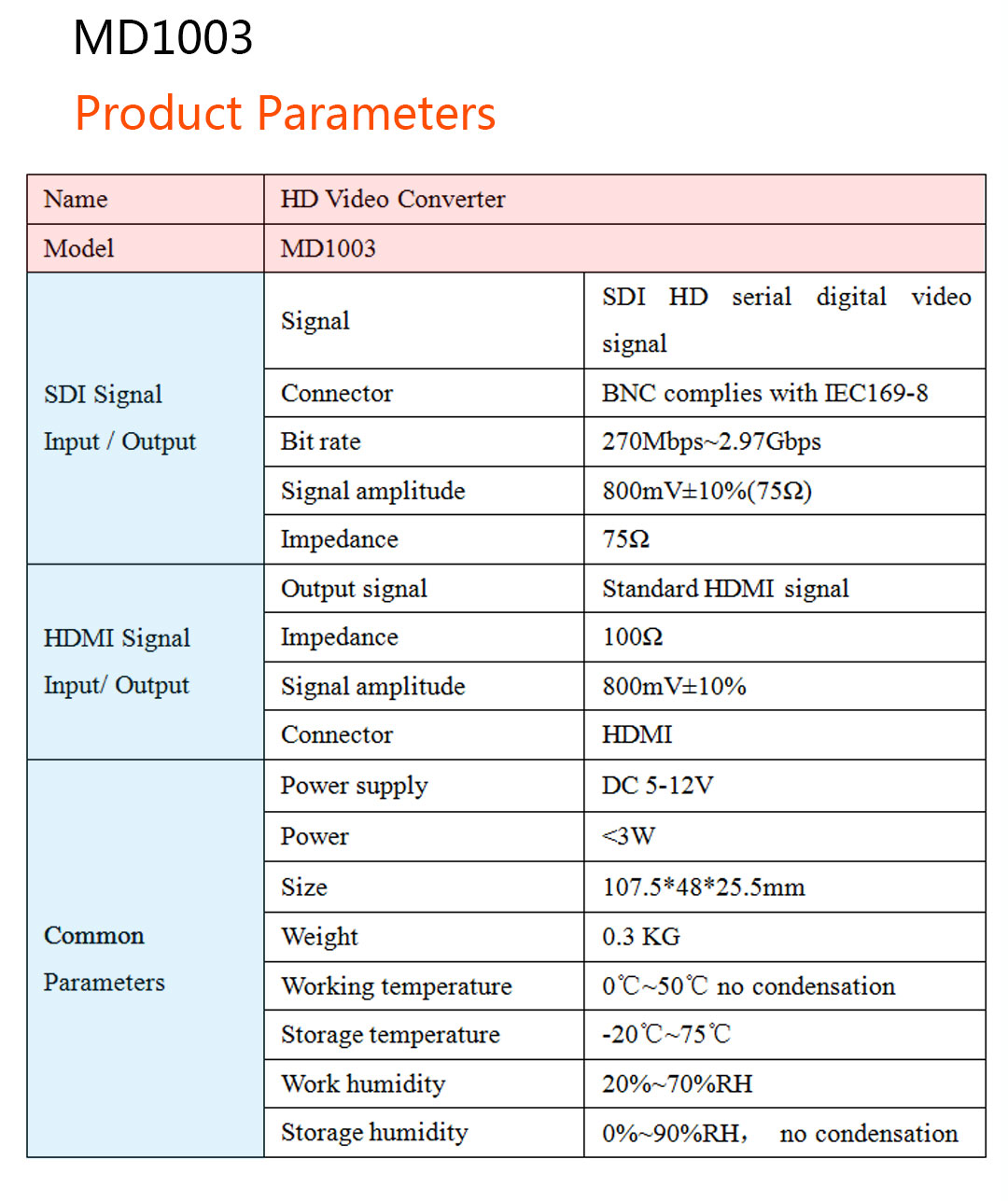

SDI/HDMI BIDI Converter Product Parameters



Downloading the instructions of the  MD1003  SDI/HDMI BIDI converter of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	MD1003 Specification download	1.0	Oct. 28, 2024
2	MD1003 Photos download	1.0	Oct. 28, 2024
3	Others
