Lossless UHD 4K output Video does not freeze

Optical signal transmission system designed based on broadcast-grade 12G SDI signals. Video lossless transmission, no compression, no delay, no video lag. SDI signals support 12G/6G/3G/1.485G/270M。

Single fiber multi-service  optical transceiver  Use in pairs

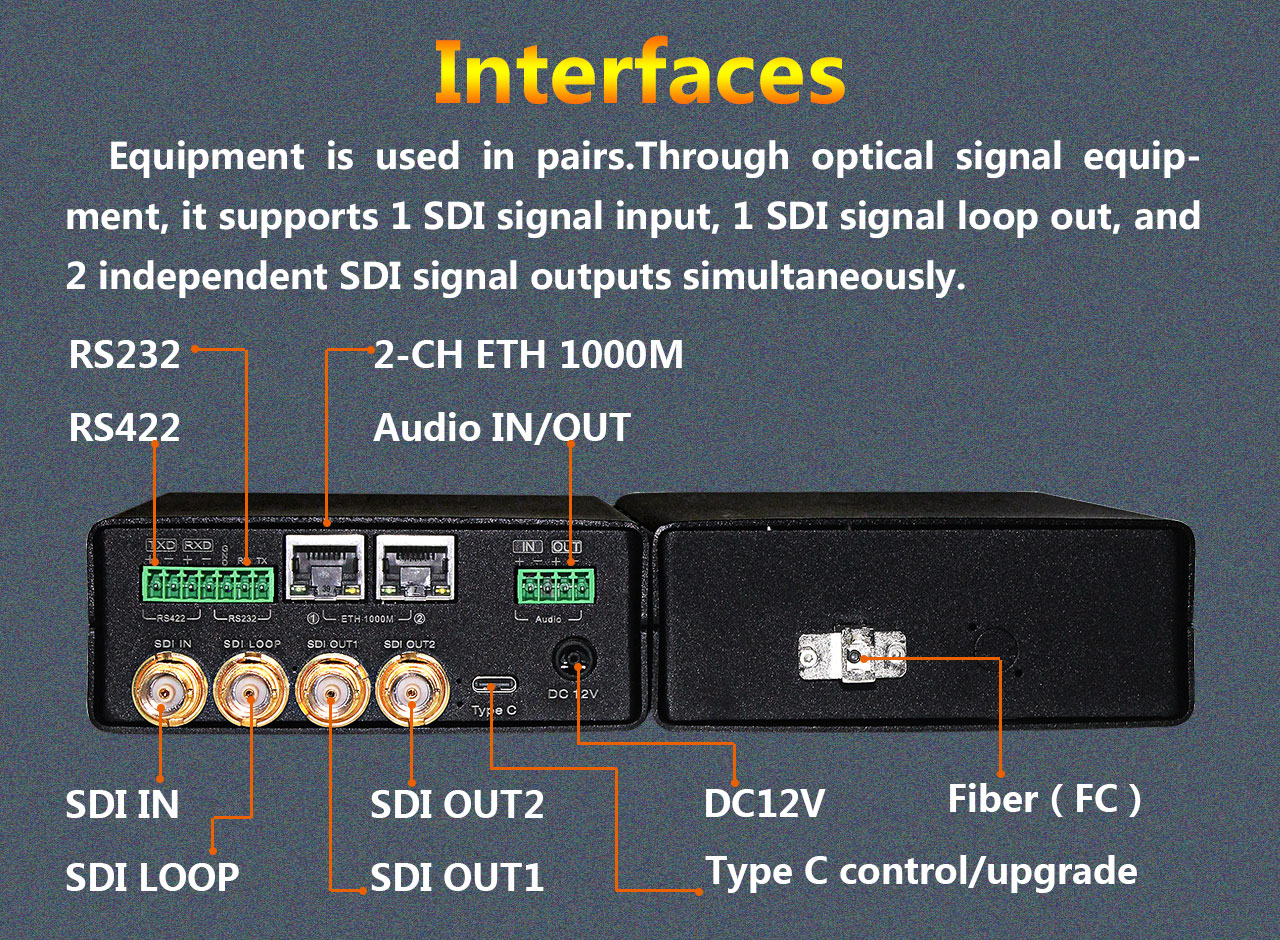

It can transmit signals such as gigabit network, RS232, RS422/RS485, GPIO, and audio while transmitting 12G  SDI.

High-fidelity long-distance transmission

The video is smooth and the transmission is high-speed and stable. The equipment adopts a single-mode single-fiber design with a standard transmission distance of 20KM. The corresponding modules of different distances can be replaced at will according to different application scenarios.It can be widely used in professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, especially suitable for various engineering project applications of fiber optic mixed signal transmission.

Support for ReClock function

Strong anti-interference and high safety performance.The input SDI signal is adaptive, the output is synchronized with the input and supports the ReClock function. The equipment has built-in SDI signal equalization, SDI serial clock recovery and line driver, and the signal quality complies with broadcast and television standards.

























Downloading the instructions of the Professional Single Fiber 8K/48G SDI Optical Transceiver of Devicewel

Serial No.	Material name	Version	modification date	Description/Remarks
1	Professional single fiber multi-service BIDI 12G SDI Fiber Optic FD2917B Specification Download	1.0	Oct. 8, 2023	Initial Issue
2	BIDI 12G SDI Fiber Optic FD2917B SDI Fiber Optic Photos Download	1.0	Oct. 8, 2023
3	Others
