Devicewell Professional HD Video YPbPr TO SDI ConverterPD6331
Professional HD Video YPbPr TO SDI ConverterPD6331
Product Overview
DeviceWell HD Video Converter, It support YPbPr signal convert to 3G/HD/SD SDI signal. The device Integrated YPbPr receiver and 3G/HD/SD-SDI encoder, easily converted YPbPr signal to 3G/HD/SD-SDI signal. Meanwhile, YPbPr support external input analog audio signal embedded in the SDI signal. Additionally, PD6331 also supports "Frame Rate Convert" function, it can convert different resolution YPbPr signal to a fixed resolution SDI signal output. The output resolution setting use digital coding switch, easy to operate.

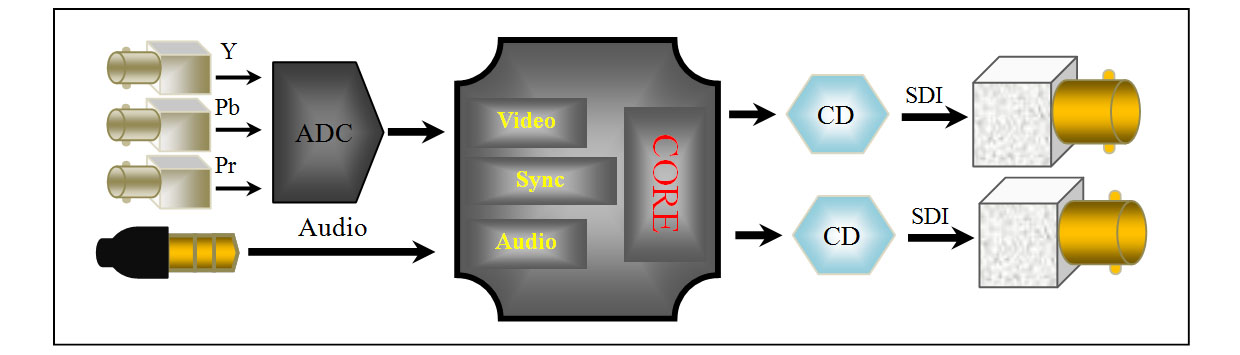

Functional Diagram
Product features
.Standard YPbPr signal input
.Optional 3G/HD/SD SDI output signal
.Optional 1080P/1080I/720P/480I/576I/1080PSF output
. YPbPr input signal auto detected
.External analog audio signal embedded in the SDI signal
.The SDI can be set to "any frequency" output
.Down Scale support Left /Right Cut
.Down Scale support Top /Bottom Black
. Special function can be customized

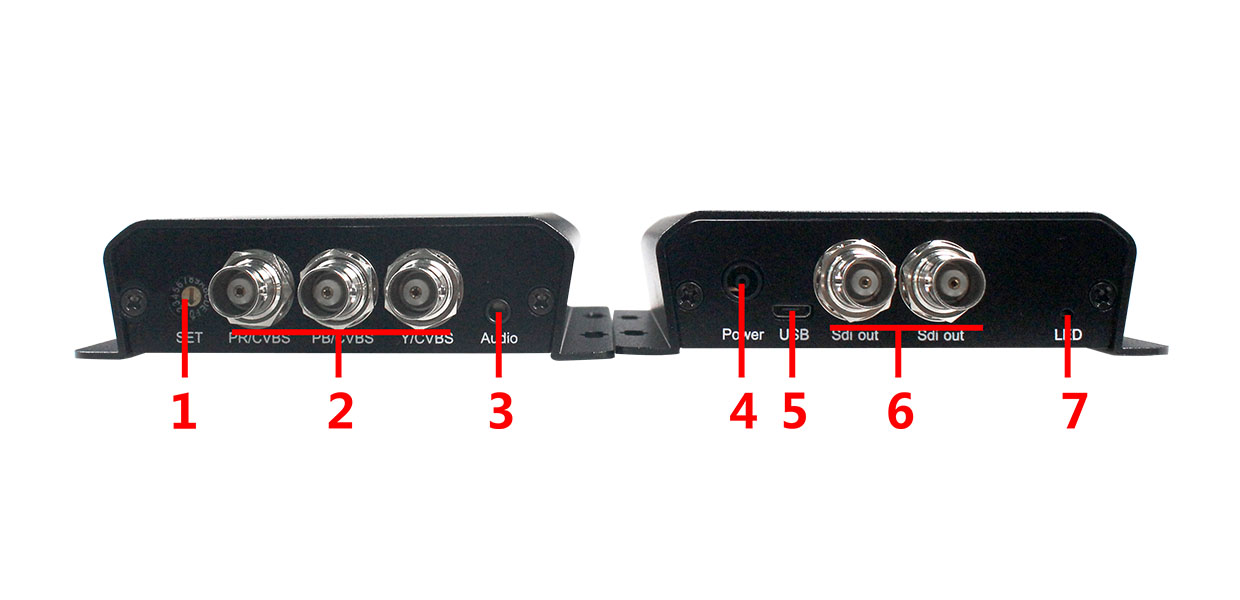

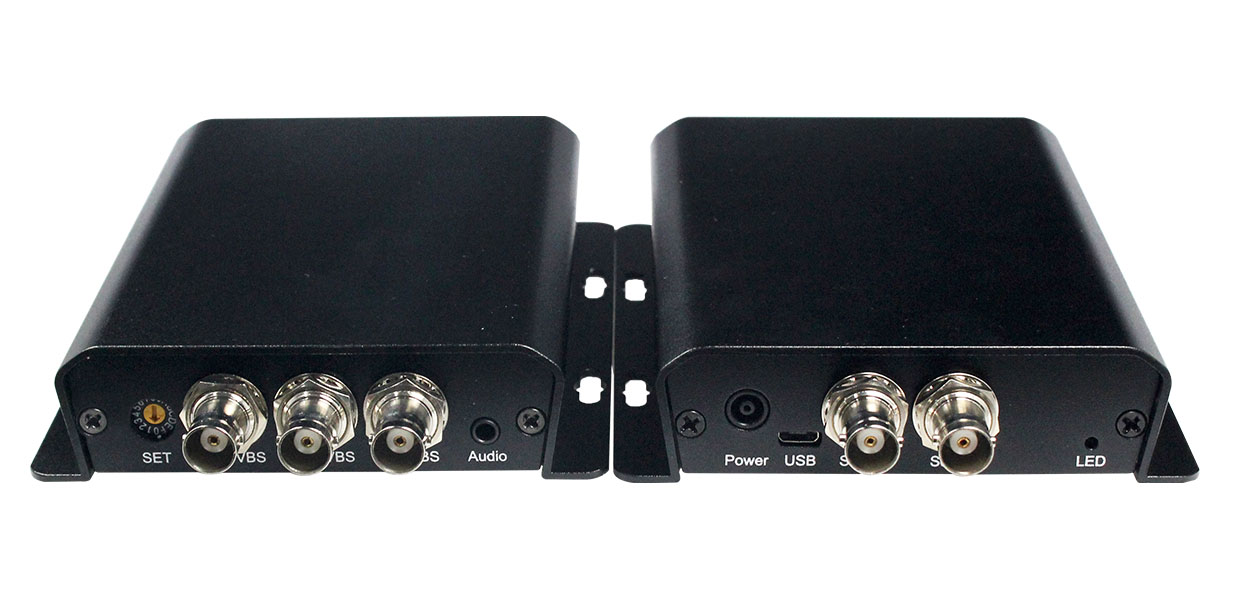

Interface specification
1 . Setup (see table below) 2. YPbPr input 3. Audio input 4. DC 5V-12V
5.USB power supply 6. SDI output (see table below) 7.LED Indicator(P: power L: SD M: HD H:3G)
Product parameters
Product name |
HD Video Converter |
|
Product model |
PD6331 |
|
YPbPr Input |
Input signal |
Standard YPbPr signal |
Connector |
BNC |
|
Amplitude of the signal |
800mV±10%(75Ω) |
|
Impedance |
75Ω |
|
Analog audio input |
Input signal |
Analog stereo audio |
Digital sampling |
48K |
|
Impedance |
600Ω |
|
Connector |
Earphone |
|
SDI Output |
output signal |
SDI (serial digital video signal) |
bit rate |
270Mbps~2.97Gbps |
|
Impedance |
75Ω |
|
Amplitude of the signal |
800mV±10% |
|
Connector |
BNC comply IEC169-8 standards |
|
Common parameters |
Operating voltage |
DC 5-12V |
Power |
<2W |
|
Host size |
141 X 102 X 30 mm |
|
Control panel |
Digital code switch |
|
Weight |
0.3KG |
|
Working temperature |
0℃~50℃ ,no condensation |
|
Storage temperature |
-20℃~75℃ |
|
Work humidity |
20%~70%RH |
|
Storage humidity |
0%~90%RH,no condensation |
|

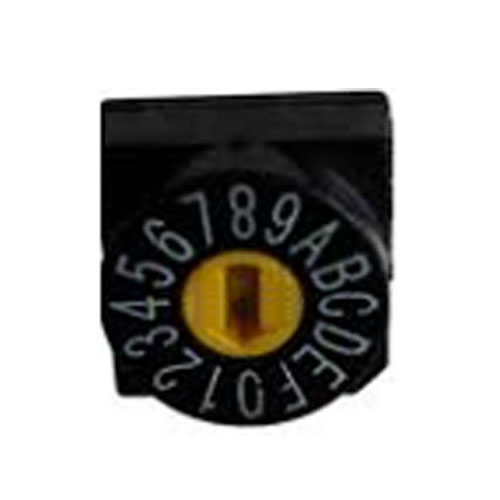

Parameter setting
 |
|
Code Set |
Output Resolution |
0 |
1080I @50HZ |
1 |
1080P @60HZ |
2 |
1080P @50HZ |
3 |
1080I @60HZ |
4 |
1080P @30HZ |
5 |
1080P @25HZ |
6 |
1080P @24HZ |
7 |
720P @60HZ |
8 |
720P @50HZ |
9 |
720P @30HZ |
A |
720P @25HZ |
B |
576I @50HZ |
C |
480I @60HZ |
D |
576I @50HZ切边 |
E |
576I @50HZ加黑边 |
F |
Reserve |

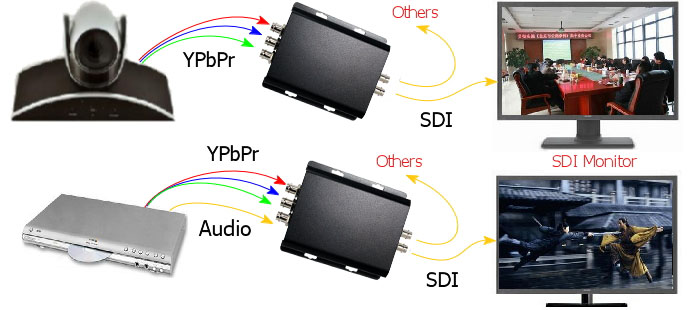

PD6331 Application schematic diagram
Model order
|
Product model |
Function |
Chassis Type |
Type of Power |
Others |
|
PD6331 |
YPbPr To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6321 |
HDMI To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6341 |
CVBS To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6351 |
DVI To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6361 |
VGA To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6311 |
SDI To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
