Professional HD Video Converter PD6341(CVBS TO SDI)
Professional HD Video Converter PD6341(CVBS TO SDI)
Product Overview
DeviceWell HD Video Converter, It support CVBS signal convert to 3G/HD/SD SDI signal. The device Integrated CVBS receiver and 3G/HD/SD-SDI encoder, easily converted CVBS signal to 3G/HD/SD-SDI signal. Meanwhile, PD6341 supports external input analog audio signal can be embedded in the SDI signal. Additionally, PD6341 also supports "Frame Rate Convert" function, it can convert different resolution CVBS signal to a fixed resolution SDI signal output. The output resolution setting use digital coding switch, easy to operate.

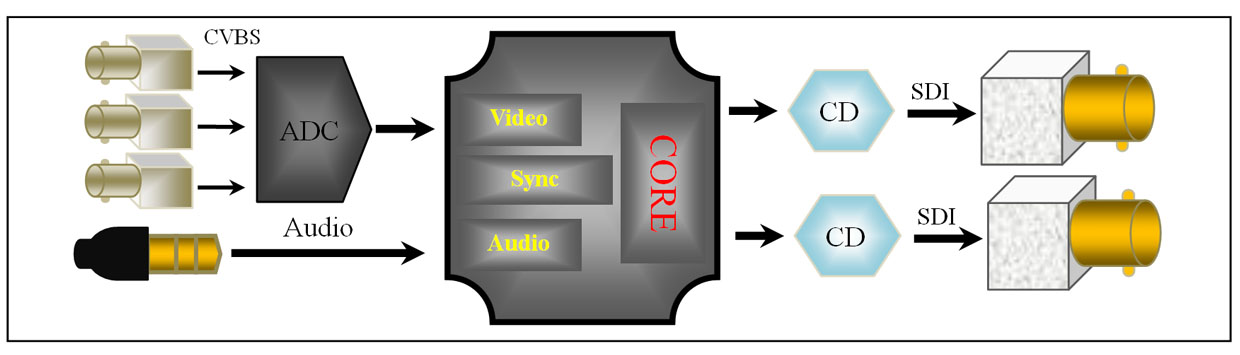

Functional Diagram
Product features
.Standard CVBS signal input
.Optional 3G/HD/SD SDI output signal
.Optional 1080P/1080I/720P/480I/576I/1080PSF output
.CVBS input signal auto detected
.Support video edge cutting or black side
.External analog audio signal embedded in the SDI signal
.The SDI can be set to "any frequency" output
. Special function can be customized
Interface specification
1 . Setup (see table below) 2. CVBS input 3. Ext Audio input 4. DC 5V-12V
5.USB interface 6.SDI output (See table below) 7. LED Indicator(P: power L: SD M: HD H:3G)
Product parameters
Product name |
HD Video Converter |
|
Product model |
PD6341 |
|
CVBS Input |
Input signal |
Standard CVBS signal |
Connector |
BNC( IEC169-8 Standard) |
|
Amplitude of the signal |
800mV±10%(75Ω) |
|
Impedance |
750Ω |
|
Analog audioinput |
Input signal |
Analog stereo audio |
Digital sampling |
48K |
|
Impedance |
600Ω |
|
Connector |
Earphone |
|
SDI Output |
output signal |
SDI (serial digital video signal) |
bit rate |
270Mbps~2.97Gbps |
|
Impedance |
75Ω |
|
Amplitude of the signal |
800mV±10% |
|
Connector |
BNC comply IEC169-8 standards |
|
Common parameters |
Operating voltage |
DC 5-12V |
Power |
<2W |
|
Host size |
141 X 102 X 30 mm |
|
Control panel |
Digital code switch |
|
Weight |
0.3KG |
|
Working temperature |
0℃~50℃ ,no condensation |
|
Storage temperature |
-20℃~75℃ |
|
Work humidity |
20%~70%RH |
|
Storage humidity |
0%~90%RH,no condensation |
|
Parameter setting
|
|
|
Code |
Output Resolution Set |
0 |
1080I @50HZ |
1 |
1080P @60HZ |
2 |
1080P @50HZ |
3 |
1080I @60HZ |
4 |
1080P @30HZ |
5 |
1080P @25HZ |
6 |
1080P @24HZ |
7 |
720P @60HZ |
8 |
720P @50HZ |
9 |
720P @30HZ |
A |
720P @25HZ |
B |
576I @50HZ |
C |
480I @60HZ |
D |
Reserve |
E |
Reserve |
F |
Reserve |

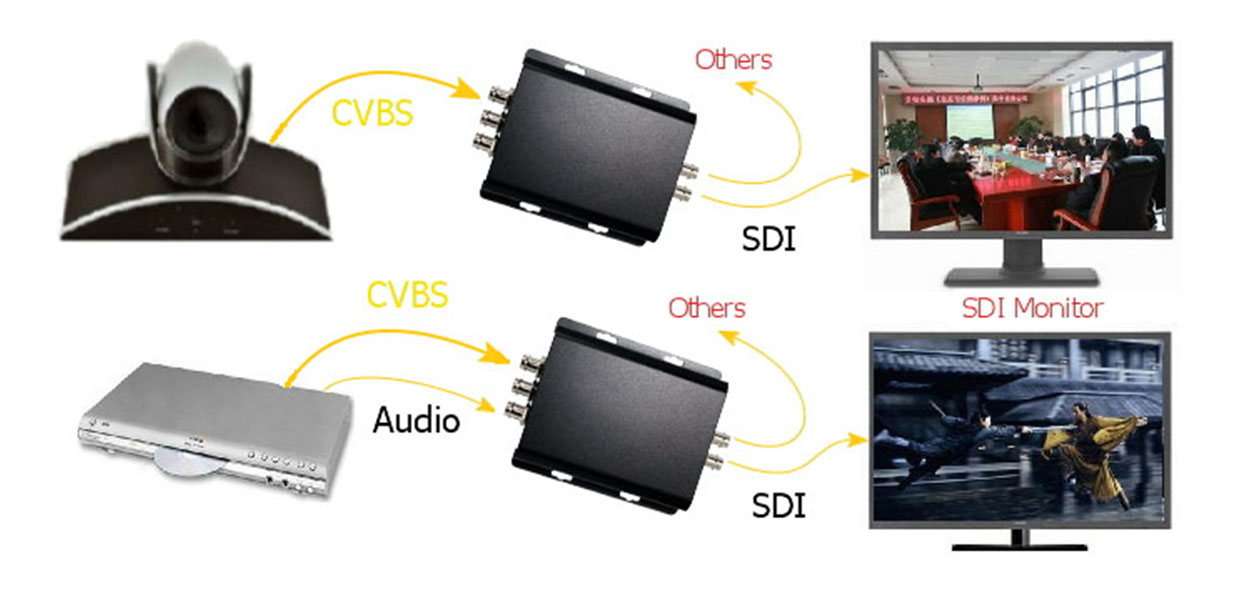

PD6341 Application schematic diagram
Model order
|
Product model |
Function |
Chassis Type |
Type of Power |
Others |
|
PD6341 |
CVBS To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6331 |
YPbPr To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6321 |
HDMI To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6351 |
DVI To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6361 |
VGA To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
|
PD6311 |
SDI To SDI |
Mini |
Standard AC-DC 12V power supply |
Support Frame Rate Conversion |
