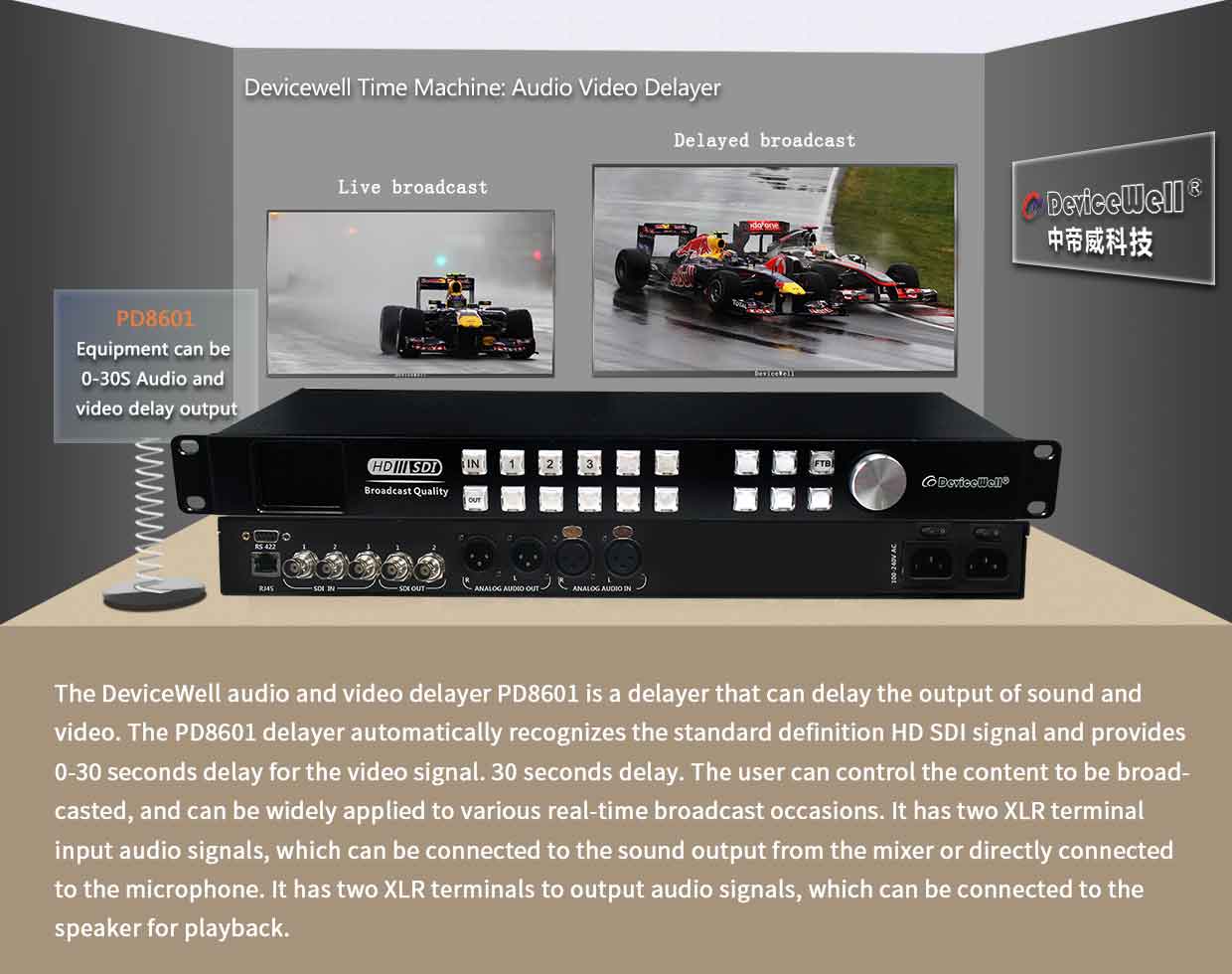

The DeviceWell audio and video delayer PD8601 is a delayer that can delay the output of sound and video. The PD8601 delayer automatically recognizes the standard definition HD SDI signal and provides 0-30 seconds delay for the video signal. 30 seconds delay. The user can control the content to be broadcasted, and can be widely applied to various real-time broadcast occasions. It has two XLR terminal input audio signals, which can be connected to the sound output from the mixer or directly connected to the microphone. It has two XLR terminals to output audio signals, which can be connected to the speaker for playback.

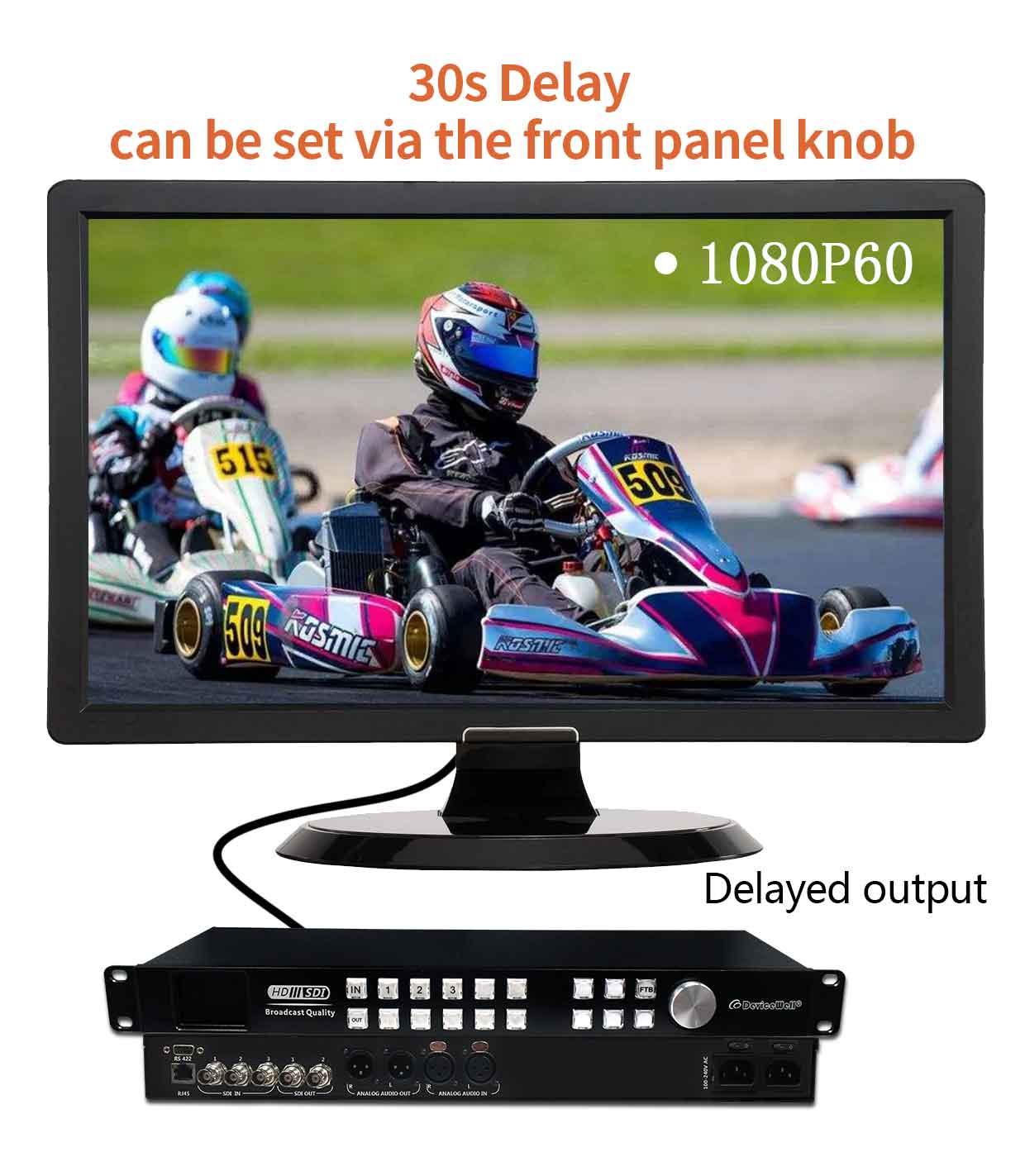

30s Delay can be set via the front panel knob

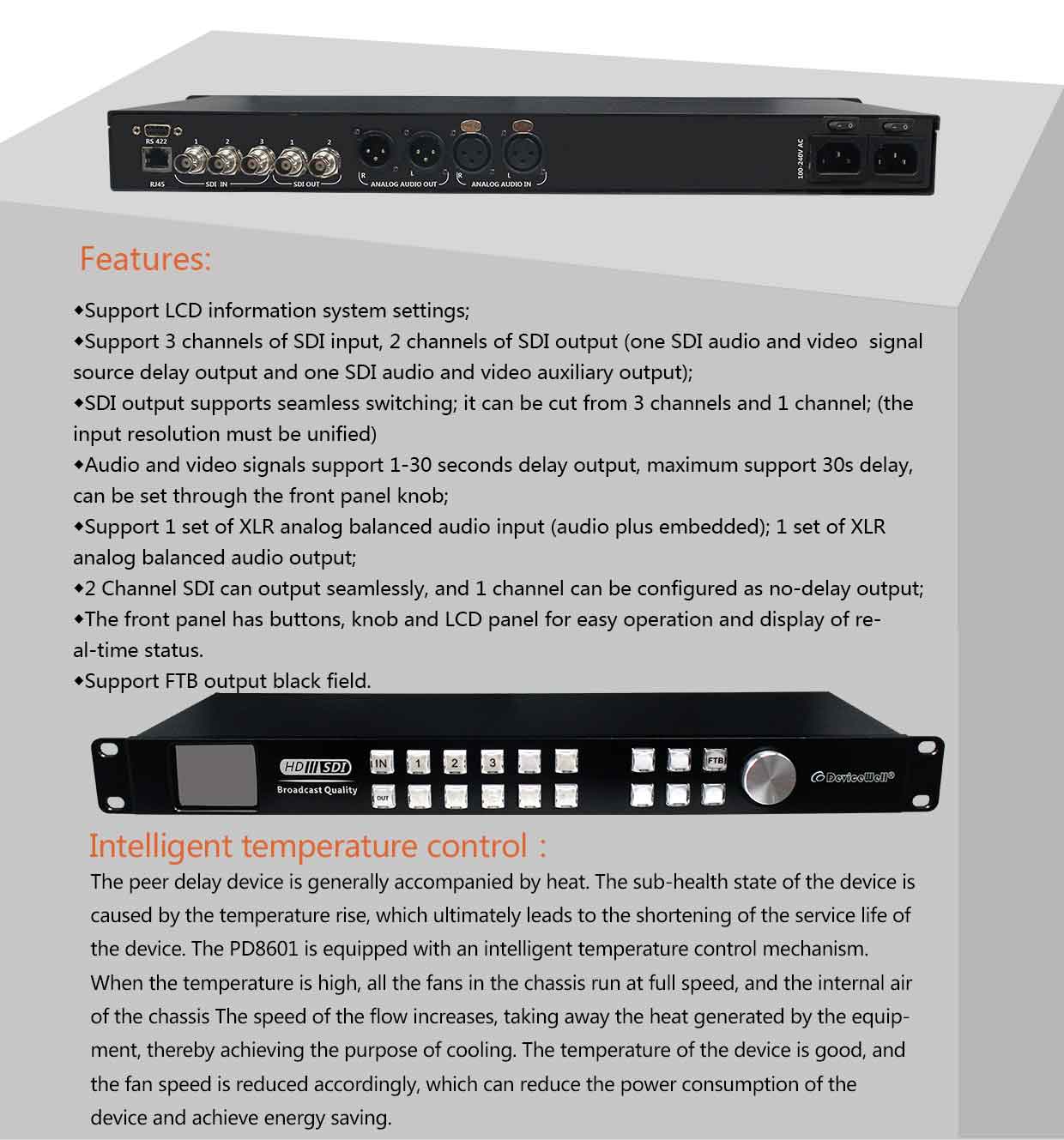

Features:

◆Support LCD information system settings;

◆Support 3 channels of SDI input, 2 channels of SDI output (one SDI audio and video  signal source delay output and one SDI audio and video auxiliary output);

◆SDI output supports seamless switching; it can be cut from 3 channels and 1 channel; (the input resolution must be unified)

◆Audio and video signals support 1-30 seconds delay output, maximum support 30s delay, can be set through the front panel knob;

◆Support 1 set of XLR analog balanced audio input (audio plus embedded); 1 set of XLR analog balanced audio output;

◆2 Channel SDI can output seamlessly, and 1 channel can be configured as no-delay output;

◆The front panel has buttons, knob and LCD panel for easy operation and display of real-time status.

◆Support FTB output black field.

Intelligent temperature control:

The peer delay device is generally accompanied by heat. The sub-health state of the device is caused by the temperature rise, which ultimately leads to the shortening of the service life of the device. The PD8601 is equipped with an intelligent temperature control mechanism. When the temperature is high, all the fans in the chassis run at full speed, and the internal air of the chassis The speed of the flow increases, taking away the heat generated by the equipment, thereby achieving the purpose of cooling. The temperature of the device is good, and the fan speed is reduced accordingly, which can reduce the power consumption of the device and achieve energy saving.

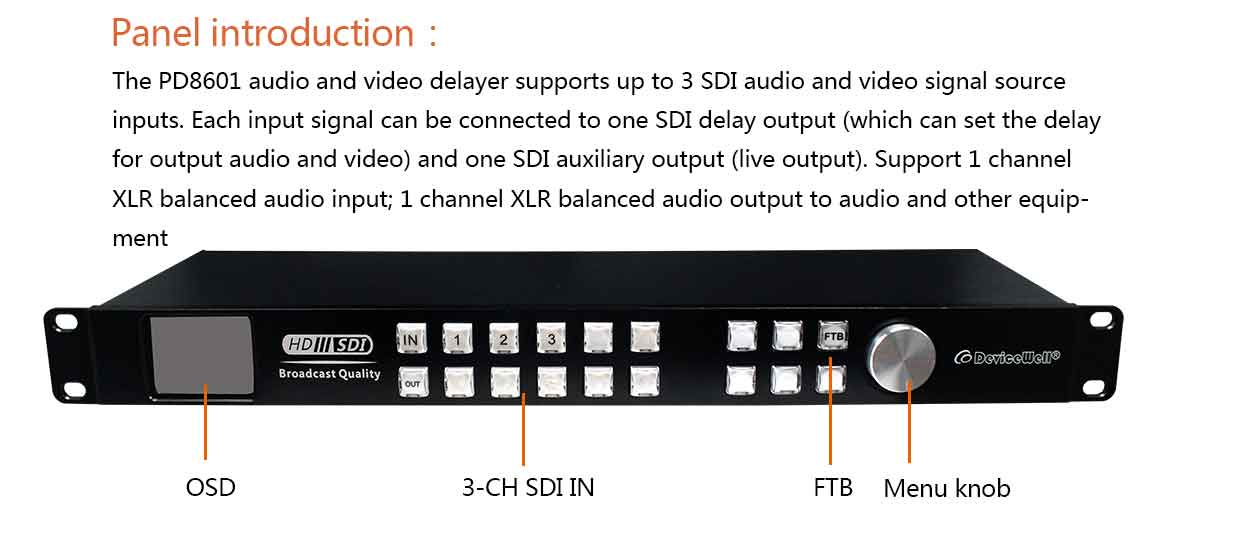

Panel introduction:

The PD8601 audio and video delayer supports up to 3 SDI audio and video signal source inputs. Each input signal can be connected to one SDI delay output (which can set the delay for output audio and video) and one SDI auxiliary output (live output). Support 1 channel XLR balanced audio input; 1 channel XLR balanced audio output to audio and other equipment.

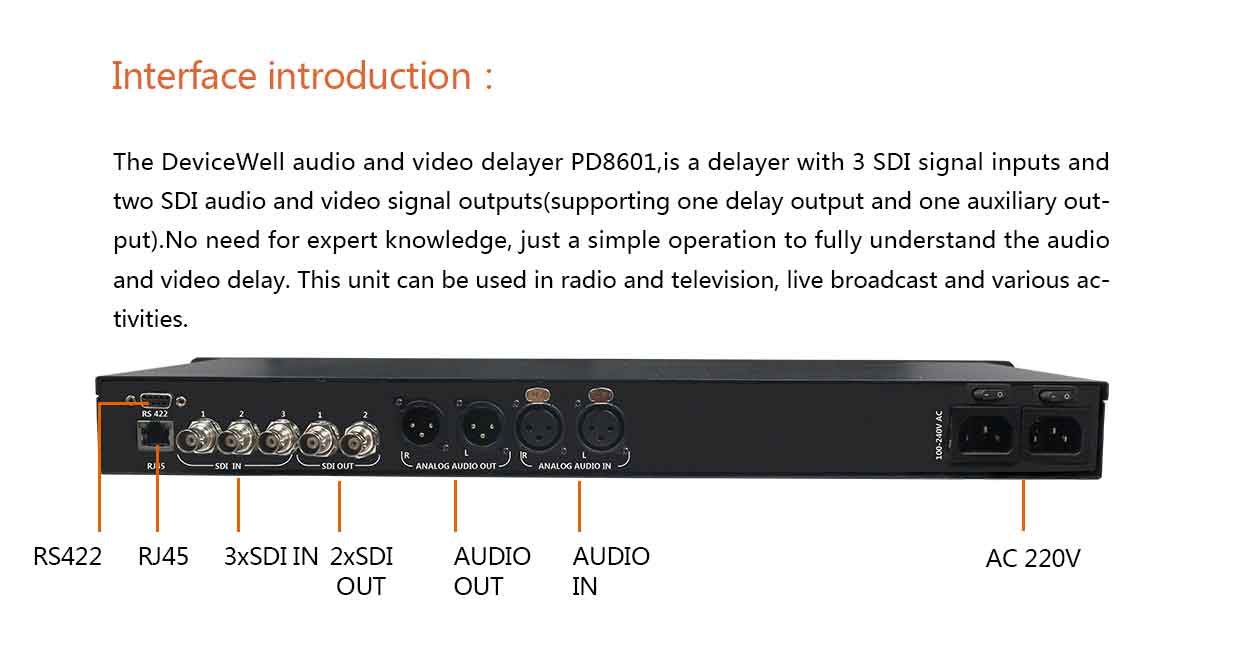

Interface introduction:

The DeviceWell audio and video delayer PD8601,is a delayer with 3 SDI signal inputs and two SDI audio and video signal outputs(supporting one delay output and one auxiliary output).No need for expert knowledge, just a simple operation to fully understand the audio and video delay. This unit can be used in radio and television, live broadcast and various activities.

Emergency output:

Press the FTB monitor screen to directly output the black field.





Downloading the instructions of the PD8601 Audio and video delay of Devicewel

Serial No.	Material name	Version	modification date	Description/Remarks
1	Devicewell PD8601 30S Audio and video delay PD8601S pecification Download	1.0	Dec.3rd,2024
2	Devicewell PD8601 30S Audio and video delay PD8601 Photos Download	1.0	Dec.3rd,2024
3	Others	1.0	Dec.3rd,2024
