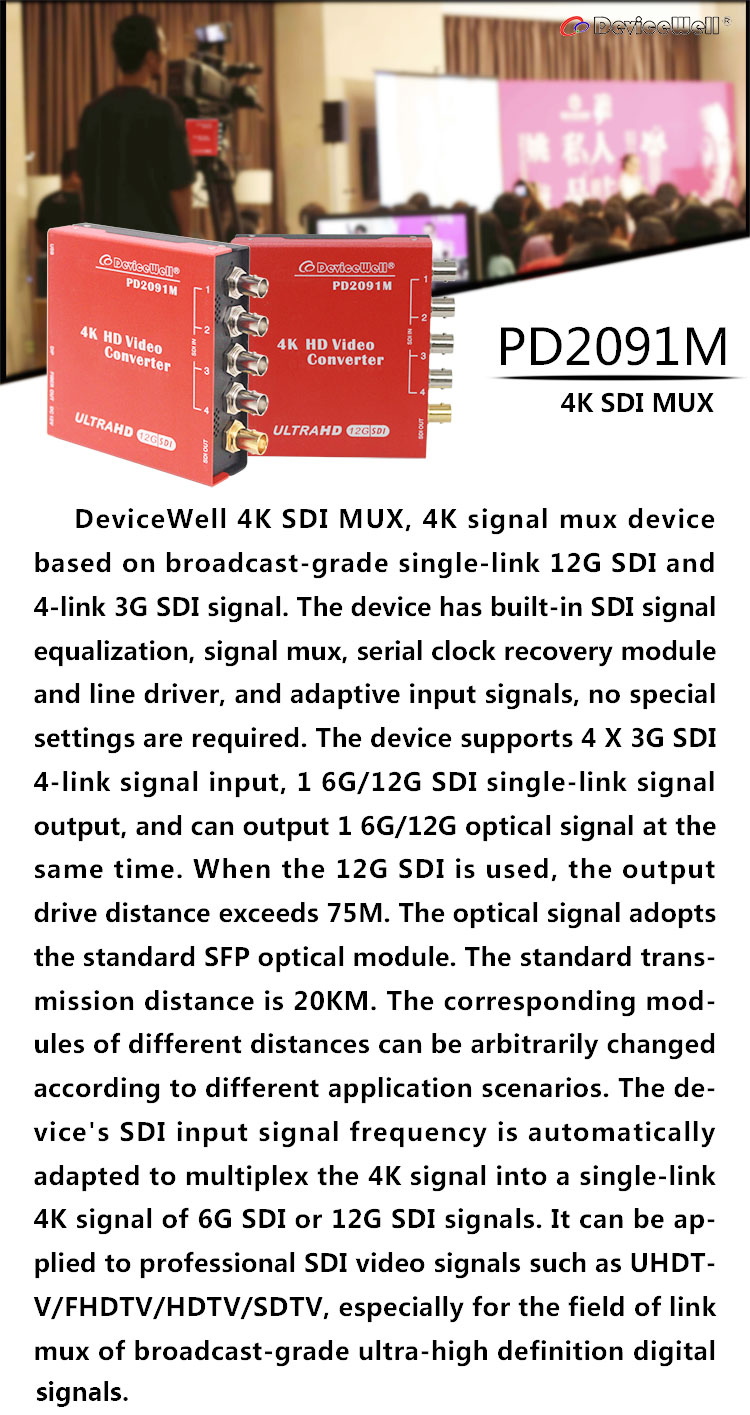

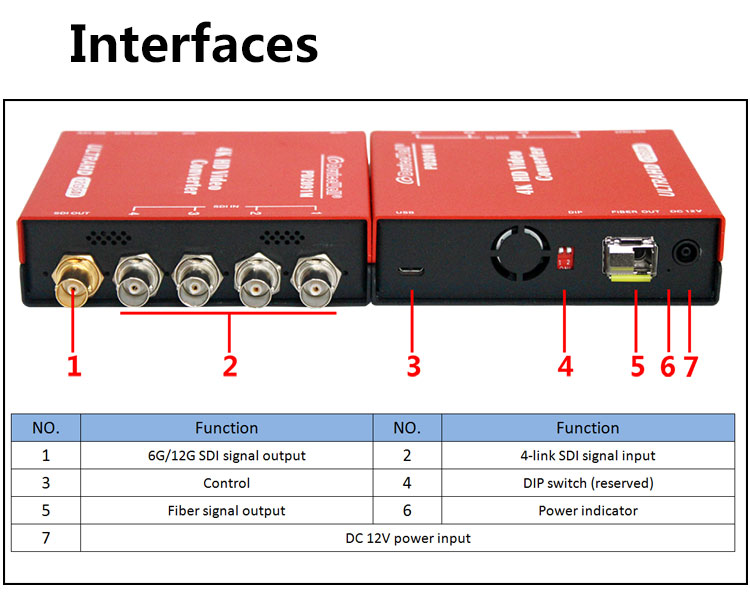

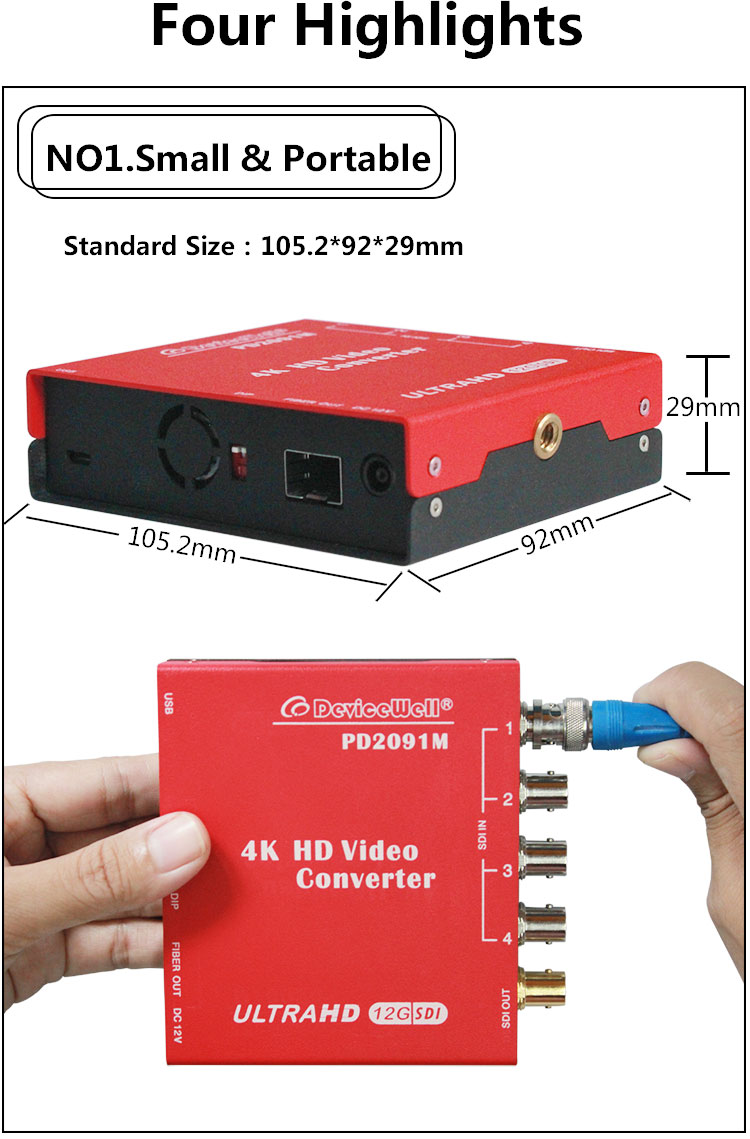

DeviceWell 4K SDI MUX, 4K signal mux device based on broadcast-grade single-link 12G SDI and 4-link 3G SDI signal. The device has built-in SDI signal equalization, signal mux, serial clock recovery module and line driver, and adaptive input signals, no special settings are required. The device supports 4 X 3G SDI 4-link signal input, 1 6G/12G SDI single-link signal output, and can output 1 6G/12G optical signal at the same time. When the 12G SDI is used, the output drive distance exceeds 75M. The optical signal adopts the standard SFP optical module. The standard transmission distance is 20KM. The corresponding modules of different distances can be arbitrarily changed according to different application scenarios. The device's SDI input signal frequency is automatically adapted to multiplex the 4K signal into a single-link 4K signal of 6G SDI or 12G SDI signals. It can be applied to professional SDI video signals such as UHDTV/FHDTV/HDTV/SDTV, especially for the field of link mux of broadcast-grade ultra-high definition digital signals.

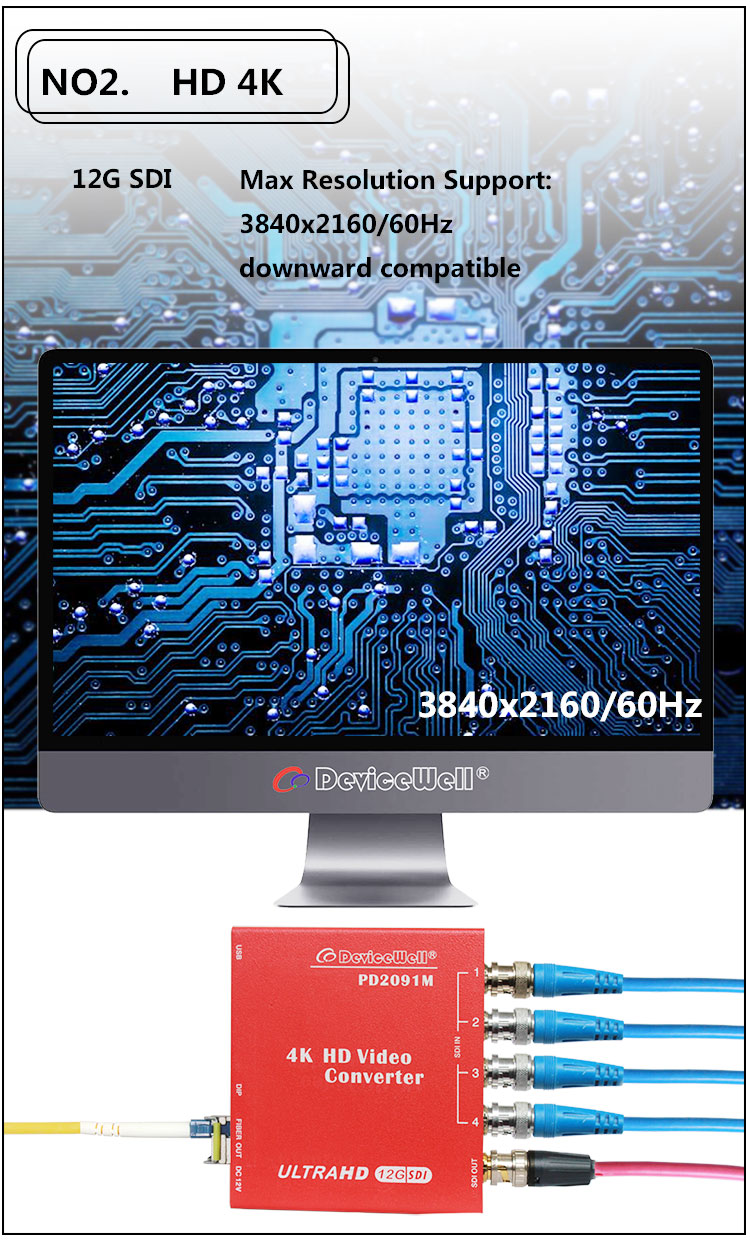

HD 4K

Max Resolution Support:   3840x2160/60Hz downward compatible

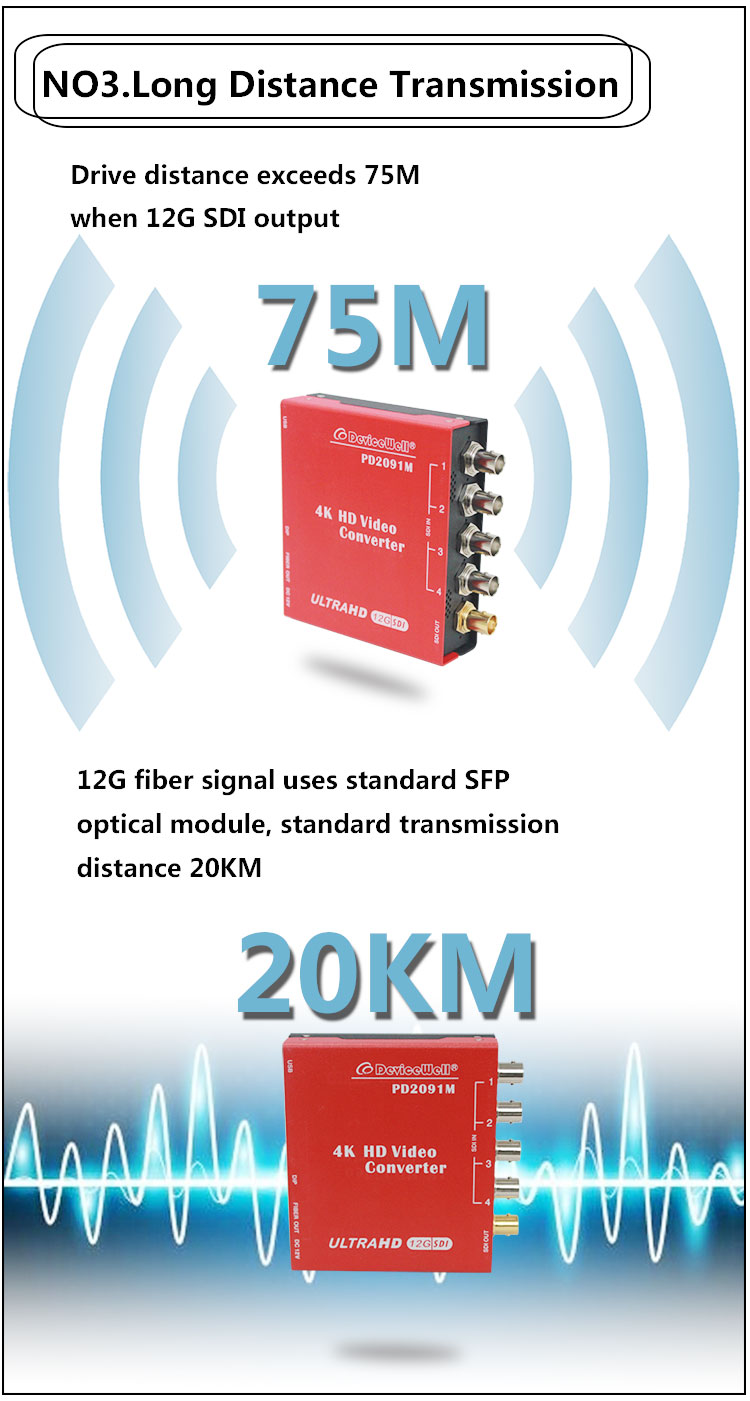

Long Distance Transmission

Drive distance exceeds 75M when 12G SDI output

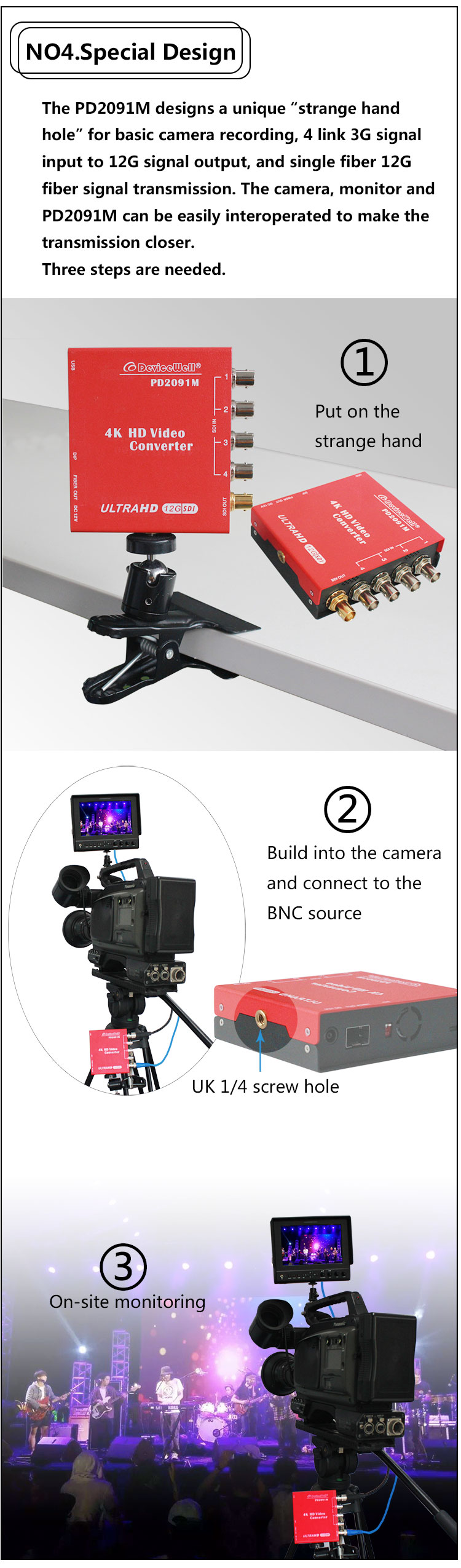

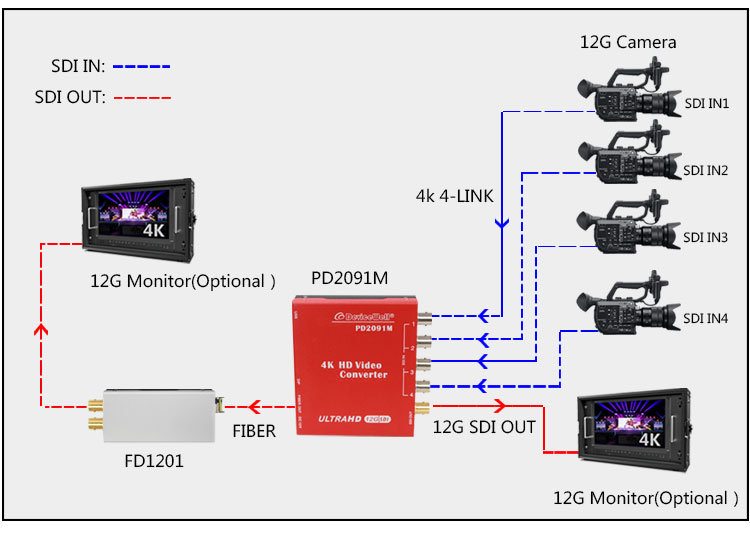

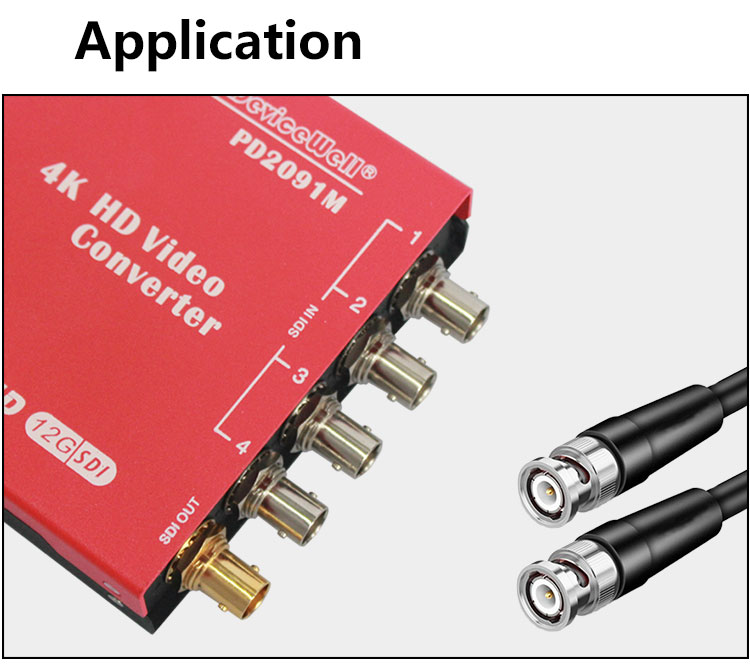

Special Design

The PD2091M designs a unique “strange hand hole” for basic camera recording, 4 link 3G signal input to 12G signal output, and single fiber 12G fiber signal transmission. The camera, monitor and PD2091M can be easily interoperated to make the transmission closer. Three steps are needed.

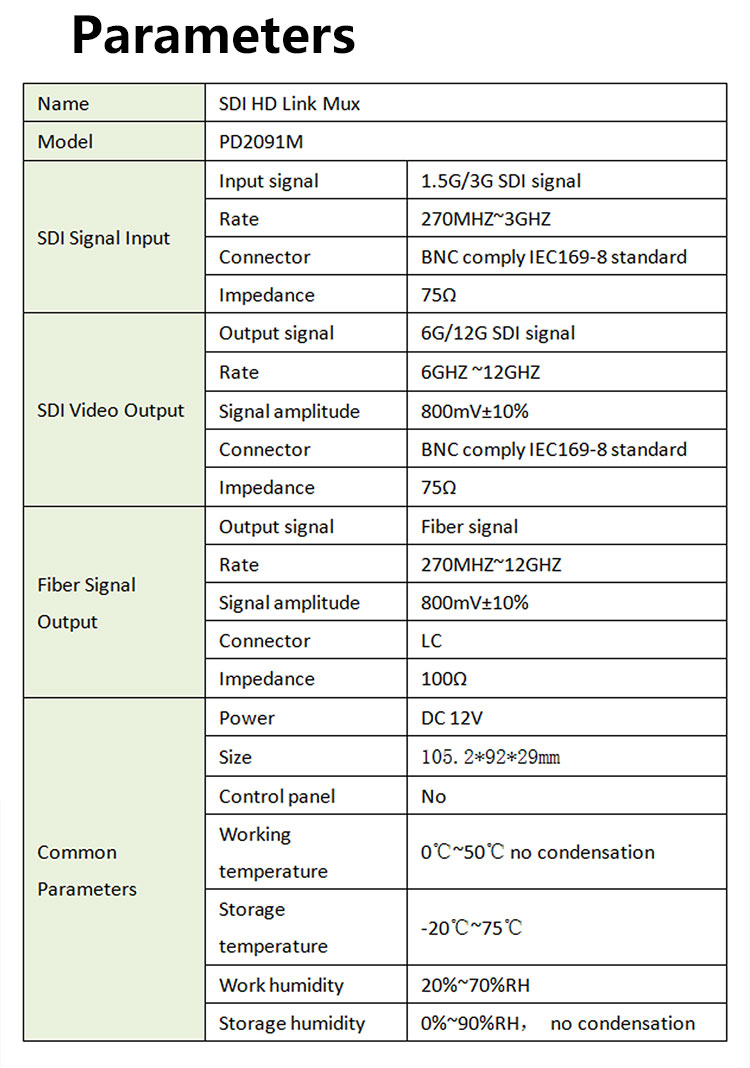

Downloading the instructions of the  PD2091M 4K SDI MUX of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	PD2091M Specification download	1.0	Sep. 11, 2024
2	PD2091M  Photos download	1.0	Sep. 11, 2024
3	Others
