DeviceWell's new Switcher UHS2516R. It is a dedicated video switcher for broadcast & TV, supporting up to 12-CH 4K60 signals. The device integrates SDI decoder, HDMI decoder, DP decoder, the highest resolution supports 4K60HZ, backward compatible with 3G SDI and other 1080P/720P high-definition video signals, built-in format converter, adaptive front-end different video signal input, built-in special effect generator, audio processor, video streaming processing and other common components of switcher. The video signal interface supports 10-CH 12G SDI+2-CH 4K60 HDMI+2-CH 4K60 DP, a total of 14 video inputs, 3-CH SDI output + 5-CH HDMI output+1-CH UVC output, a total of 9 video signal outputs. The audio signal interface supports 2 channels of XLR input, 2 channel of XLR input. Support DCB control system and tally output. Optional H.26x encoding module, also capable of recording to built-in SSD or external USB drive.Featuring a high-strength aluminum alloy shell and a built-in 5-inch display screen. It is suitable for the needs of switching between broadcasting and television studios and outdoor video special effects. For professional users, the keyboard can be extended and controlled through the DCB/RJ45 interface.   ◆2HDMI+2DP+10SDI input ◆MULTIVIEW output: 1 -CH HDMI ◆PGM output: 3-CH4K60  HDMI+2-CH12G SDI ◆1-CH 1080P HDMI OUT ◆1-CH12G SDI AUX custom PGM/PVW output ◆2-CH XLR IN ,2-CH XLR OUT ◆The storage device interface supports USB3.0 and SATA hard disk recording ◆The USB interface can be connected to the mouse and keyboard for operating the internal recording system

On site multi machine production of live streaming recording and switching stations

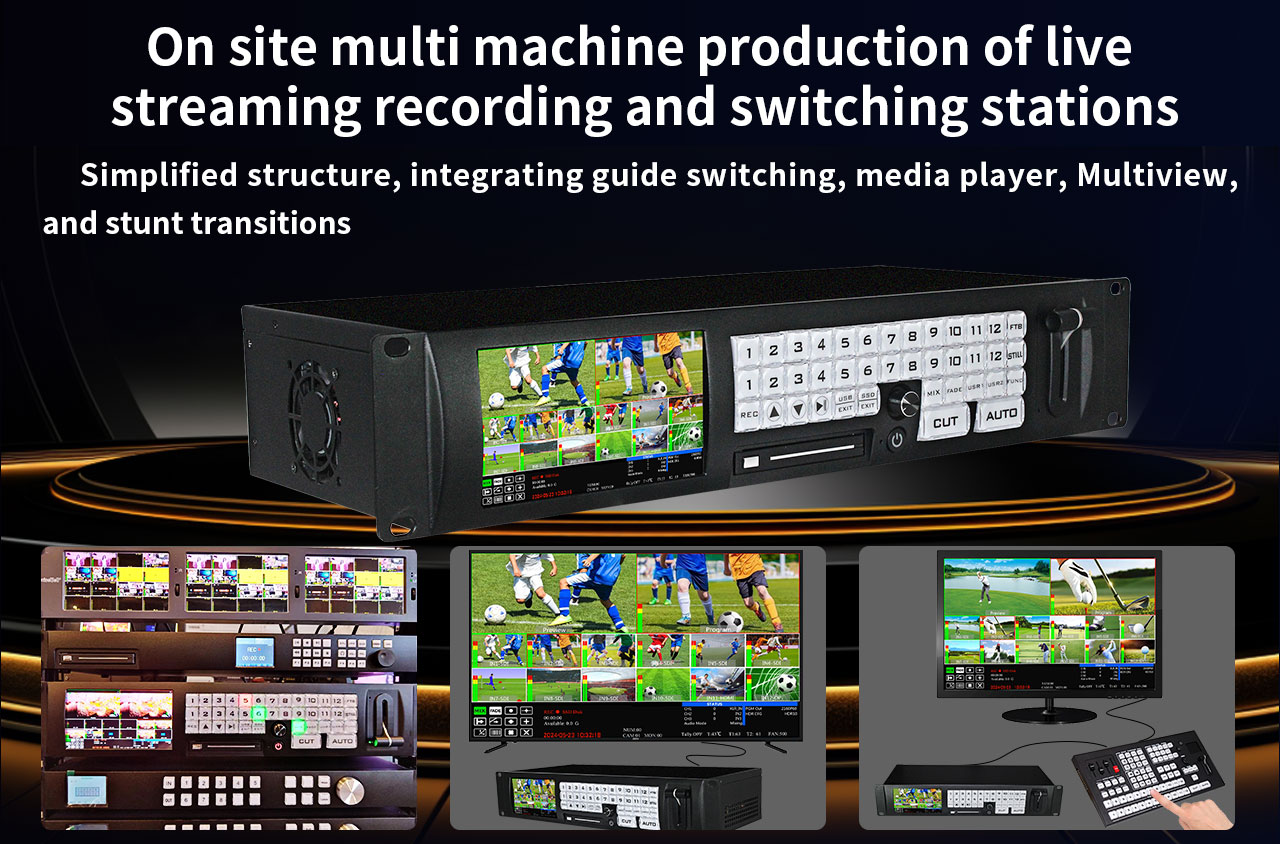

Simplified structure, integrating guide switching, media player, Multiview, and stunt transitions.

Make your live streaming activities more professional

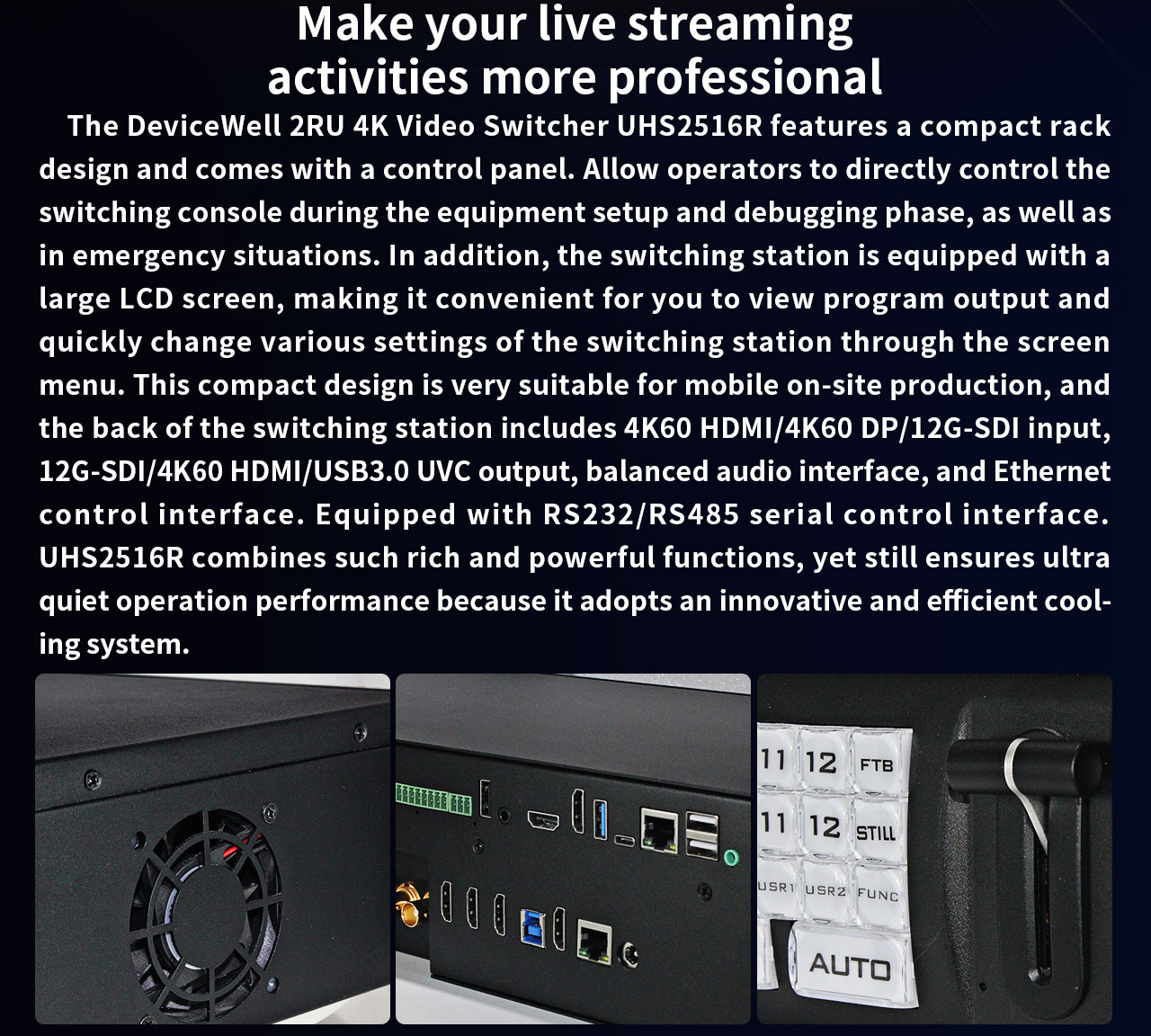

The DeviceWell 2RU 4K Video Switcher UHS2516R features a compact rack design and comes with a control panel. Allow operators to directly control the switching console during the equipment setup and debugging phase, as well as in emergency situations. In addition, the switching station is equipped with a large LCD screen, making it convenient for you to view program output and quickly change various settings of the switching station through the screen menu. This compact design is very suitable for mobile on-site production, and the back of the switching station includes 4K60 HDMI/4K60 DP/12G-SDI input, 12G-SDI/4K60 HDMI/USB3.0 UVC output, balanced audio interface, and Ethernet control interface. Equipped with RS232/RS485 serial control interface. UHS2516R combines such rich and powerful functions, yet still ensures ultra quiet operation performance because it adopts an innovative and efficient cooling system.

System control via LCD menu

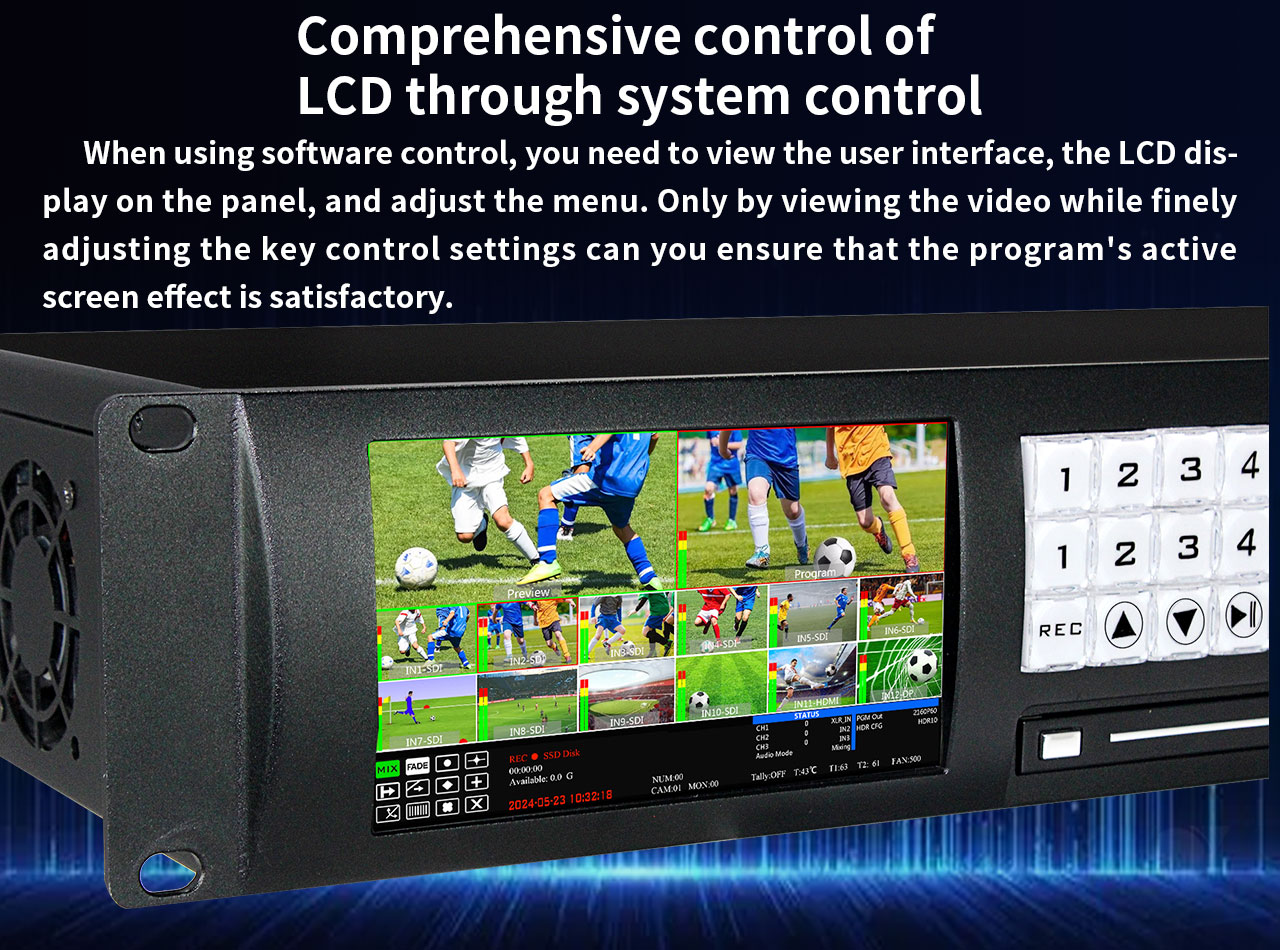

      When using software control, you need to check the user interface. The LCD screen on the panel can adjust the menu. Only by finely adjusting the key settings while viewing the video can you ensure that the program activity screen effect is satisfactory.

Up to 14-CH signal source switching

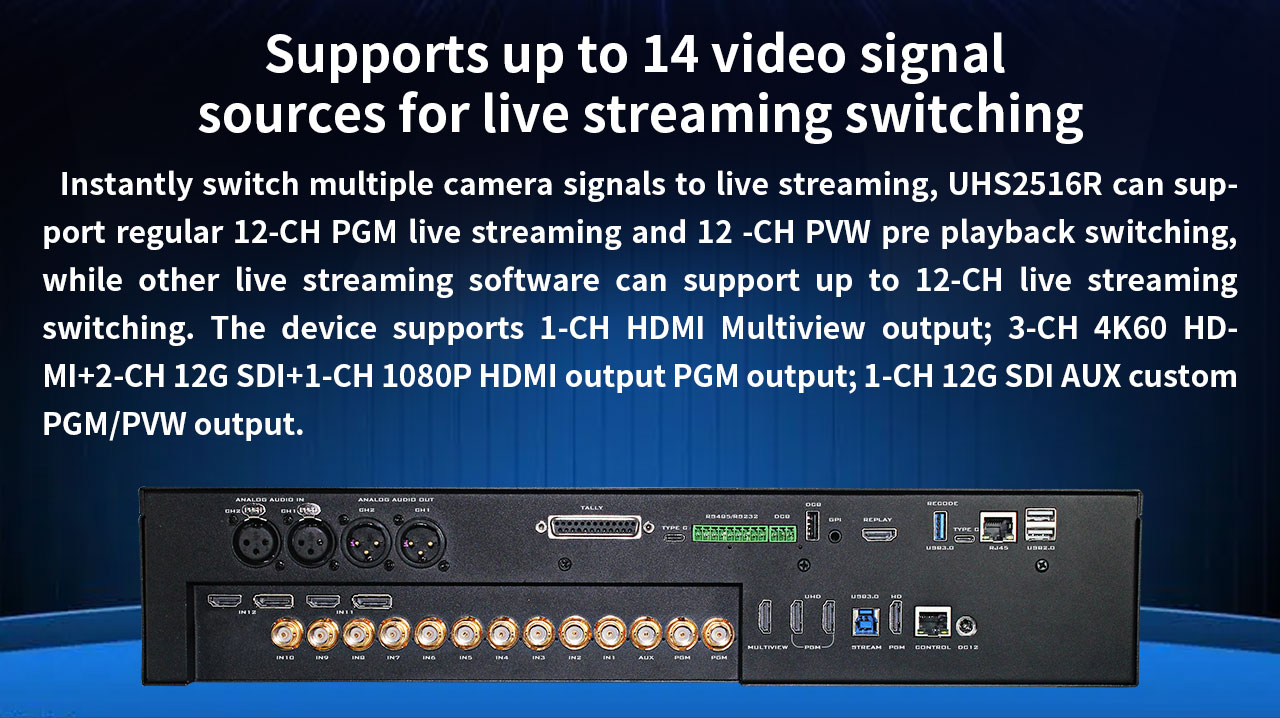

Instantly switch multiple camera signals to live broadcast. UHS2516R can support conventional 12-CH PGM live broadcast + 12-CH PVW multiview switching. Other live broadcast software supports up to 12-CH live broadcast switching.The device supports 1-CH HDMI Multiview output; 3-CH 4K60 HDMI+2-CH 12G SDI+1-CH 1080P HDMI output PGM output; 1-CH 12G SDI AUX custom PGM/PVW output.

Rich interface functions to meet your activity scenario needs

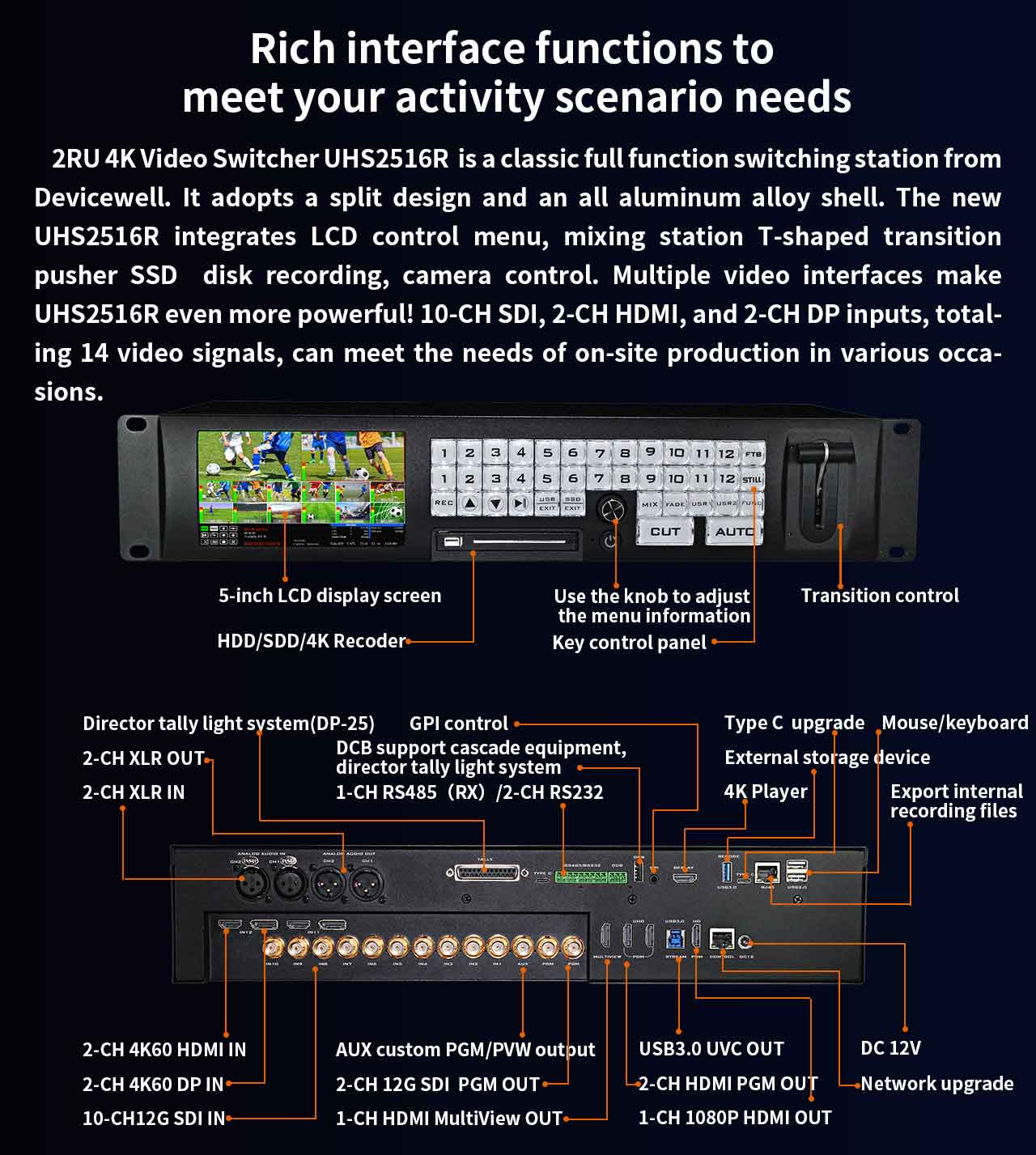

2RU 4K Video Switcher UHS2516R  is a classic full function switching station from Devicewell. It adopts a split design and an all aluminum alloy shell. The new UHS2516R integrates LCD control menu, mixing station T-shaped transition pusher SSD  disk recording, camera control. Multiple video interfaces make UHS2516R even more powerful! 10-CH SDI, 2-CH HDMI, and 2-CH DP inputs, totaling 14 video signals, can meet the needs of on-site production in various occasions.

Application

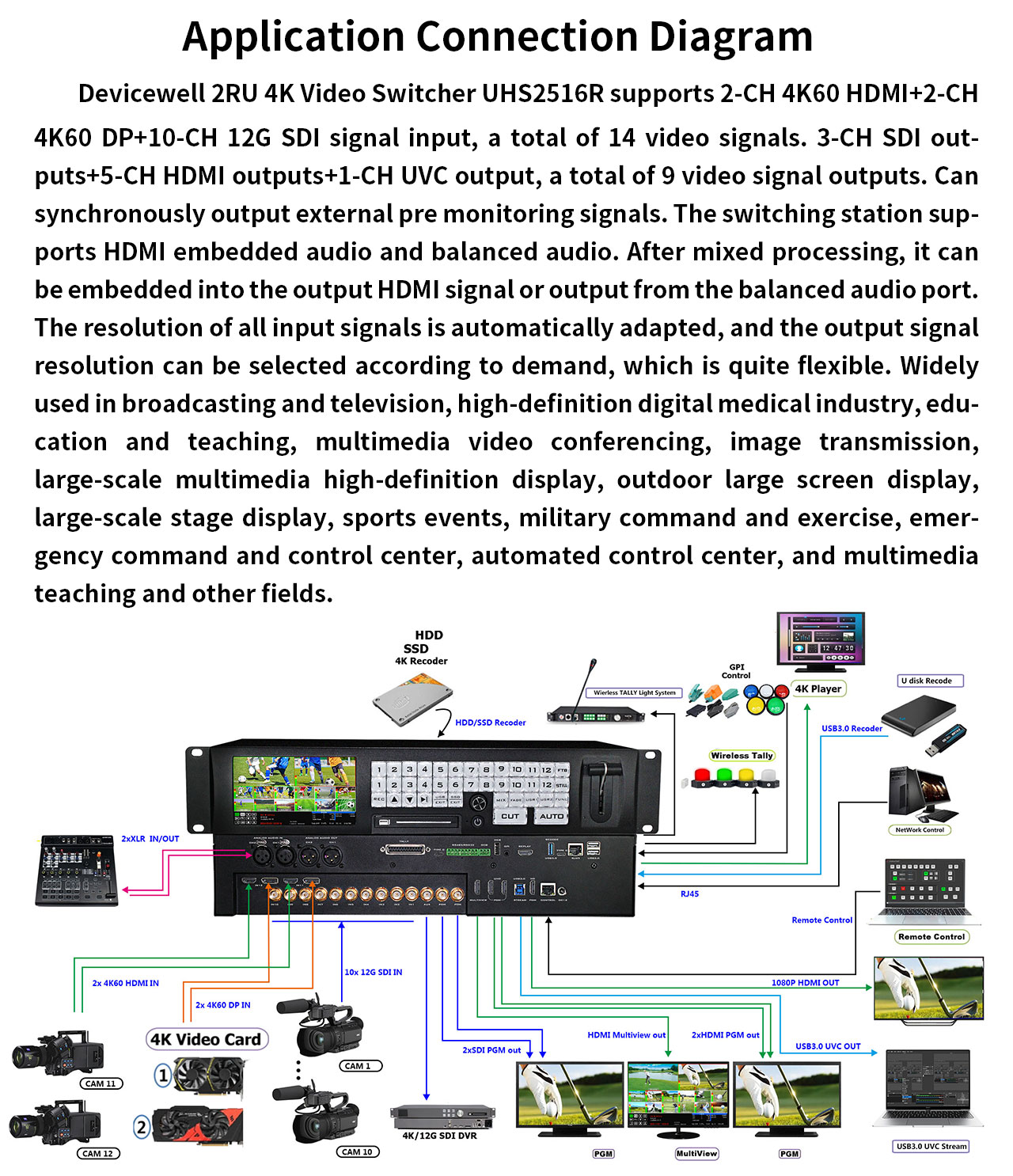

Devicewell 2RU 4K Video Switcher UHS2516R supports 2-CH 4K60 HDMI+2-CH 4K60 DP+10-CH 12G SDI signal input, a total of 14 video signals. 3-CH SDI outputs+5-CH HDMI outputs+1-CH UVC output, a total of 9 video signal outputs. Can synchronously output external pre monitoring signals. The switching station supports HDMI embedded audio and balanced audio. After mixed processing, it can be embedded into the output HDMI signal or output from the balanced audio port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected according to demand, which is quite flexible. Widely used in broadcasting and television, high-definition digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large screen display, large-scale stage display, sports events, military command and exercise, emergency command and control center, automated control center, and multimedia teaching and other fields.



Parameters

Product Name	4K UHD Switcher
Video Signal Input	Input signal	10-CH 12G SDI+2-CH 4K60 HDMI+2-CH 4K60DP input
	SDI rate	1.5G、3G、6G、12G
	Connector	Standard
	Signal amplitude	800mV±10%(SDI/HDMI/DP)
	Impedance	75 Ω(SDI) 100 Ω(HDMI) 100 Ω(DP)
	Balanced	Adaptive
	SDI input	10x 10bit 720p、1080i、1080p、2160p
	SDI specification	SMPTE 292M、SMPTE 296M、SMPTE 424M、SMPTE 425M A-level、SMPTE 2081‑1、SMPTE 2081‑10、SMPTE 2082‑1 and SMPTE 2082‑10、SMPTE 2082‑12
	HD video format	720p50、720p59.94、720p60 1080i50、1080i59.94、1080i60 1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p60
	Ultra HD video format	2160p23.98、2160p24、2160p25、2160p29.97、2160p30、2160p50、2160p59.94、2160p60
Video Signal Output	Video output	PGM output：2x12G-SDI+3x4K60-HDMI + 1x1080P HDMI Multi-screen output： 1xHDMI
	Multiview output	1x HDMI
	Screen display	12x UHD DISPLAY
	SDI video output	3 x 10bit 1080p、2160p
	UHD video output	3840x2160、1920x1080
	Clock recovery	Support
Control Parameter	Remote control	GPI
	Connection port	3.5mm port
	Network control	UDP
	Connection port	RJ45,100M
Common Parameters	Power supply	12V/DC
	Power	<80W
	Size	480*200*85mm
	Weight	3.8Kg
	Audio input	2-CH XLR audio in
	Audio output	2-CH XLR audio out
	Keying/streaming	YES
	SSD hard drive recording	YES
	PIP/POP	YES
	Special effects	T-BAR/AUTO /CUT/ FTB/STILL
	Transitions	MIX /FADE
	Camera control	MIX:12-WAY CAMERA CONTROL
	Screen display	12x UHD DISPLAY
	Control Panel	Supports on-site production and integrates multiple buttons
	Operating temperature	0℃~50℃ No condensation
	Storage temperature	-20℃~75℃
	Working humidity	20%~70%RH
	Storage humidity	0%~90%RH，No condensation
