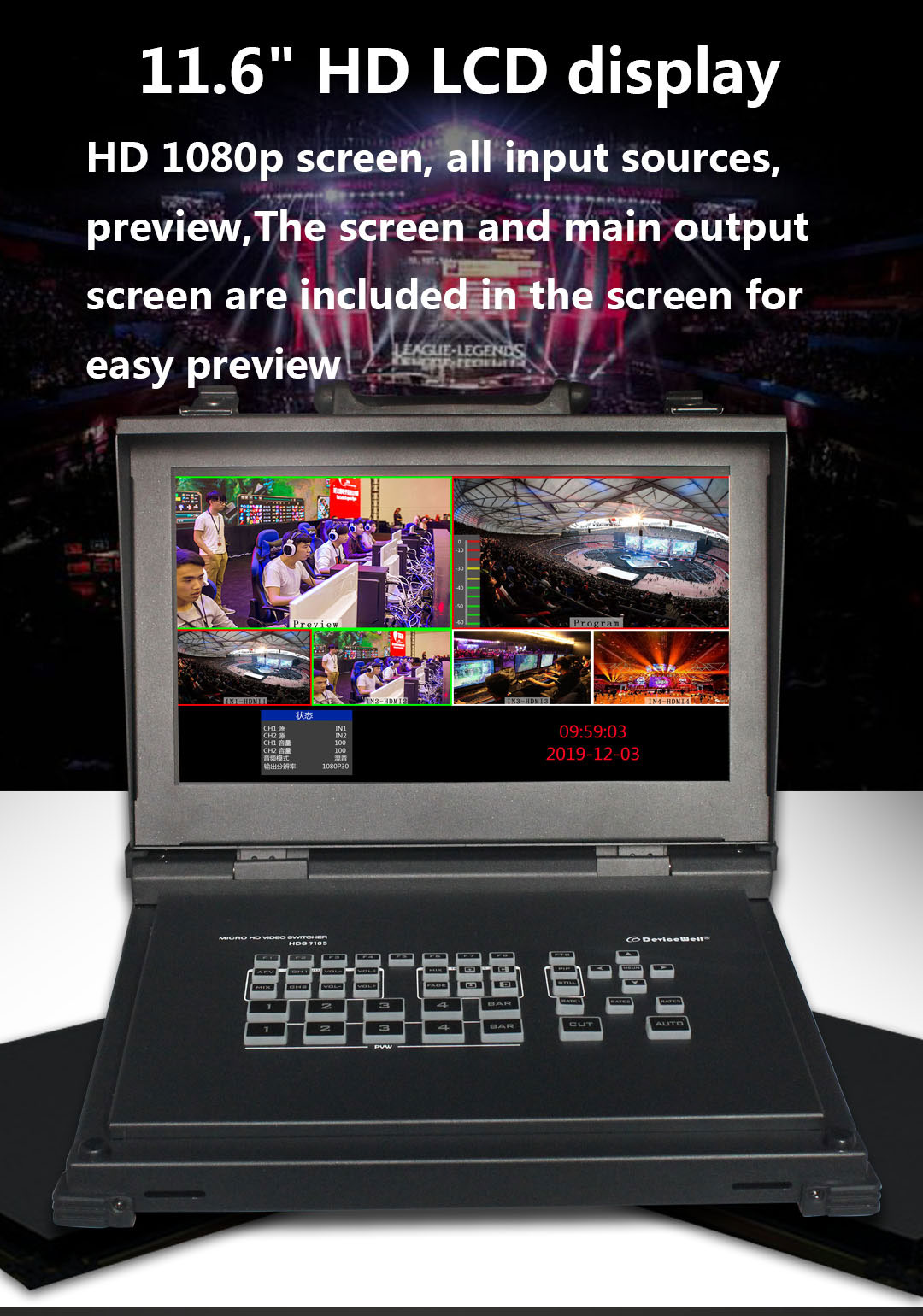

11.6" HD LCD display

HD 1080p screen, all input sources, preview,The screen and main output screen are included in the screen for easy preview

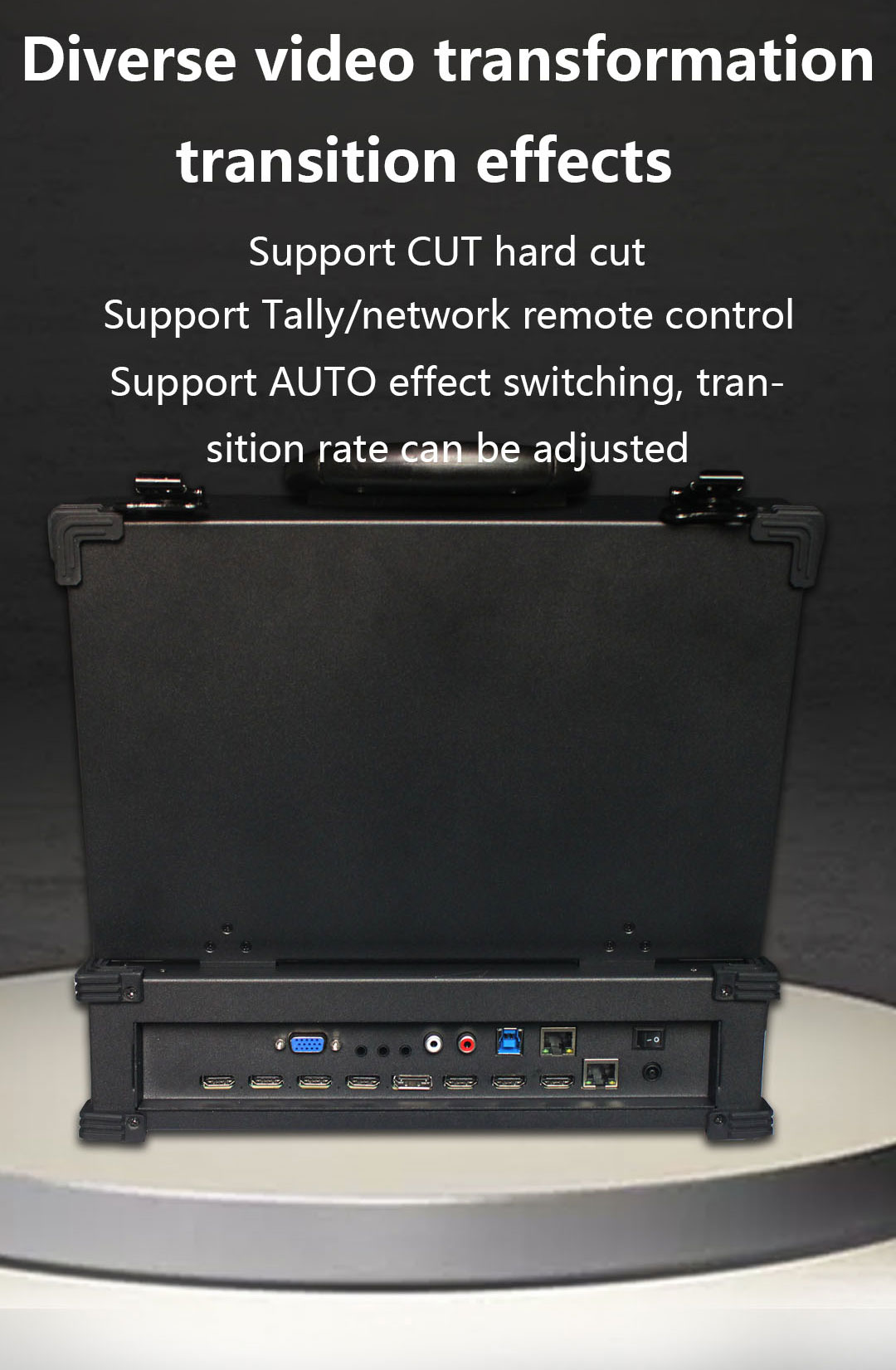

Diverse video transformation transition effects

Support CUT hard cut

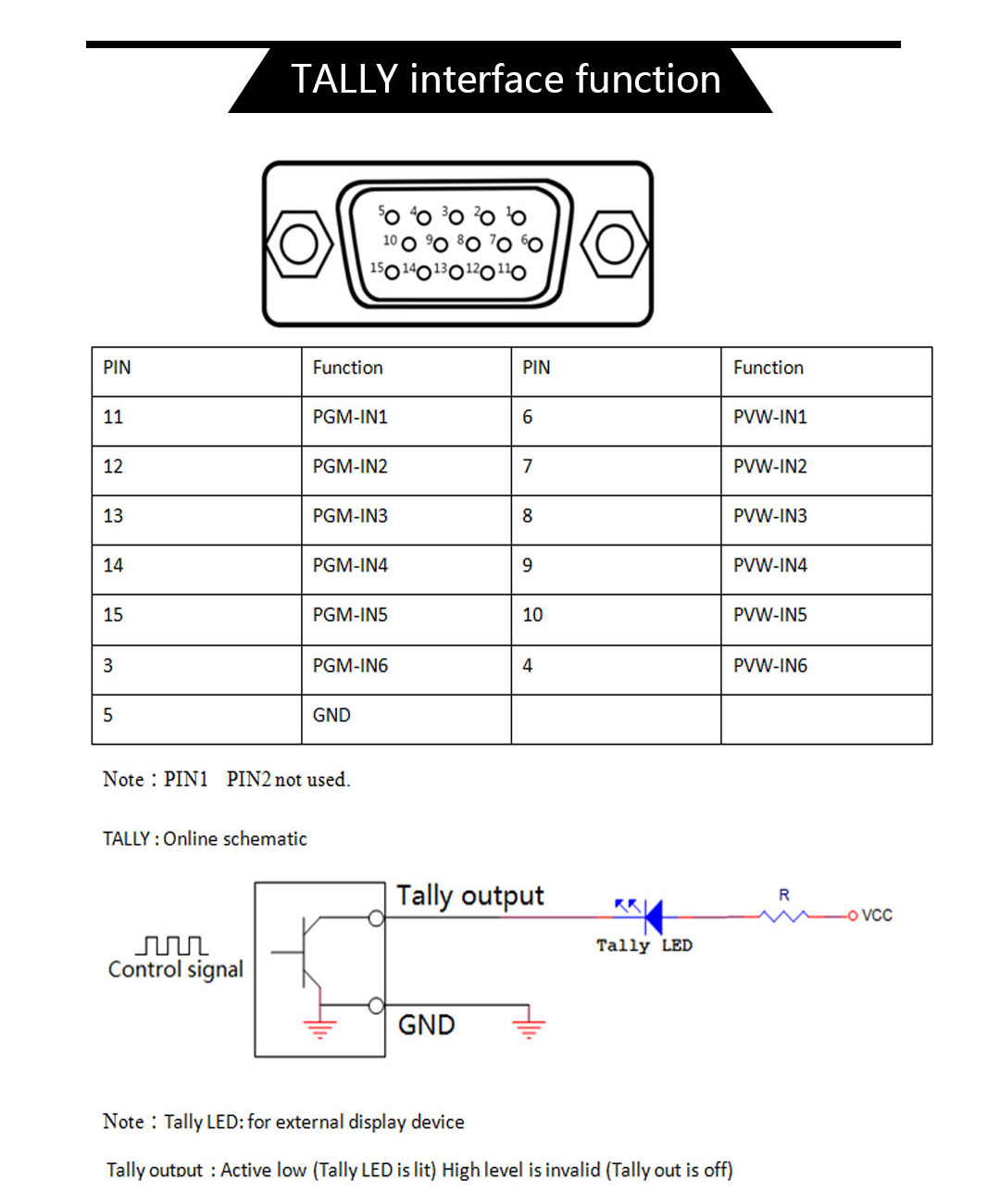

Support Tally/network remote control

Support AUTO effect switching, transition rate can be adjusted

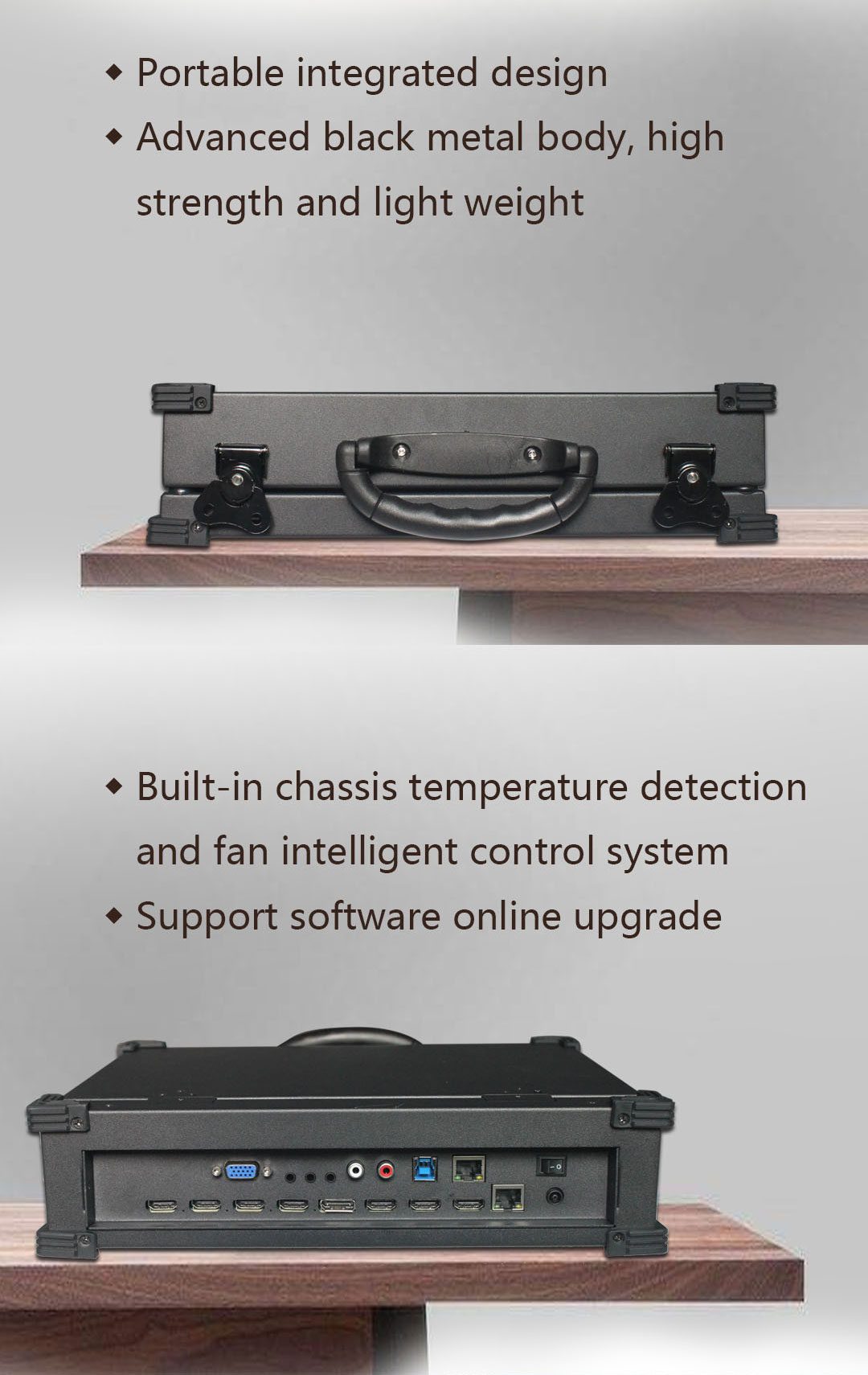

◆ Portable integrated design

◆ Advanced black metal body, high    strength and light weight

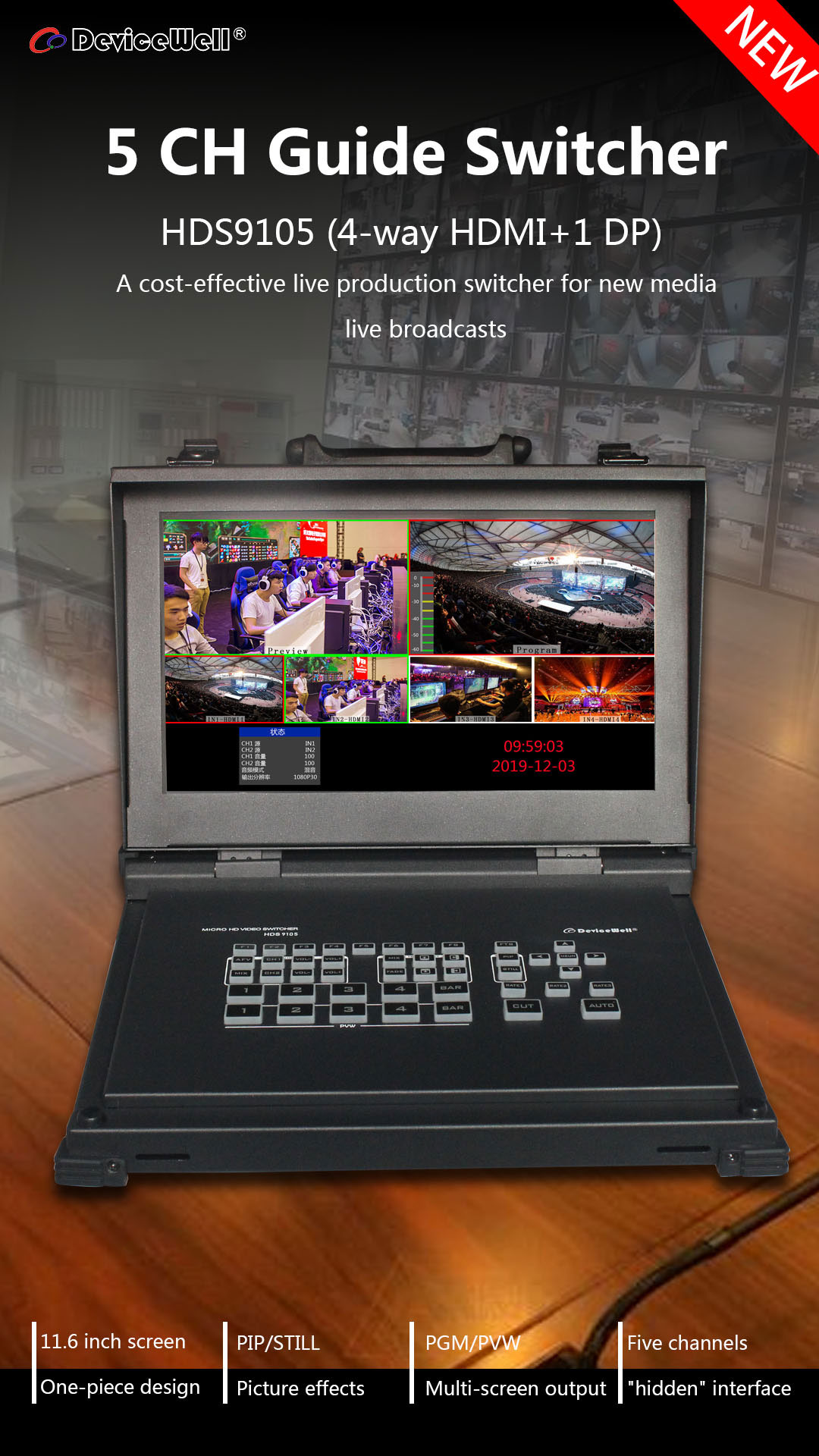

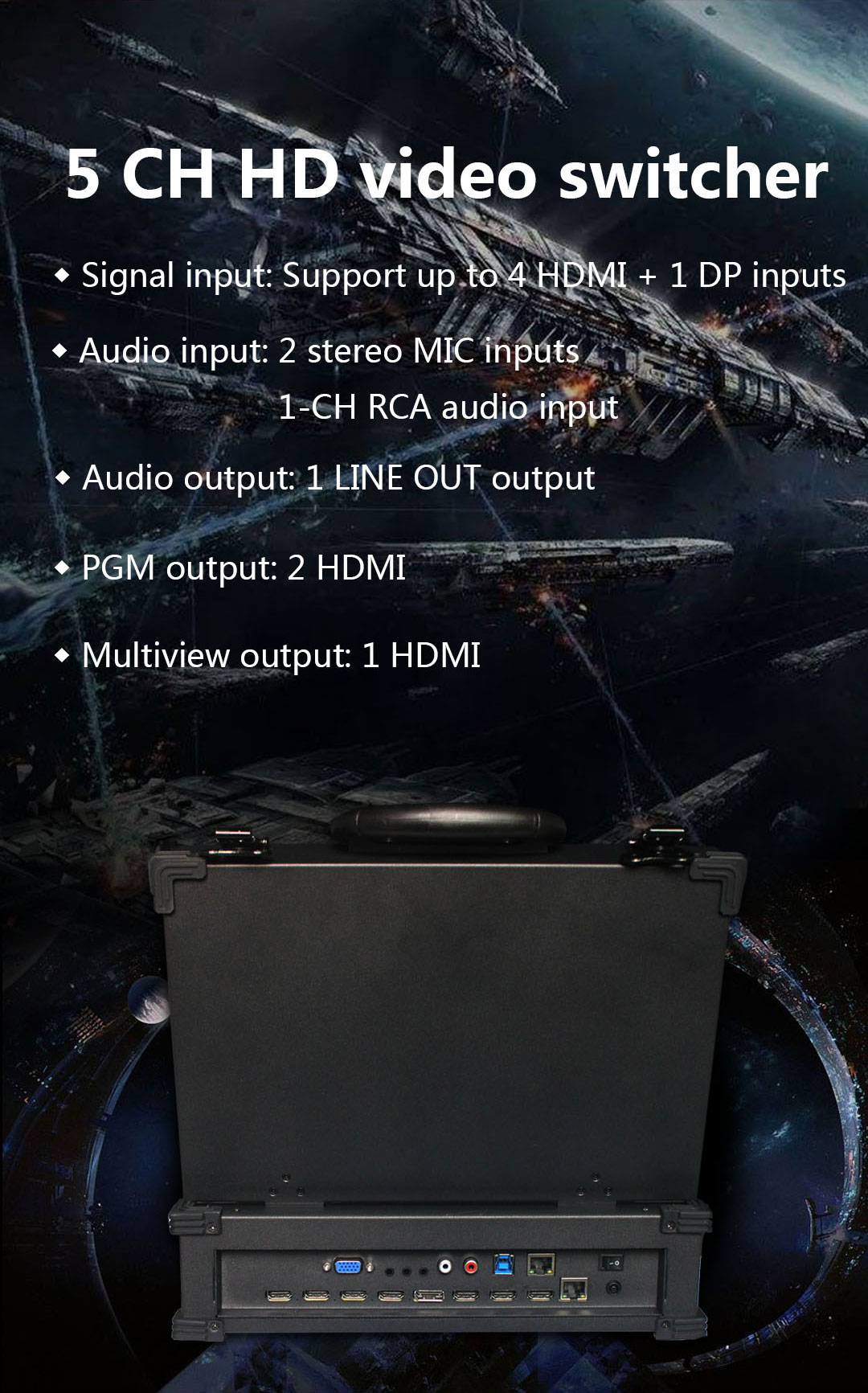

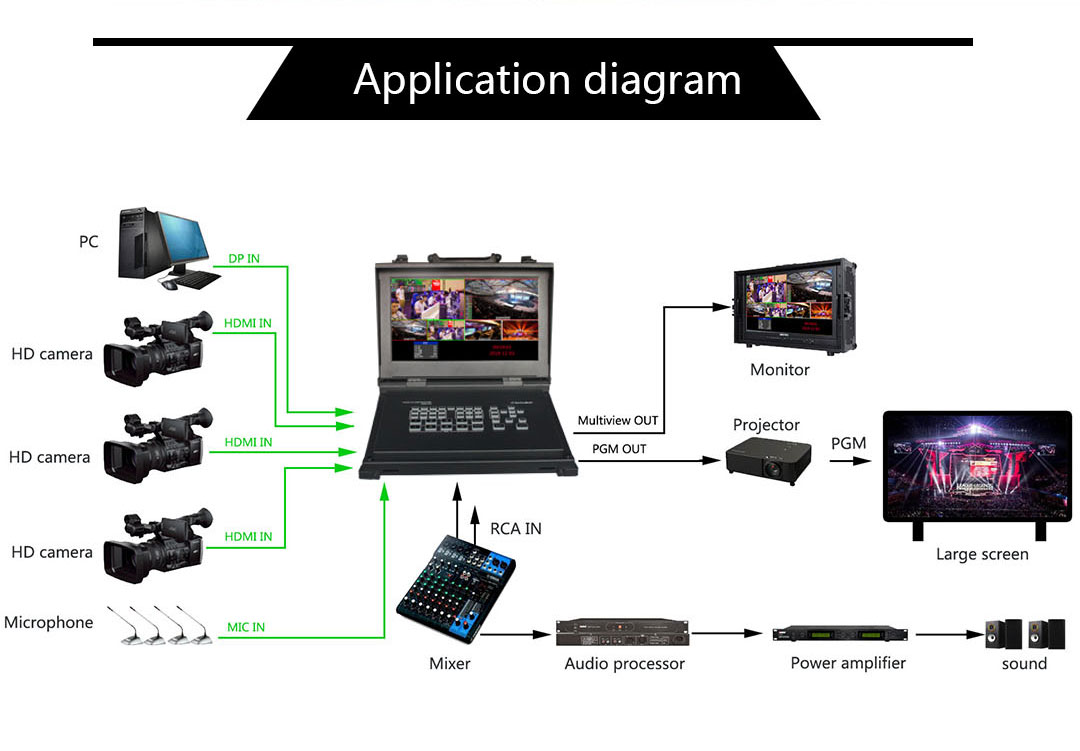

5 CH HD video switcher

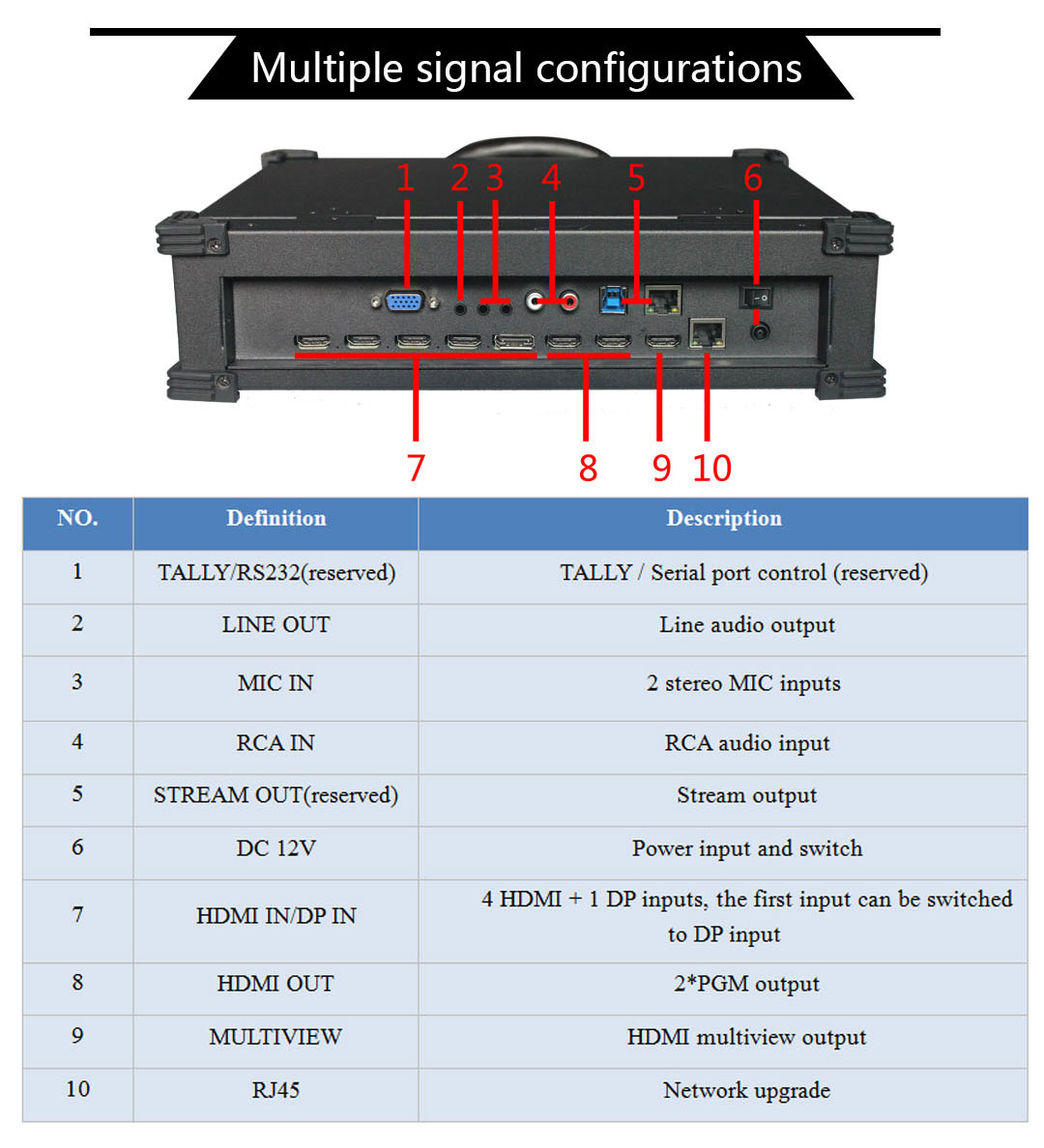

◆ Signal input: Support up to 4 HDMI + 1 DP inputs

◆ Audio input: 2 stereo MIC inputs ,1-CH RCA audio input

◆ Audio output: 1 LINE OUT output

◆ PGM output: 2 HDMI

◆ Multiview output: 1 HDMI

· Users’ Manual

· Instructions for USB interface to Mshow software

· Instructions for USB interface to OBS software

· HDS7105



Downloading the instructions of the  Switchers of Devicewell



Serial No.	Material name	Version	modification date	Description/Remarks
1	HDS9105 Specification download	1.0	Sep. 9, 2024
2	HDS9105Photos download	1.0	Sep. 9, 2024
3	Others
