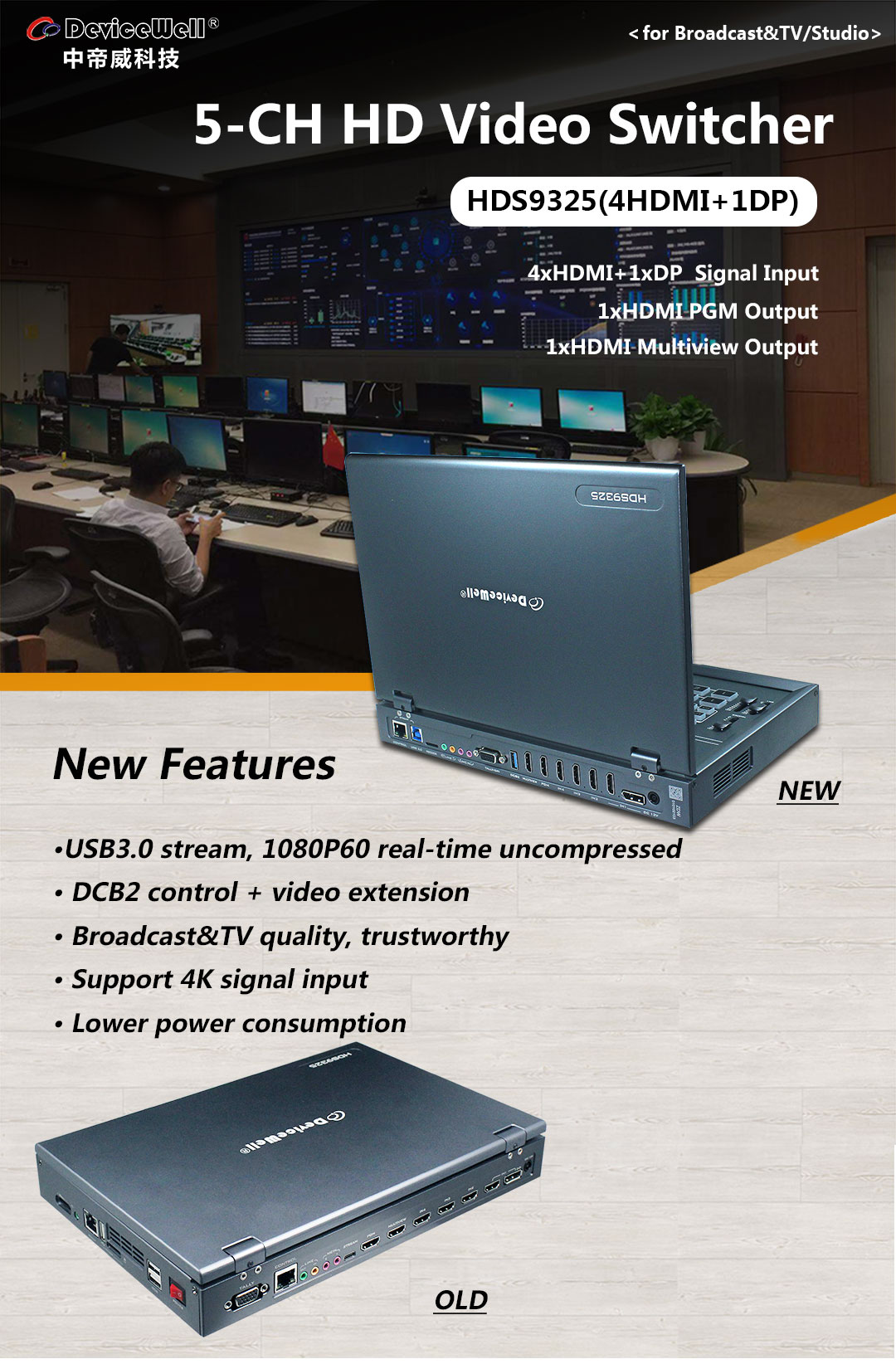

Product Features

• Portable integrated design
• Support 4K Signal Input
• Aluminum alloy material, high strength and light weight
• Broadcast & TV standard Tally interface
• Support RJ45 remote control
• Support DCB control
• Support USB3.0 interface UVC output
• 2xMIC inputs
• 1xLINE IN input
• 1xLINE OUT output
• 4xHD/DVI/XVI+1xDP input
• MULTIVIEW output：1xHD/DVI/XVI
• PGM output：1xHD/DVI/XVI
• Audio follow and mix function, HDMI audio de-embedding
• MIX / FADE and other special effects transition
• CUT hard cutting and AUTO special effect switching
• CUT hard cutting and AUTO special effect switching
• Color bar output
• One-key screen freezing function
• Support PIP function
• FTB emergency blackout function
• Support GPI control
• Support pedal, control handle and other input
• 1 group of KEY, support Luma key, chroma key,key image and superimposed character function

GPI control, foot pedal, control handle, etc.

GPI custom interface, convenient for users to remotely control and customize connected devices.

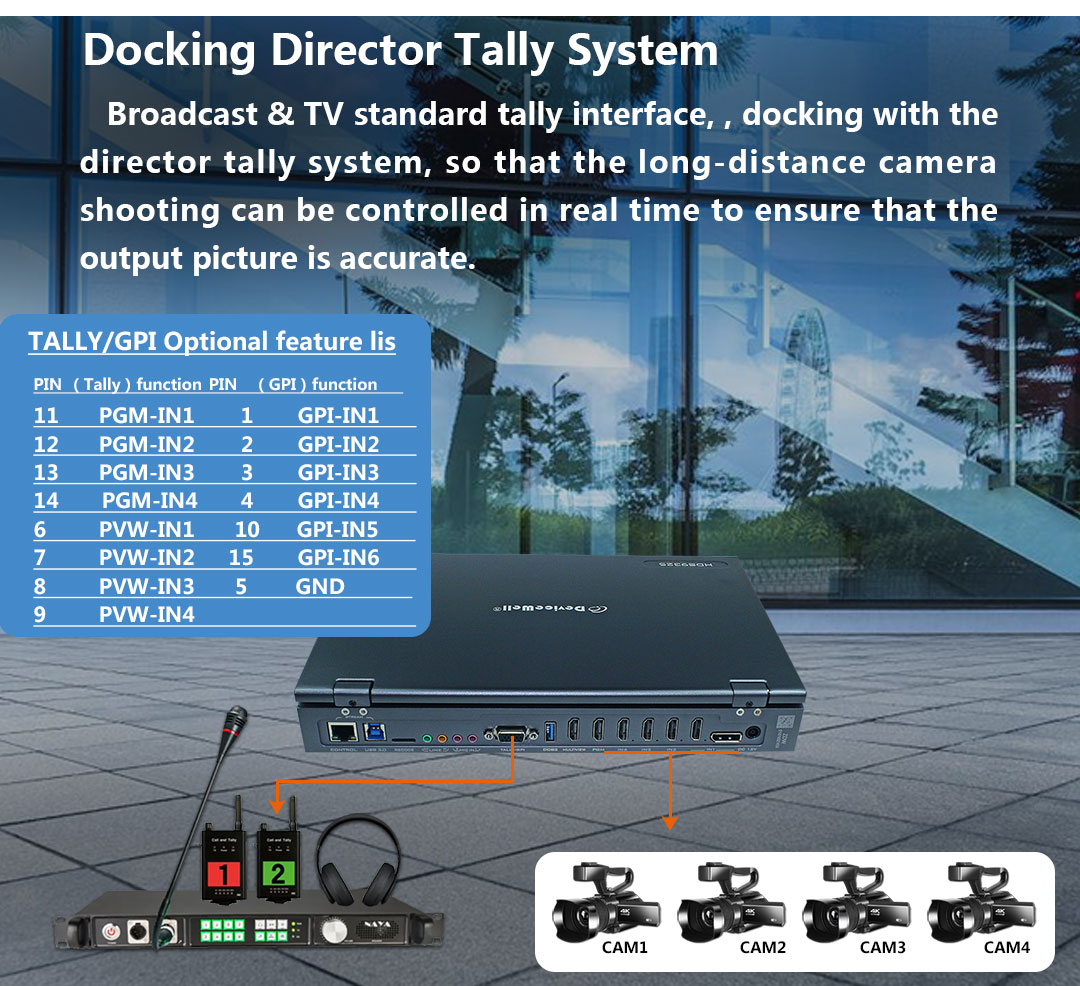

Docking Director Tally System

 Broadcast & TV standard tally interface, HDS9325 is equipped with DB-15 tally interface, docking with the director tally system, so that the long-distance camera shooting can be controlled in real time to ensure that the output picture is accurate.

USB3.0 STREAM

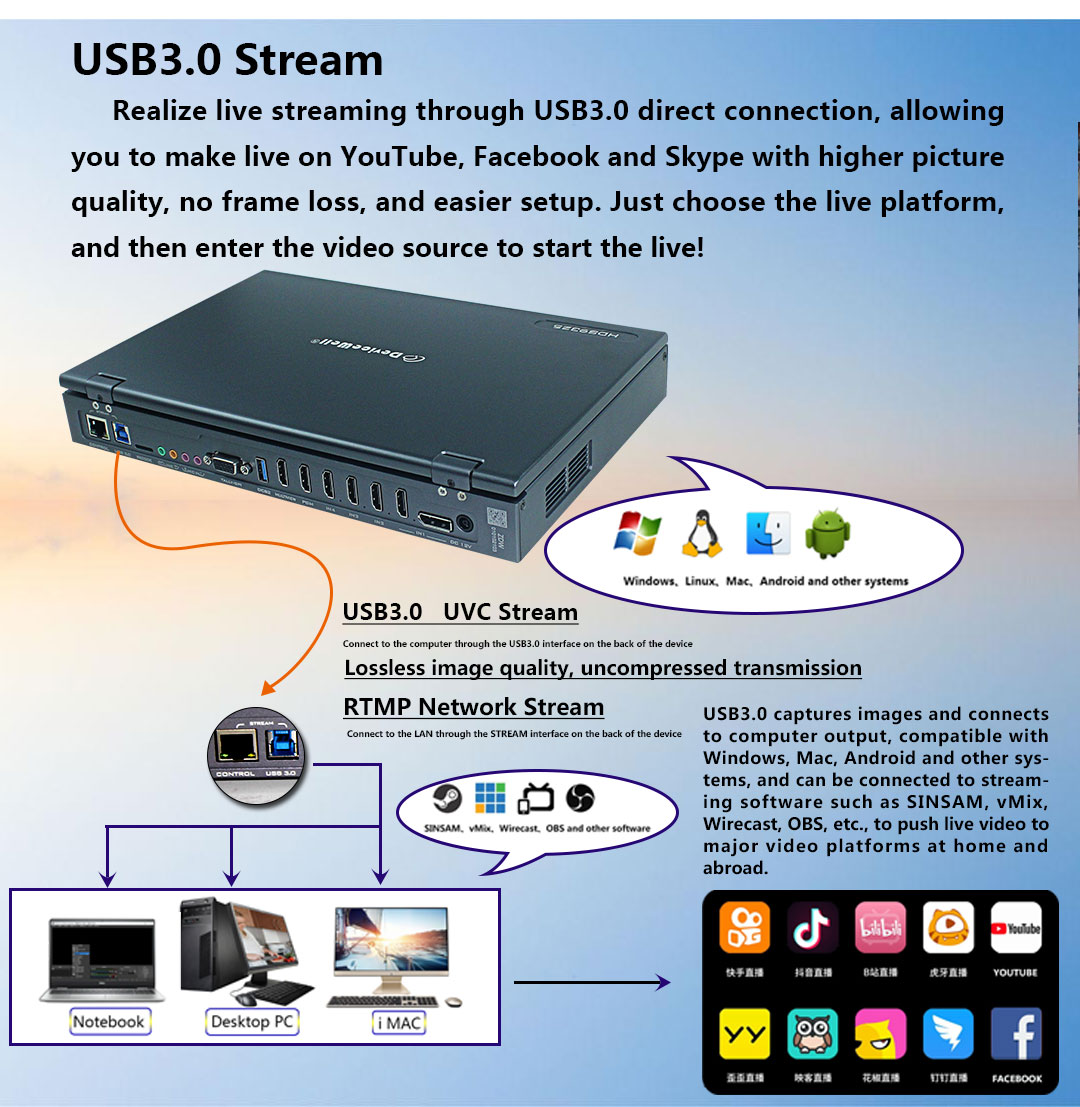

Realize live streaming through USB3.0 direct connection, allowing you to make live on YouTube, Facebook and Skype with higher picture quality, no frame loss, and easier setup. Just choose the live platform, and then enter the video source to start the live!

DCB  Flexible External Control Port

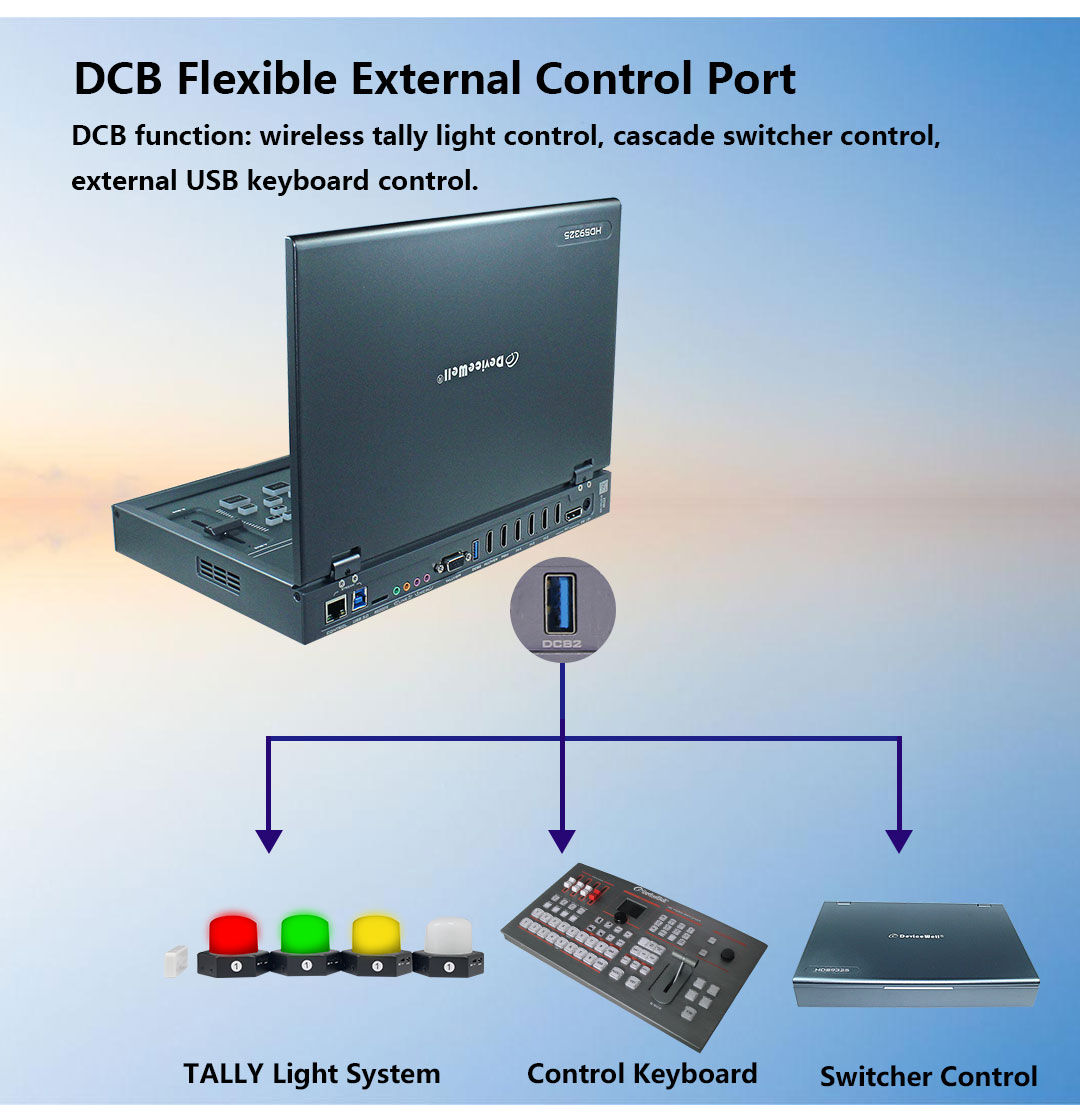

DCB function: wireless tally light control, cascade switcher control, external USB keyboard control.

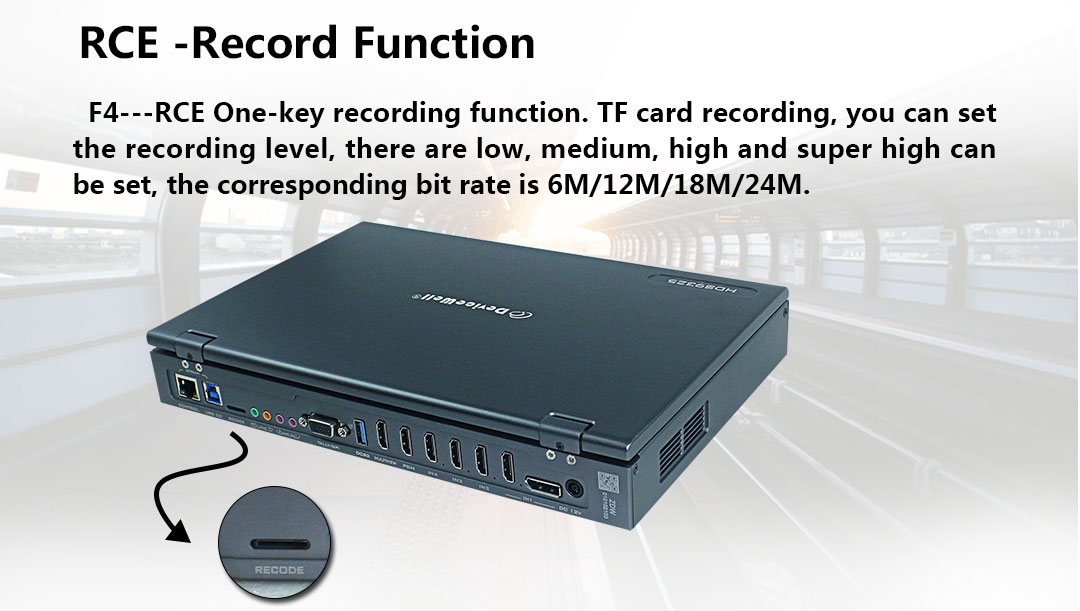

RCE -Record Function

F4---RCE One-key recording function. TF card recording, you can set the recording level, there are low, medium, high and super high can be set, the corresponding bit rate is 6M/12M/18M/24M.

PC Remote Control

The new program can be updated through the network port, and the special PC control software can be used to remotely control the device on the computer side, which supports remote control of screen switching, transition effects, audio settings, etc.

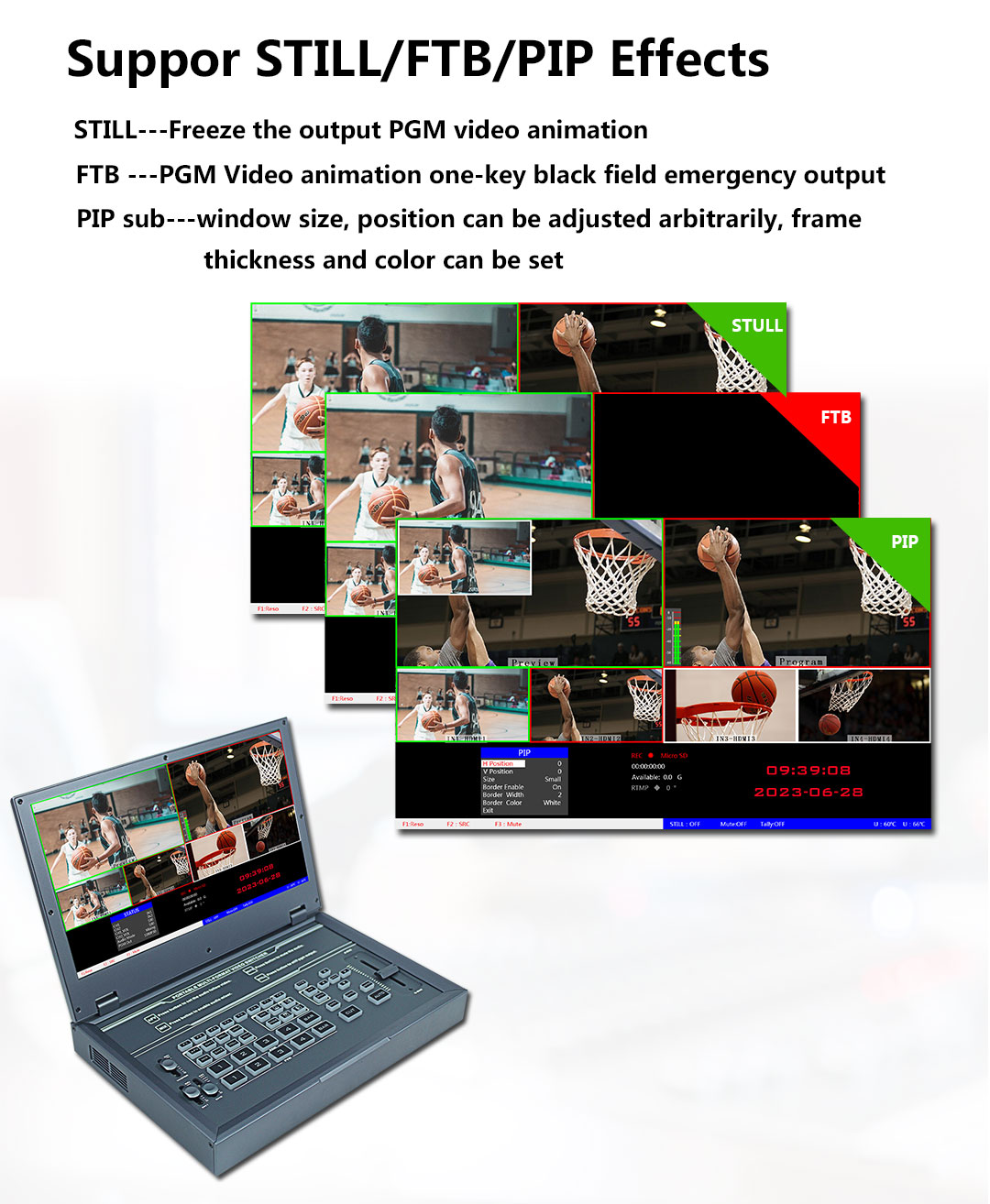

Suppor STILL/FTB/PIP Effects

 STILL---Freeze the output PGM video animation

FTB ---PGM Video animation one-key black field emergency output

PIP ---window size, position can be adjusted arbitrarily, frame thickness and color can be set

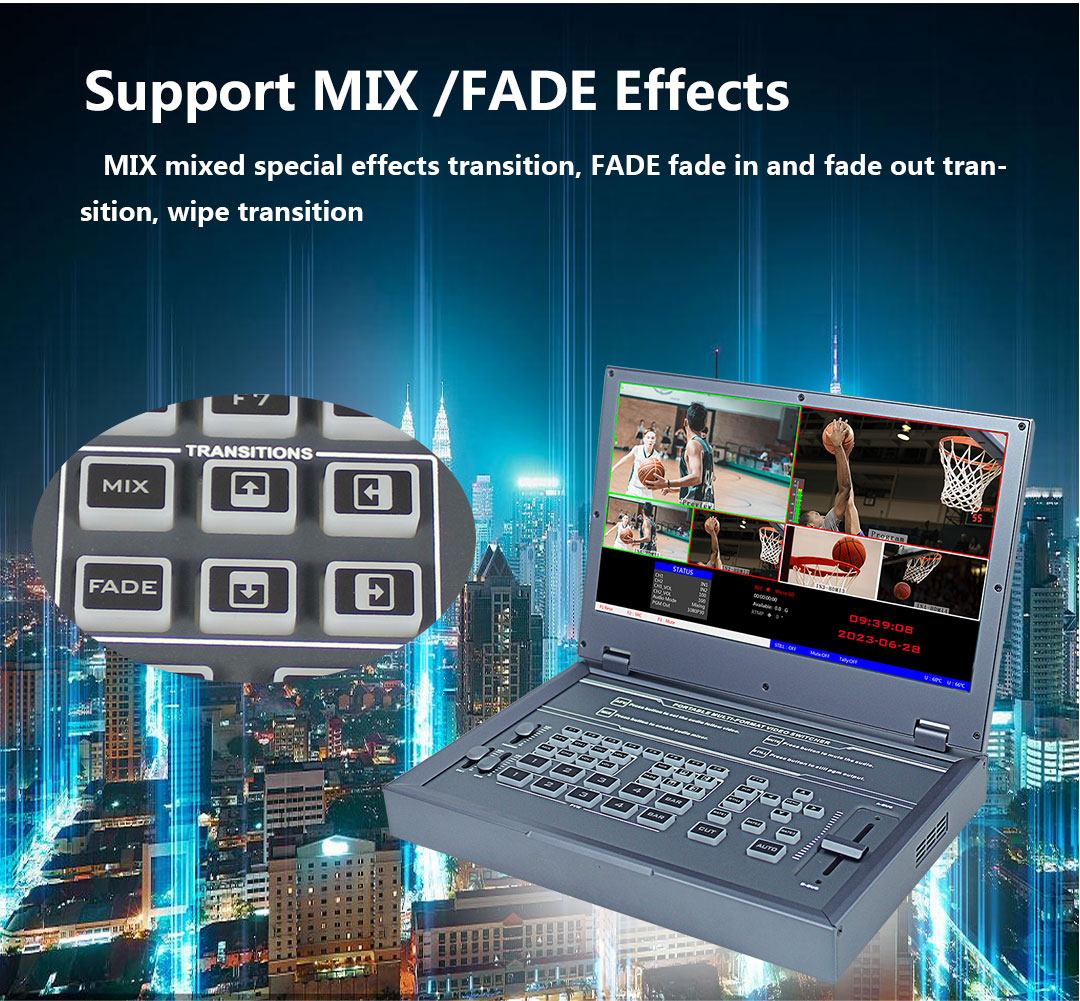

Support MIX /FADE Effects

   MIX mixed special effects transition, FADE fade in and fade out transition, wipe transition.

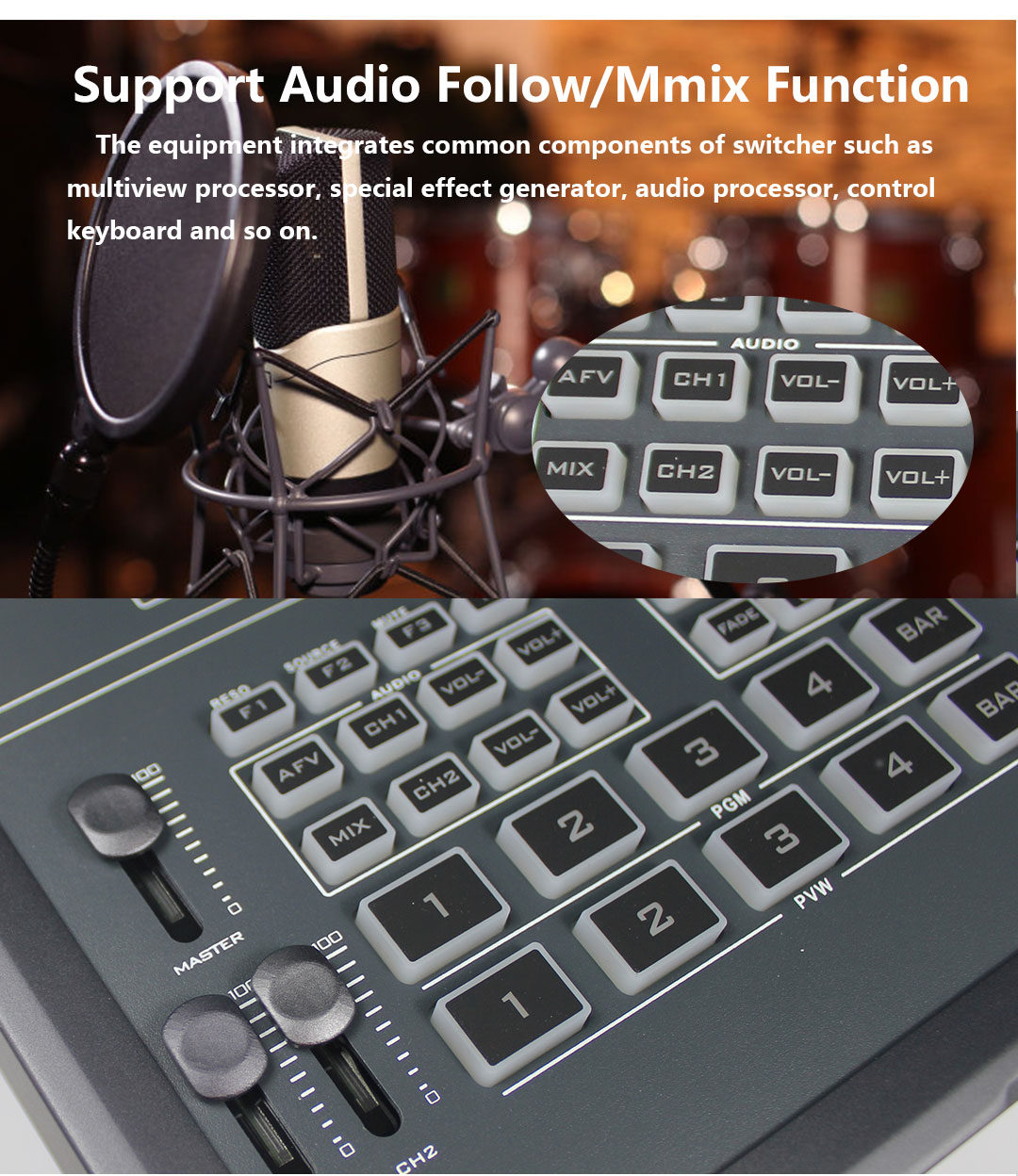

Support Audio Follow/Mmix Function

    The equipment integrates common components of switcher such as multiview processor, special effect generator, audio processor, control keyboard and so on.

Multiview out+PGM out

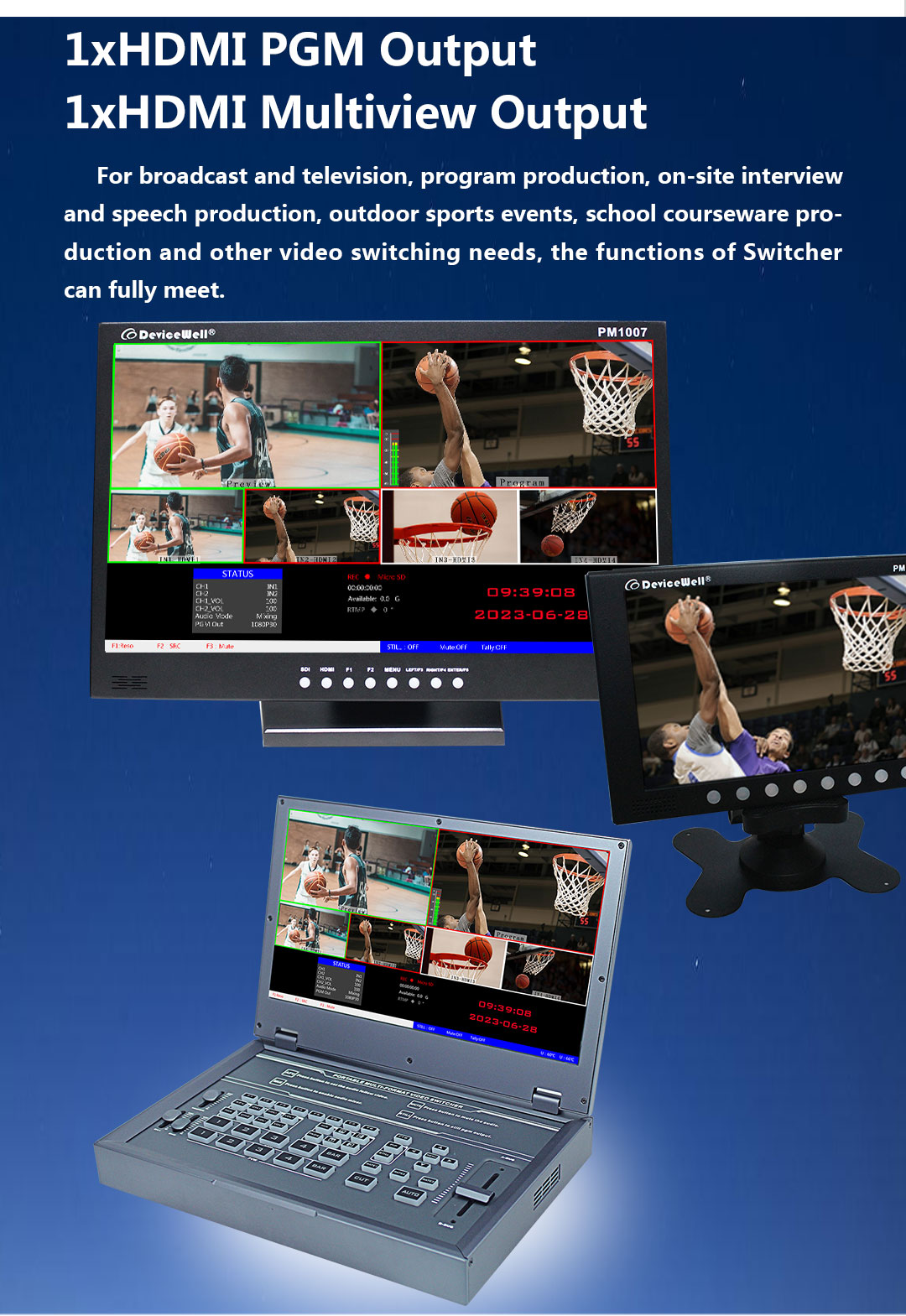

 For broadcast and television, program production, on-site interview and speech production, outdoor sports events, school courseware production and other video switching needs, the functions of Switcher can fully meet.

Adjustable Transition Rate

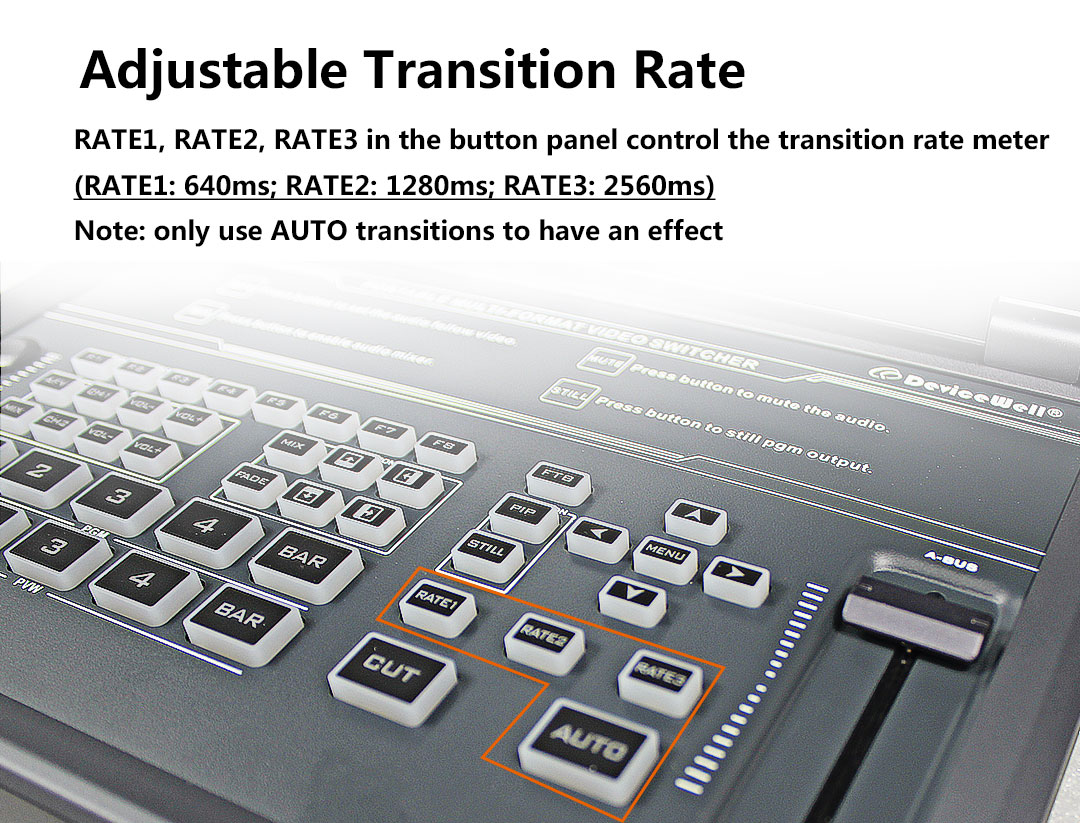

RATE1, RATE2, RATE3 in the button panel control the transition rate meter (RATE1: 640ms; RATE2: 1280ms; RATE3: 2560ms) Note: only use AUTO transitions to have an effect.

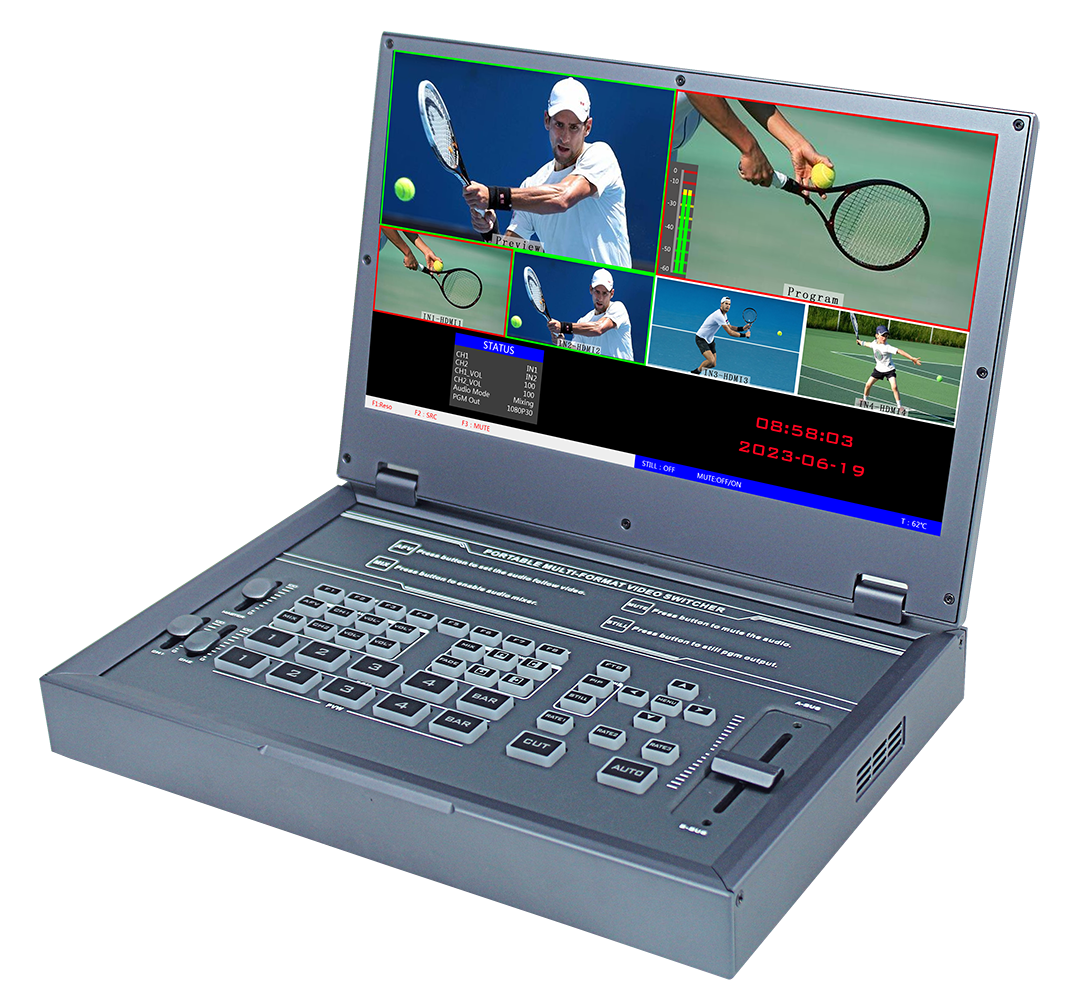

Broadcast level UHD video switcher

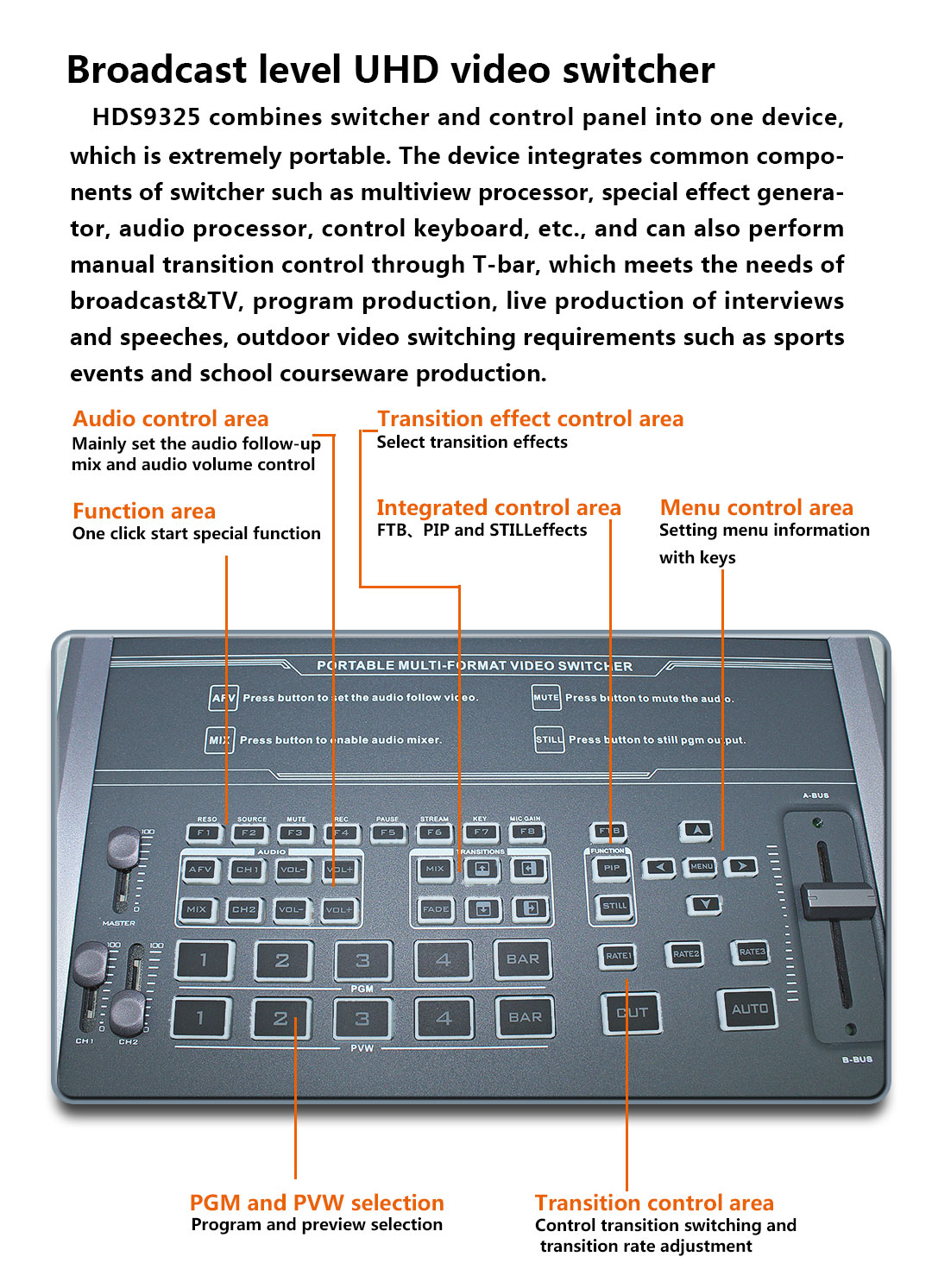

HDS9325 combines switcher and control panel into one device, which is extremely portable. The device integrates common components of switcher such as multiview processor, special effect generator, audio processor, control keyboard, etc., and can also perform manual transition control through T-bar, which meets the needs of broadcast&TV, program production, live production of interviews and speeches, outdoor video switching requirements such as sports events and school courseware production.

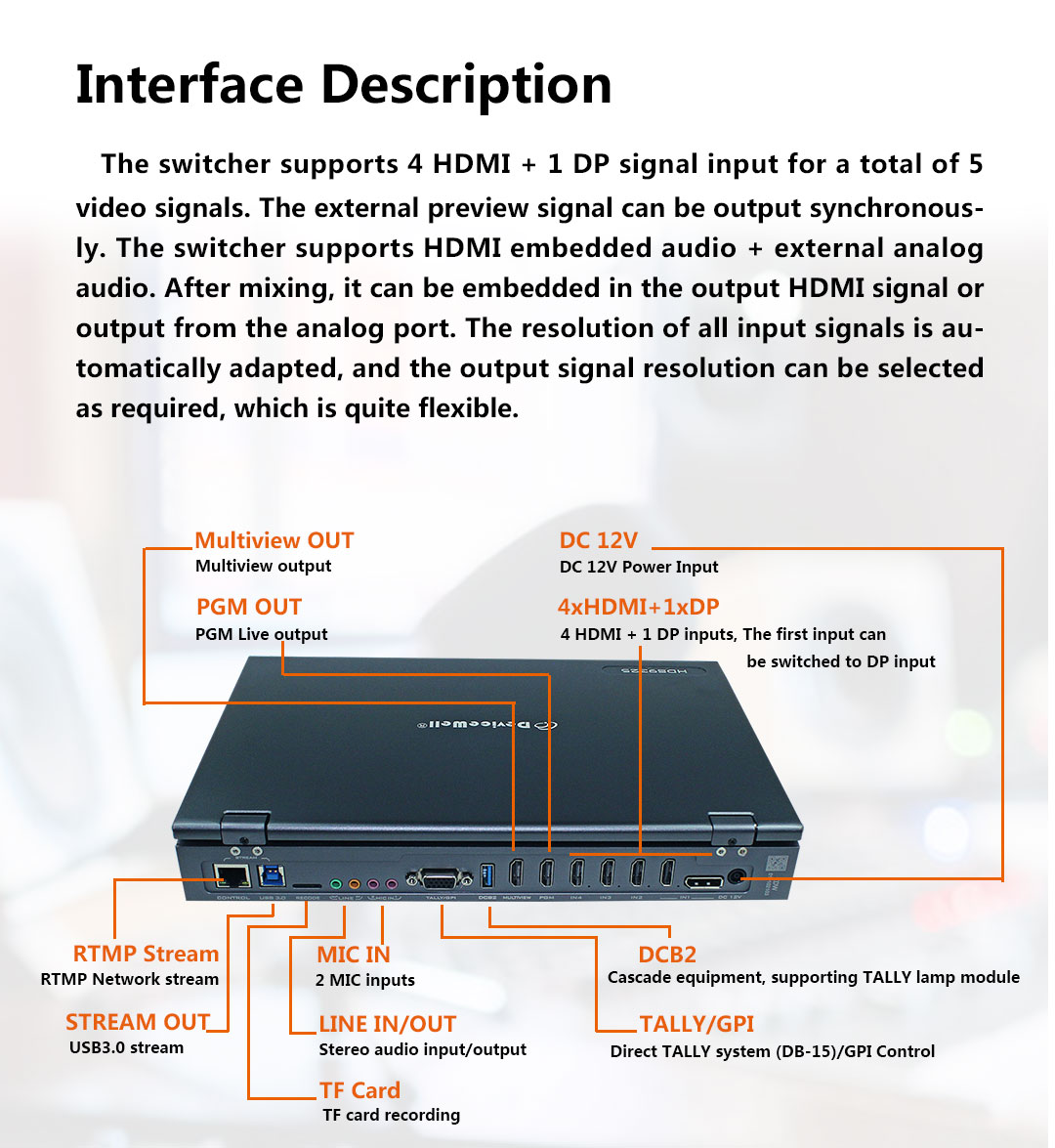

Interface Description

The switcher supports 4 HD/DVI/XVI+ 1 DP signal input for a total of 5 video signals. The external preview signal can be output synchronously.  After mixing, it can be embedded in the output HD/DVI/XVI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, which is quite flexible.

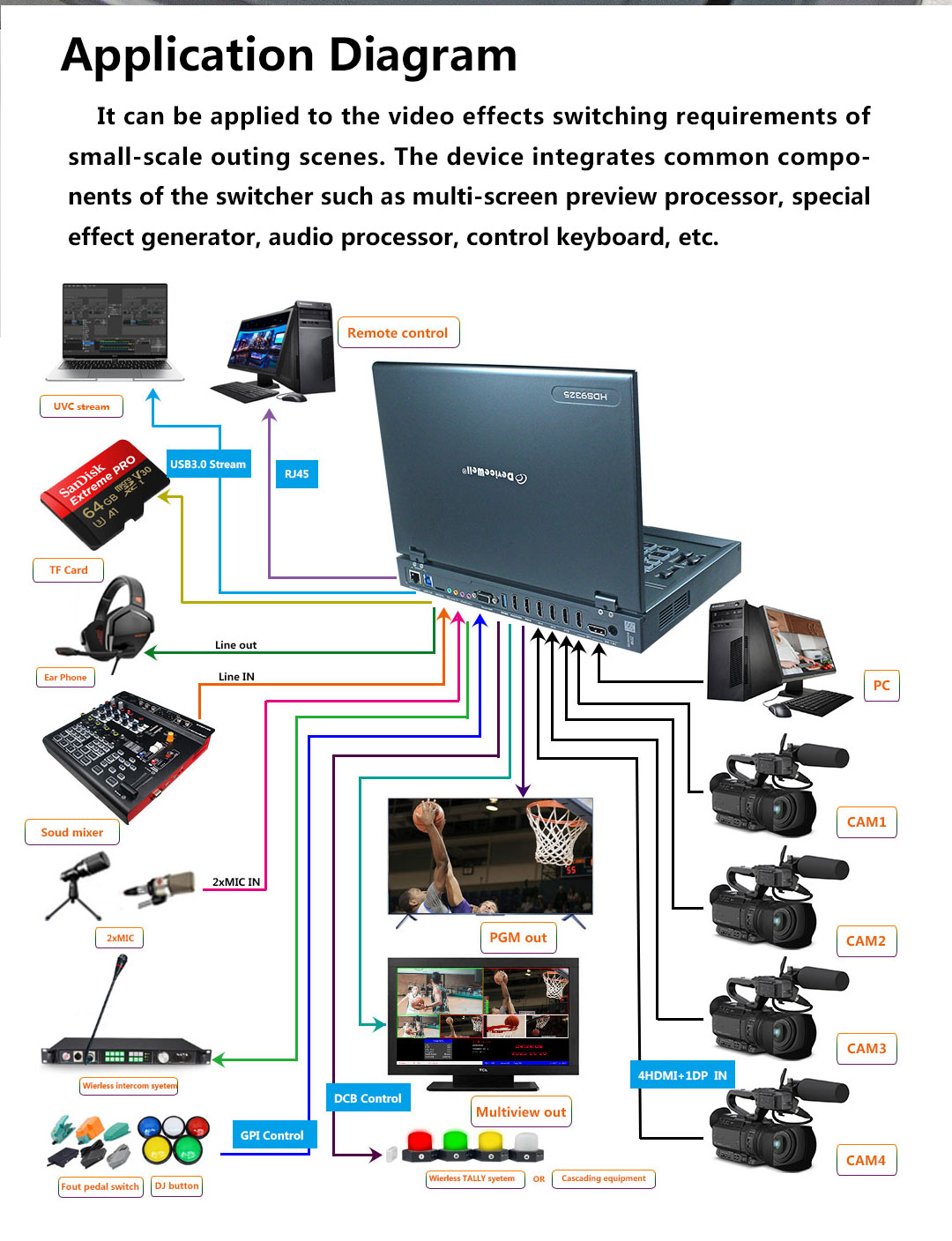

Application Diagram

It can be applied to the video effects switching requirements of small-scale outing scenes. The device integrates common components of the switcher such as multi-screen preview processor, special effect generator, audio processor, control keyboard, etc.

Application

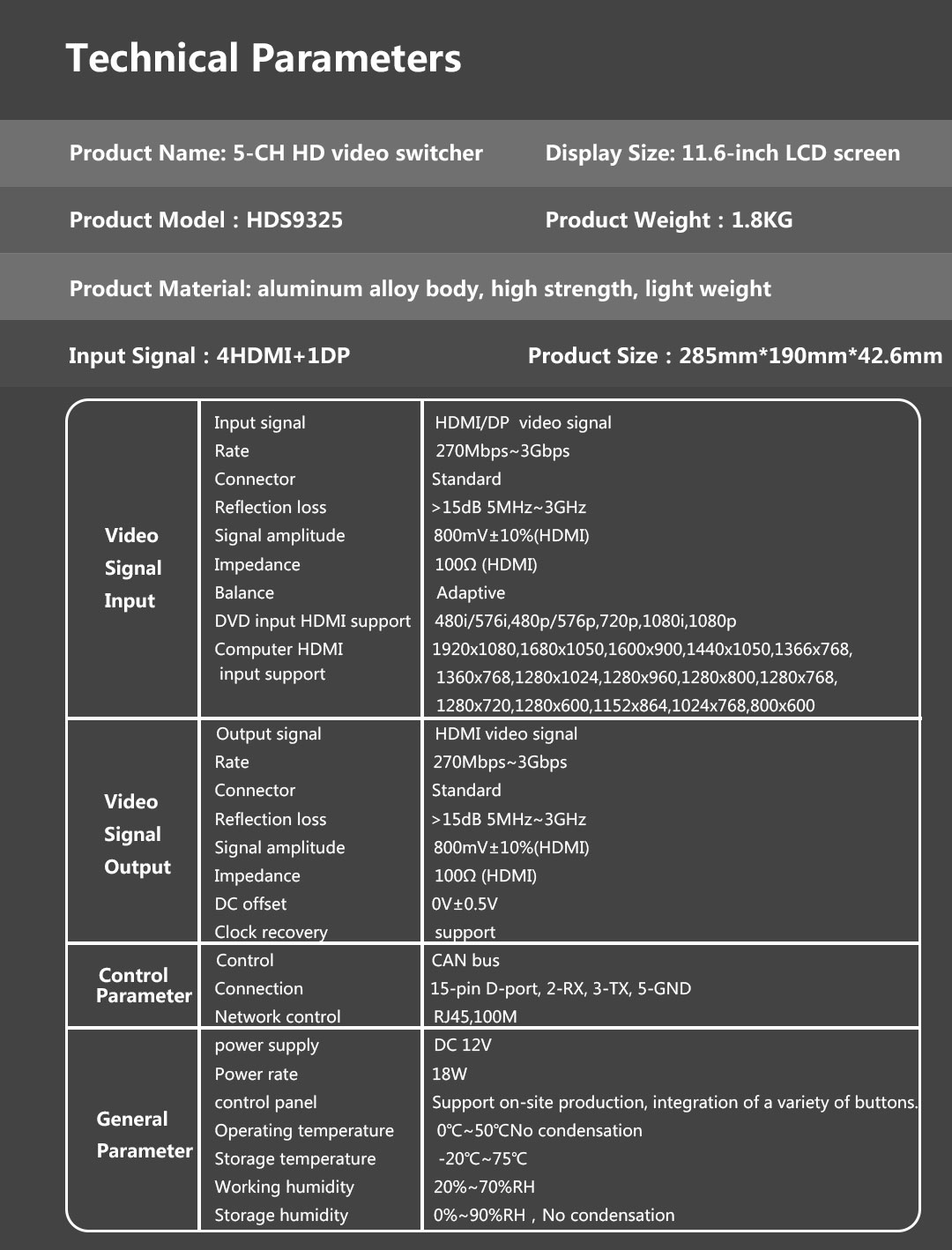

Technical Parameters

Serial No.

Material name

Version

modification date

Description/Remarks

1

HDS9325 Specification Download

1.0

June 30, 2023

Initial Issue

2

HDS9325 Photos Download

1.0

June 30, 2023

3

Others
