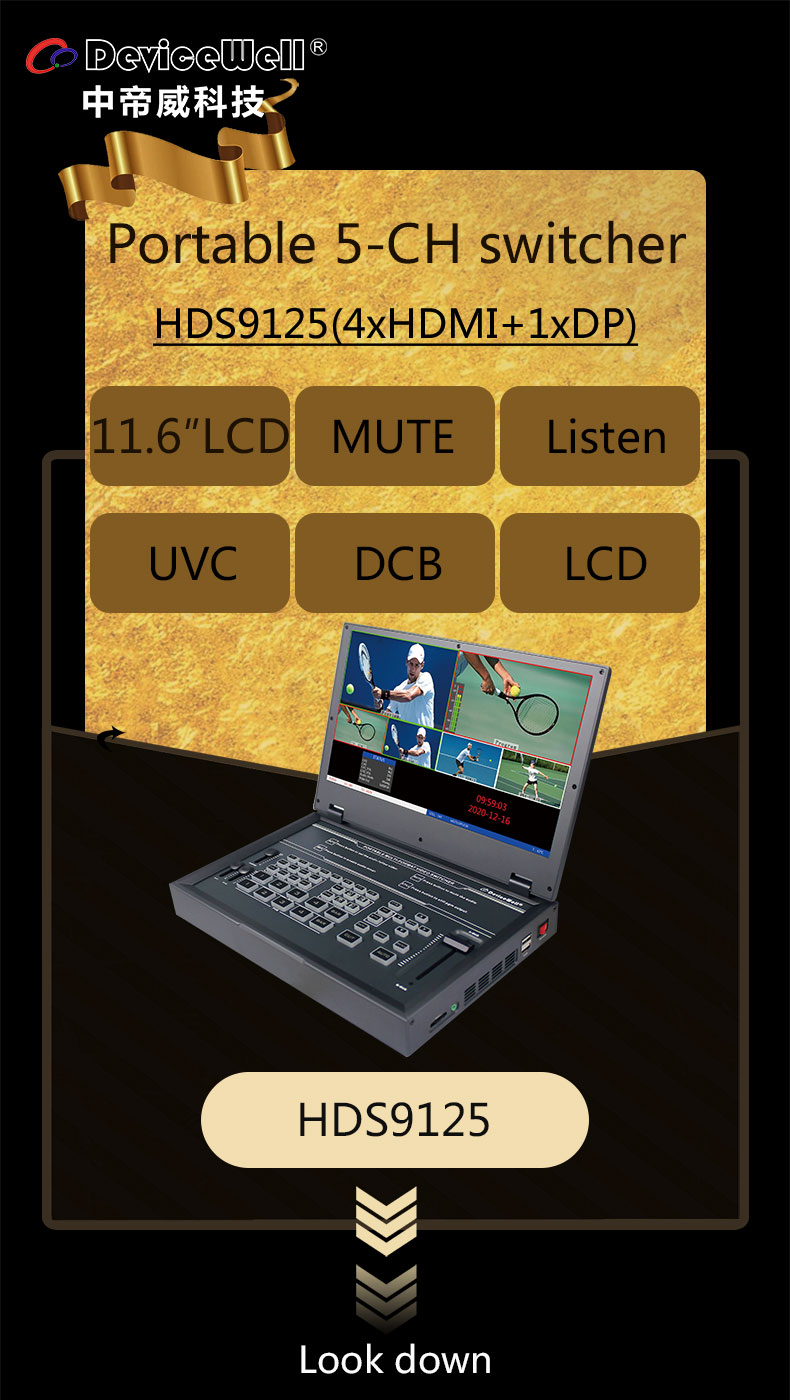

5-channel HD video switcher HDS9125



Product Overview

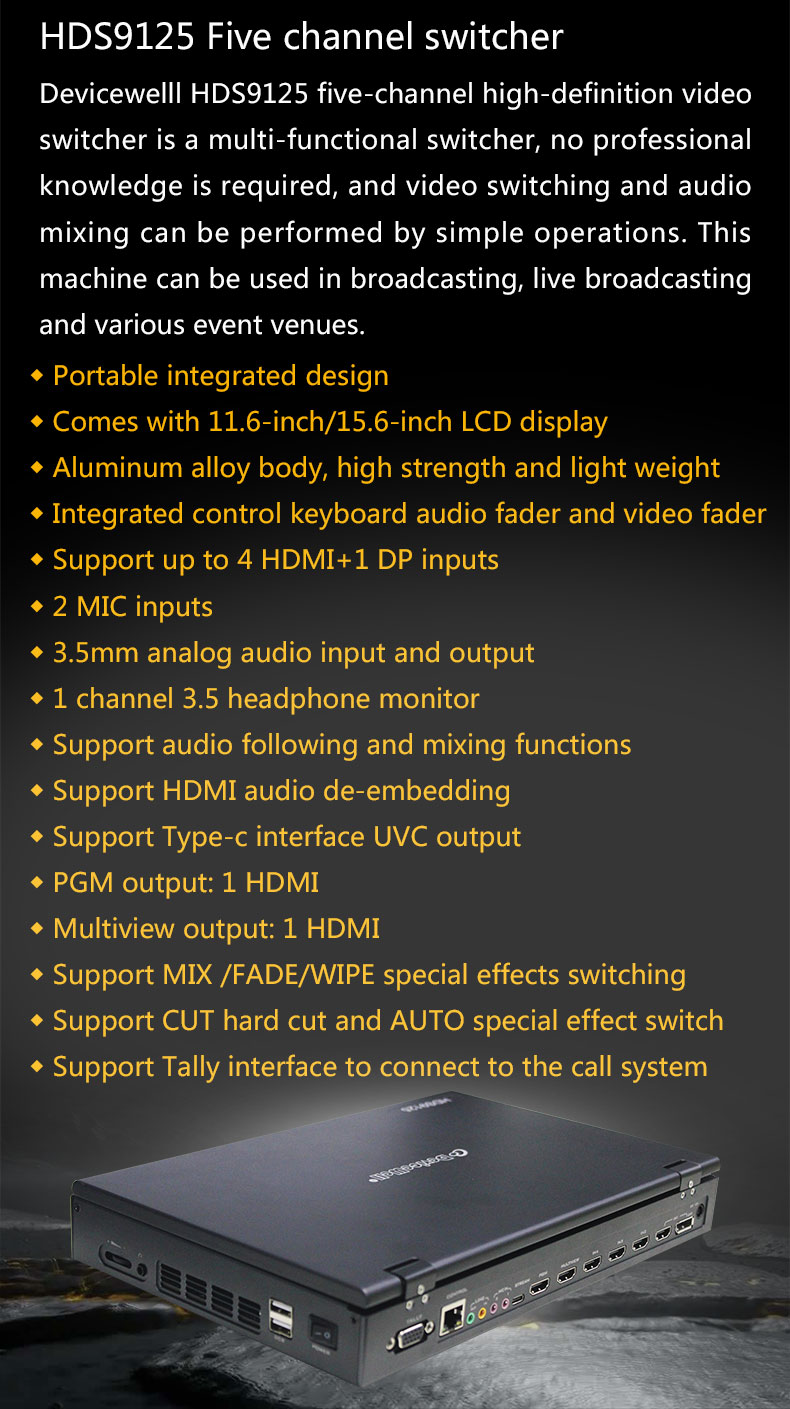

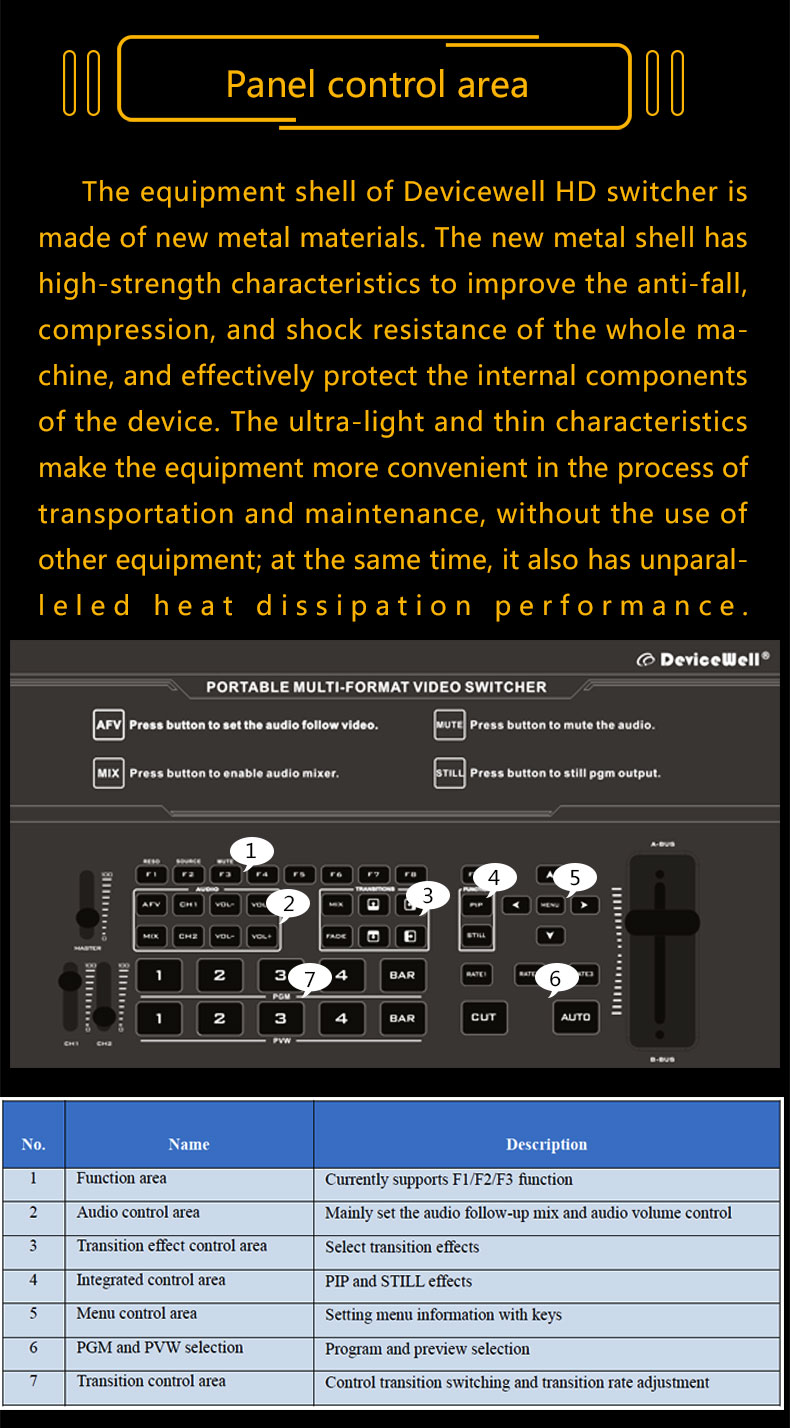

   The DeviceWell HD Video Switcher HDS9125 adopts a portable integrated design and comes with an 11.6-inch HD monitor screen, which can directly multiview output. Standard size: 285mm* 190mm*42.6mm, The equipment integrates common components of switcher such as multiview processor, special effect generator, audio processor, control keyboard and so on.

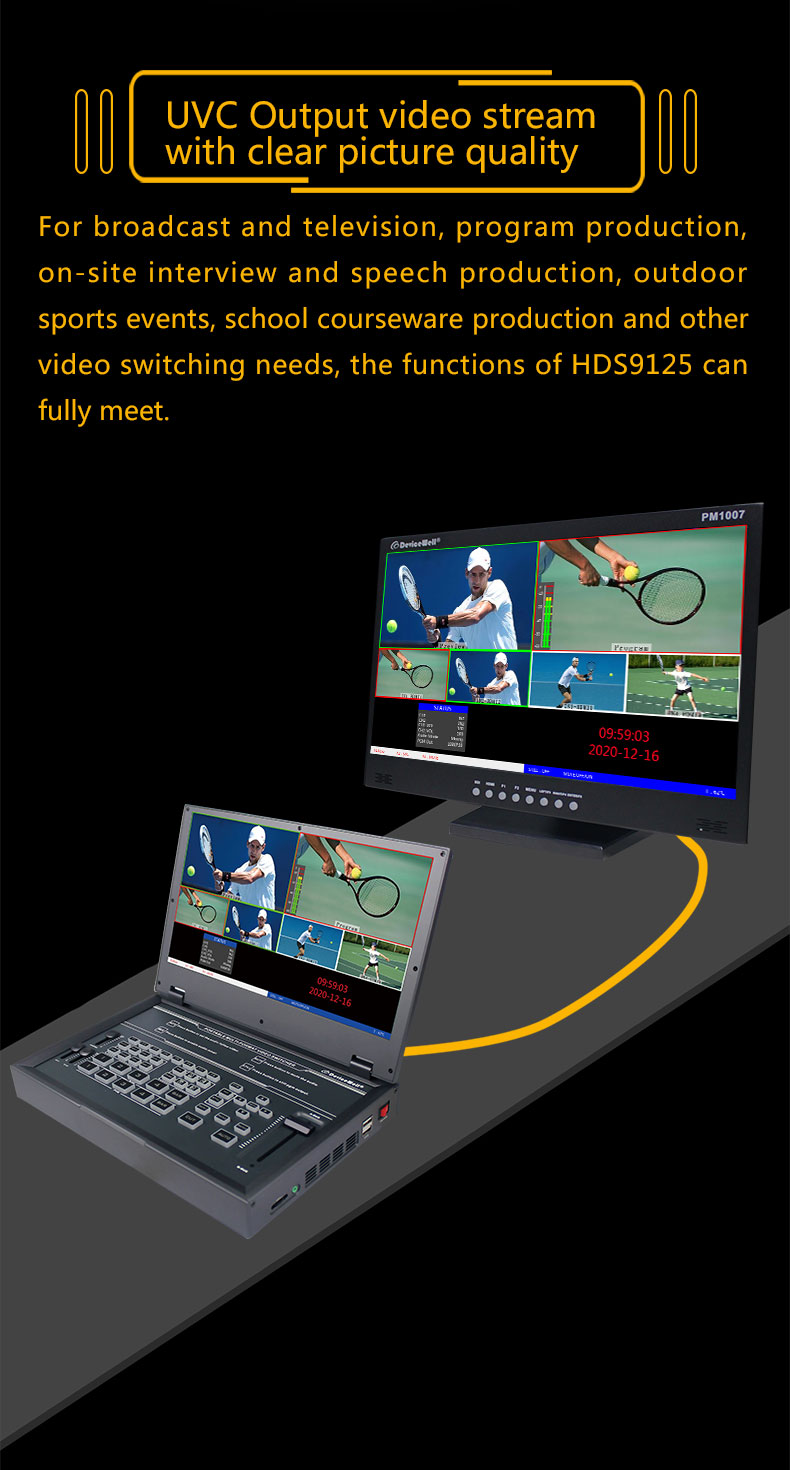

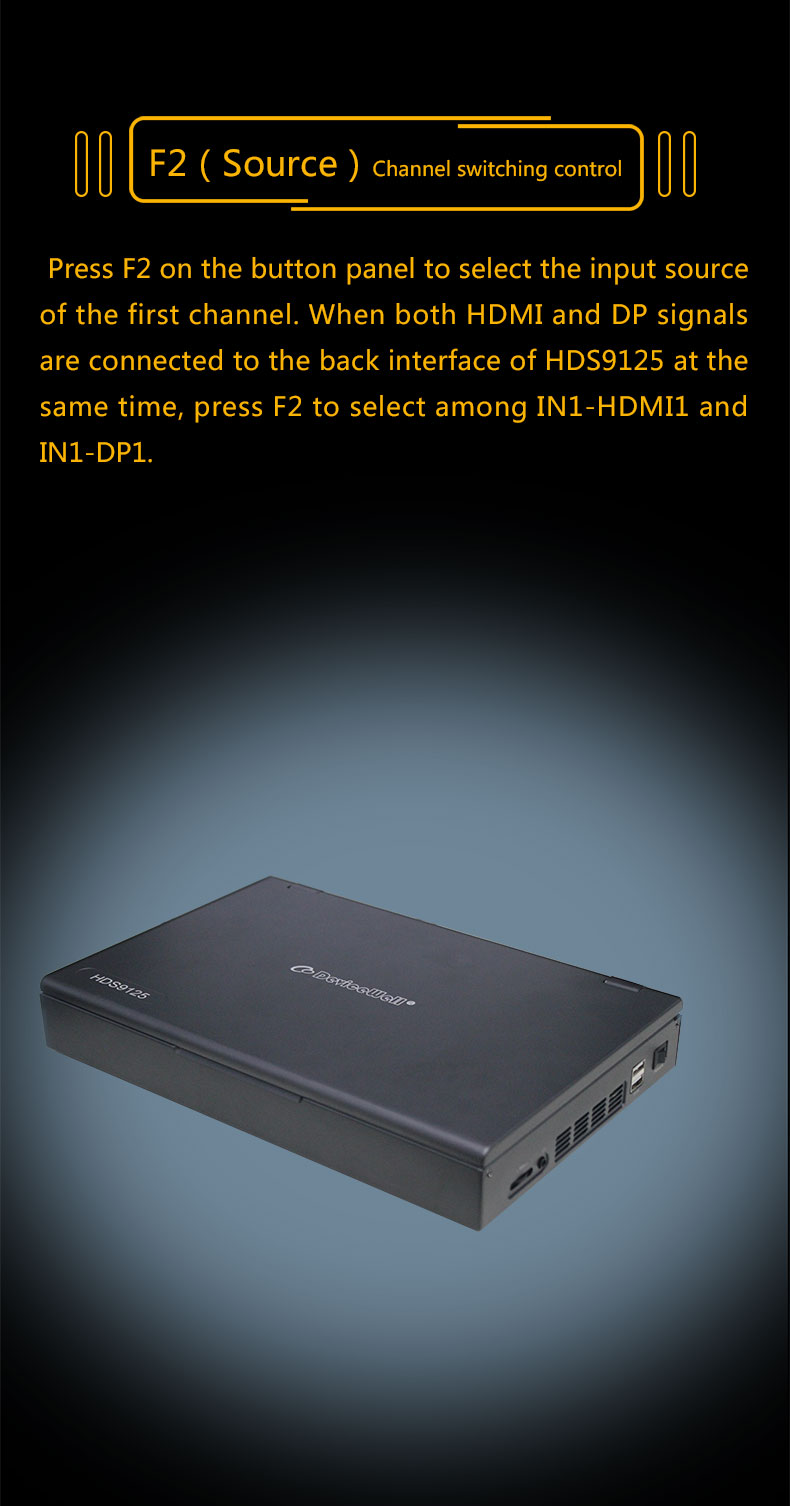

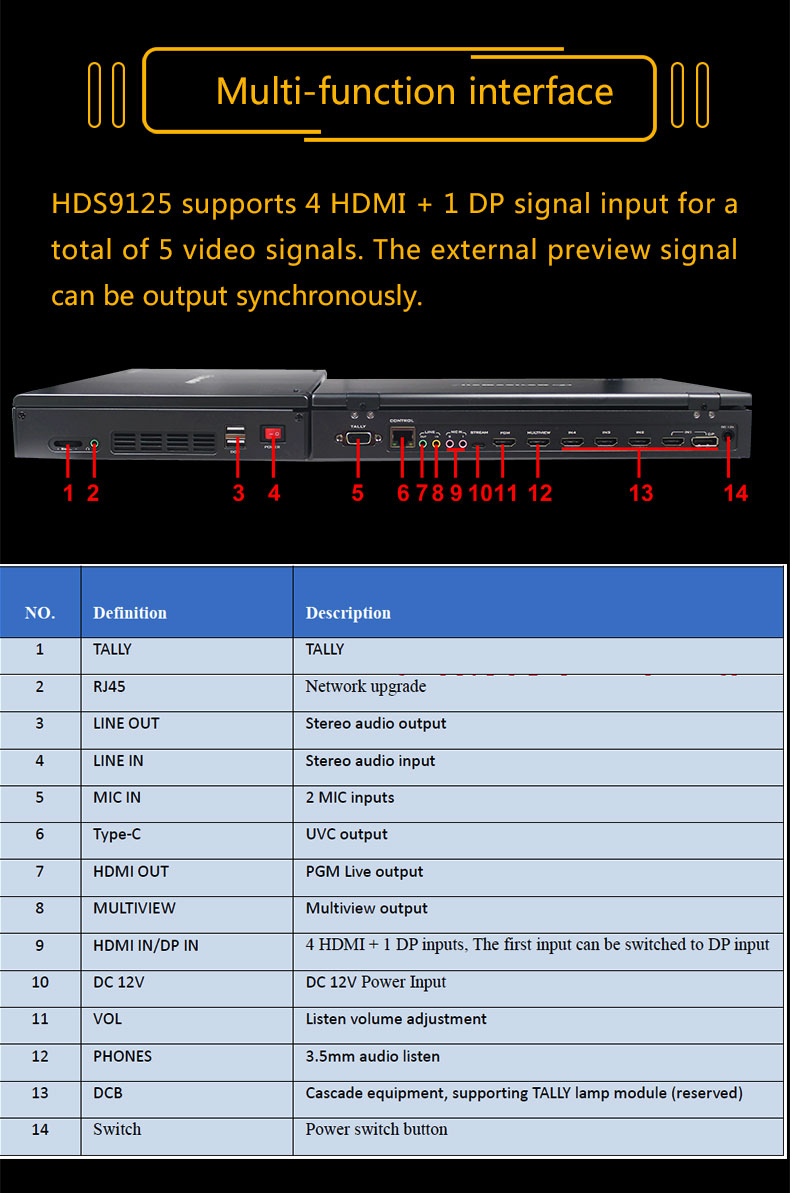

HDS9125 supports 4 HDMI + 1 DP signal input, a total of 5 video signals. The external preview signal can be output synchronously. HDS9125 supports HDMI embedded audio + external analog audio. After mixing, it can be embedded in the output HDMI signal or output from the analog port. The resolution of all input signals is automatically adapted, and the output signal resolution can be selected as required, which is quite flexible. For broadcast and television, program production, on-site interview and speech production, outdoor sports events, school courseware production and other video switching needs, the functions of HDS9125 can fully meet.



中帝威(Devicewell)·HDS9125 5-CH 11.6-inch monitor high-definition multi-camera broadcast station Manual Download

中帝威(Devicewell)·HDS9125 5-CH 11.6-inch monitor high-definition multi-camera broadcast station HD Photos Download
