A dedicated switcher for broadcast, TV and studios, it is the first choice for large-scale live broadcasts. The twenty-channel switcher integrates multiple control methods. Special effects and transition methods can be set through the keyboard. The built-in menu display function can set up the equipment more intuitively and efficiently. The joystick can control the distance and distance of the camera. The twenty-channel switcher is a switcher with 12 SDI  video signal inputs,  4 SDI outputs, and 4 HDMI output broadcast-grade video signals. The twenty-channel switcher is suitable for live performances, course recordings, and studio directing, etc. The switcher has a variety of functions. Such as multi-format video input with adaptive input resolution, analog balanced audio input and output, audio embedding and deembedding, mixing, TALLY, TF card recording, network port streaming, keying, RS422 and RJ45 control, etc. You can add LOGO, station logo, background animation and other materials through USB playback. With remote upgrade capabilities, users can perform video switching and audio mixing functions with additional effects through simple operations.   Support 12-CH SDI input MULTIVIEW output: 1 HDMI + 1 SDI PGM output: 3-CH HDMI+2-CH SDI Support 1 AUX custom output Support TF card recording Support RJ45 remote control Support DCB control Broadcast & TV standard tally interface Support GPI control Support network port push streaming Support inputs such as foot pedals and control handles Station logo and graphic and text overlay

Connect up to 12 SDI broadcast cameras

The 12-CH director station HDS6112 has 12 SDI video inputs, which can be used to connect multiple cameras to obtain multiple picture angles. All video sources, regardless of video standard, are synchronized and fed into the switcher. You can unleash the creative freedom of multi-camera live production to produce engaging interviews, commercials, theater productions, music performances, sports and more.

GPI control/Foot pedal/Control handle and other access

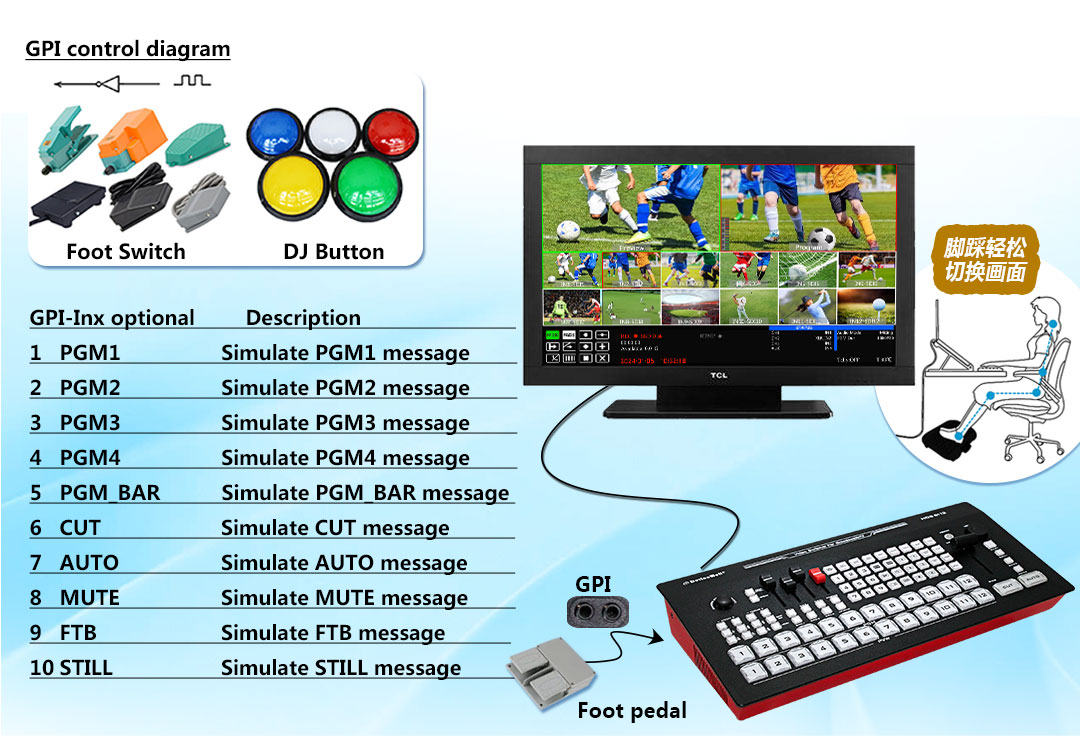

GPI custom interface facilitates users to remotely control and customize connected devices

Live streaming over Ethernet

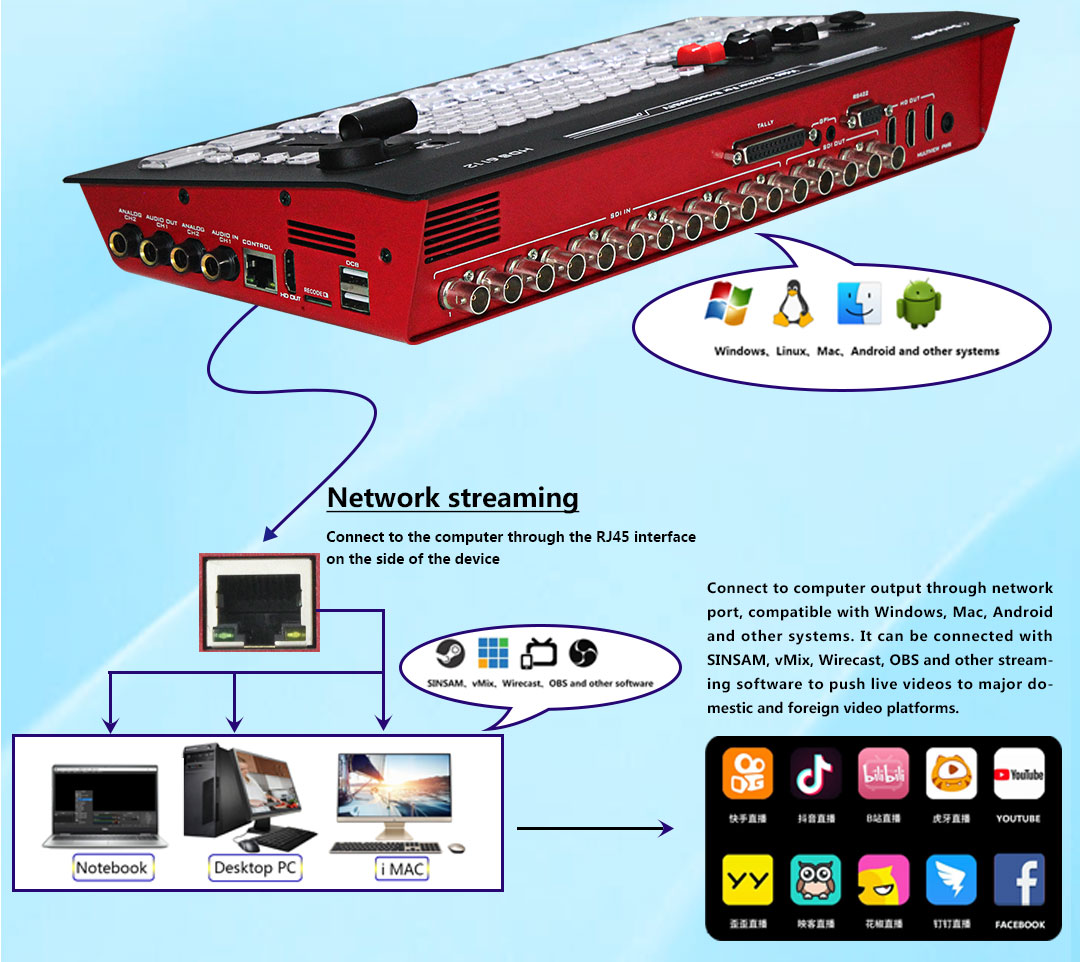

Live production is a quick way to get your show done, and you can stream it to a wide audience through live streaming platforms. Through the RJ45 interface, it can be connected to any computer and can be used with streaming software on various social media platforms! It is equipped with  12 SDI inputs , allowing you to deploy multiple cameras to cover various angles and capture wide-angle shots during the performance as well as close-ups of each performer. Or, you can connect to a computer with PPT slideshows, video clip playback, and websites, etc., which can be directly connected to achieve live streaming, allowing you to broadcast live on YouTube, Facebook, and Skype with higher quality without losing frames. Setup is simpler. Just select the live broadcast platform and enter the video source to start live broadcast!

Multi-user cascade operation

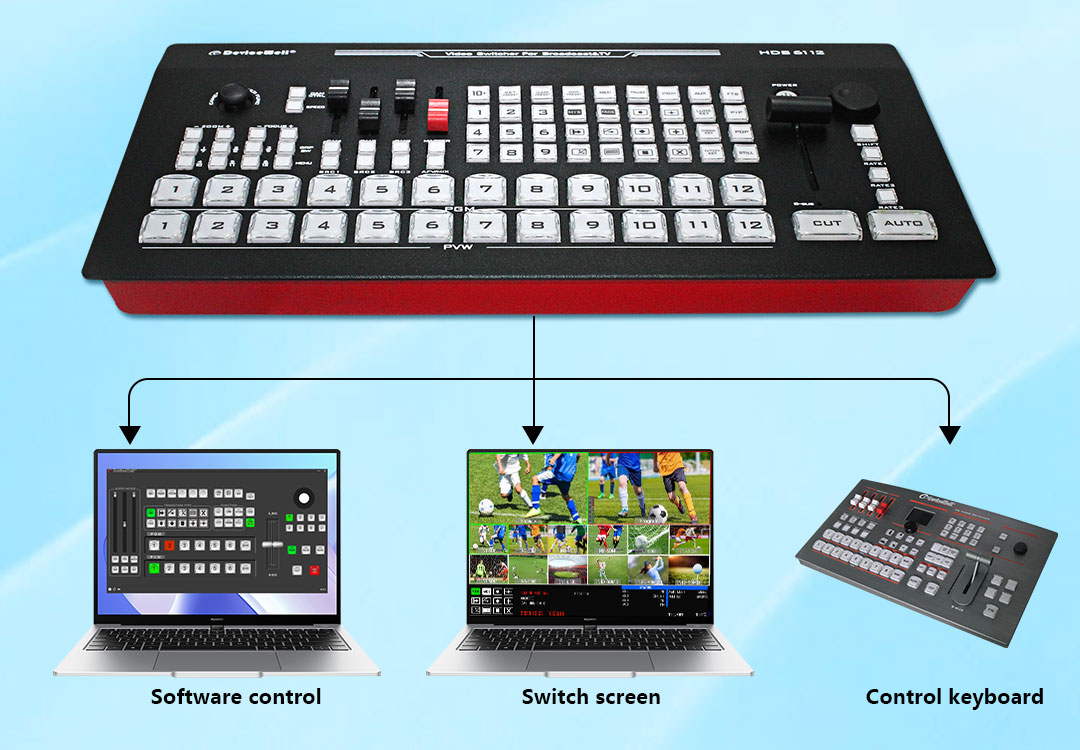

The production of large-scale live events, such as radio and television, program production, live production of interviews and speeches, outdoor sports events, etc., requires a production team with superb technology and a group of creative people to work seamlessly together. The switcher controls the switcher panel through the Ethernet interface. You can run the control software on your computer to allow staff to perform tasks such as multi-screen preview processor, special effects generator, audio processor, control keyboard, and camera control. In addition, you can also control the software remotely, no matter how far apart you are, you can still strategize! For professional users, the keyboard can be expanded and controlled through the DCB interface.

Button panel brings total control

The key panel of DeviceWell 12-CH switcher HDS6112 is equipped with a large-sized keyboard, which can provide 12 input options, and all keys are mechanical keys designed with industrial-grade standards and have a professional-grade feel. You can easily switch images through the button panel. Just select a signal source and then select CUT or AUTO. The switcher settings also provide a T-Bar direct switching mode. In this mode, just press the T-Bar to switch immediately. In addition to this, you can enable keyers and media players using the keys on the key panel. The full version of the switcher function can be obtained through the LCD menu. Scroll up and down the menu to select different settings and fully control the switcher! Of course, other options for controlling the switcher include using an external control panel or free control software.

Create impressive video effects and professional video production

Use Chroma key, Luma key, pattern keying and other technologies to add LOGO, station logo, graphics, text and animation to the live video or graphic background. Allows you to create dazzling effects on signal output, multiview monitoring, and program recording!



USB playback to add Logo, station logo, background animation, etc.



Powerful chroma key function, green screen/blue screen keying, switching background effects, create realistic virtual scenes.

Switch the blue or green background to the PVW, and then turn on the Chroma Key function. At this time, a parameter setting interface will appear in the menu bar. Use the buttons to select the background of your keying. After selection, you can use CUT/AUTO/T-bar to realize keying. At this time, the image you want to superimpose will appear on the PGM live screen.

Powerful luma key makes it easy to superimpose subtitle effects.

Switch the video or picture with white fonts on a black background to the PVW and turn on the Luma Key. At this time, a parameter setting interface will appear in the menu bar, and then use the CUT/AUTO/T-bar switch to superimpose the characters. Go to the PGM window.

With the powerful luma key, you only need to play PPT through your laptop to achieve the effect of a professional subtitle.

DeviceWell 12-CH video switcher HDS6112 uses the LOGO menu function to add specified effects, or superimpose corporate logos, monograms, etc. For example: TVs and large projection screens at the venue need to permanently present PPT report content; while the video footage viewed at the remote end requires multiple signals such as on-site cameras, PPT, and other materials. After signal processing by the switcher, It can take into account different broadcast viewing needs without using two sets of production equipment and personnel. When remote participants want to watch the conference content and the venue environment at the same time, the image and text overlay function of DeviceWell Video Switcher plays a very important role. According to the picture composition of the PPT content, on-site audiences or speakers can be appropriately arranged in a timely manner, and elements such as main products or trademarks are superimposed as needed, so that the output image can reflect key information while maintaining a simple and easy-to-read visual layout, making your corporate meetings or product launches unique.

More than 100+ creative transitions

DeviceWell live production switcher HDS6112 has a wide variety of transitions, including hard cut, mix, fade and wipe modes. HDS6112 has overlay functions such as LOGO, station logo, and background animation. Each transition takes effect instantly, and you have complete control over transition type, pattern, size, position and other functional properties. With these creative options, you'll be able to create your ideal show production and broadcast style, and you'll have the freedom to use a variety of special effects! Meet the video switching needs of radio and television, program production, live production of interviews and speeches, outdoor sports events, etc.

FADE transition effect

FADE effect, A gradually darkens the picture until it is completely black, and then gradually changes from black to B.



MIX transition effect

MIX effect gradually superimpose picture B on picture A, until at the end of the transition, the picture is completely replaced by picture B.

Logo overlay

Add icons, station logos, subtitles and other information to the live program output screen.

Wipe pattern

DeviceWell 12-CH switcher HDS6112 has built-in 10 buttons for special effects style conversion and wipe patterns. You can create more than 100 different styles of wipe transition effects! Transition between video sources using expanding circles, diamonds, squares, and more transition styles to gradually reveal the next video source. You can adjust the position, size, and quantity of these patterns.

The transition effects of broadcast-level switchers include hundreds of special effect wipes such as circles, diamonds, fans, plum blossoms, blinds, etc. Various special-shaped patterns, image positions, sizes, and quantities can be set. Often used in broadcasts of sports events.





Application diagram

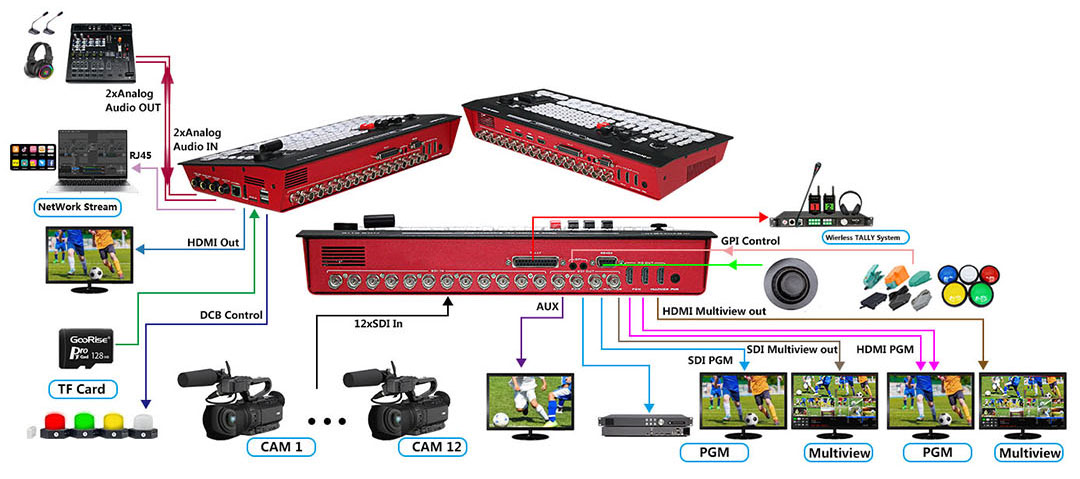

The 12-CH switcher HDS6112 is a switcher with 12 SDI video signal inputs, 4 SDI outputs, and 4 HDMI output broadcast-grade video signals. External preview signals can be output synchronously. The switcher supports HDMI embedded audio + balanced audio. After mixing, it can be embedded into the output HDMI signal or output from the balanced audio port. Such as multi-format video input with adaptive input resolution, analog balanced audio input and output, audio embedding and deembedding, mixing, TALLY, TF card recording, network port streaming, keying, RS422 and RJ45 control, etc. You can add LOGO, station logo, background animation and other materials through USB playback. With remote upgrade capabilities, users can perform video switching and audio mixing functions with additional effects through simple operations. Widely used in radio and television, high-definition digital medical industry, education and teaching, multimedia video conferencing, image transmission, large-scale multimedia high-definition display, outdoor large-screen display, large-scale stage display, sports events, military command and exercises, emergency command and control center, automation control Center and multimedia teaching and other fields.

Parameters



Product Name	HD Video Switcher
Video Signal Input	Input signal	12 SDI inputs
	SDI Rate	1.5G、3G
	Connector	Standard
	Reflection loss	>15dB 5MHz~3GHz
	Signal amplitude	800mV±10%(SDI)
	Impedance	75 Ω(SDI)
	Balance	Adaptive
	SDI input	12 x 10bit 720p、1080i、1080p
	SDI format	SMPTE 292M、SMPTE 296M、SMPTE 424M、SMPTE 425M A Grade、SMPTE 2081‑1、SMPTE 2081‑10、SMPTE 2082‑1 & SMPTE 2082‑10、SMPTE 2082‑12
	HD video input format	720p50、720p59.94、720p60 1080i50、1080i59.94、1080i60 1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p60
Video Signal Output	Video output	PGM output：2xSDI+3xHDMI Multi-screen output：1xSDI + 1xHDMI
	Multiview out	1x HDMI+1xSDI
	HD video output format	1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p50、1080p59.94、1080p60
	Screen display	12xSDI HD DISPLAY
	SDI video output	4 x 10bit 1080p
	HD video output	1920x1080
	Clock recovery	Support
Control Parameter	Remote control	GPI
	Connection port	3.5mm port
	Network control	UDP
	Connection port	RJ45,100M
General Parameter	power supply	12V/DC
	Power	<80W
	Size	360*176*54mm
	Weight	2 Kg
	Audio input	2-CH Analog Audio input
	Audio output	2-CH Analog Audio output
	Keying/Stream	YES
	TF card record	YES
	PIP/POP	YES
	Special effects	T-BAR/AUTO /CUT/ FTB/STILL/PATTERN KEY/BAR
	Transition	MIX /FADE/WIPE
	Camera control	MIX:12-WAY CAMERA CONTROL
	Screen display	12xSDI HD DISPLAY
	Control panel	Support on-site production, integration of a variety of buttons.
	Operating temperature	0℃~50℃ No condensation
	Storage temperature	-20℃~75℃
	Working humidity	20%~70%RH
	Storage humidity	0%~90%RH, No condensation
